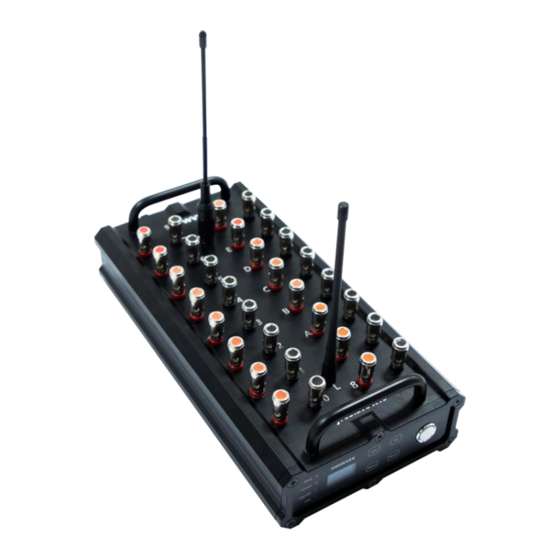

- Page 1 USER MANUAL PyroSlave X16 V1.0 2022/12 Showven Technologies Co., Ltd.
-
Page 3: Product Description
Foreword Δ Thanks for choosing SHOWVEN PyroSlave X16, we wish it will bring you lots of exciting moments. Please read the following manual carefully before operating this product. Operate according to instructions is very important for safety, and can elongate the service life of the machine Strictly follow the instruction in the manual when operate PyroSlave X16. -
Page 4: Technical Specifications
RESISTANCE TEST: YES BATTERY: 4 * 18650 cell, 4.2V, 2500mAh per piece OPERATION TIME: 60h, sleep mode 2 weeks, wired communication non-stop CHARGING CONTROL: A PyroAdaptor support 25 units PyroSlave X16; CHARGING TIME: Appr. 6h WATERPROOF LEVEL: IP65 MINIMUM FIRING INTERVAL: 10ms PyroSlave X16 Δ... -
Page 5: Operation Panel
Operation Panel 1. LED Display Area Sleep: Sleep state indicator light; blink every 3s in sleep mode, OFF in normal mode Armed: Ignition state indicator light; stays ON when received ignition or pre-ignition commands High/RX: High-frequency signal receiving indicator light. Blink once every time received high- frequency signal Low: Low-frequency signal receiving indicator light. -
Page 6: Menu Setup
Menu Setup Press “MENU” to switch through setup menu Menu Range Default Explanation Address 00~FF Address setup For wireless communication, FXcommander ID and Slave ID must be the same. For fast setting, Customer Customer ID 0000~FFFF 0102 ID can be adjusted by first two digits and last two digits separately. - Page 7 2. Button Functions Menu: Switch interface to setup parameter Up: Parameter Up Down: Parameter Down Save: Confirm and save parameters Note: screen display will switch to main interface if there is no operation in 15s. 3. Connectors Region LOAD: Software update interface BUS OUT: PBUS output (2pin negative, 3pin positive) POWER IN: 100-240VAC, 50~60Hz power input 4.
- Page 8 Turn on FXcommander, enter “Setting” interface find “wireless pyro setting”, click enter we can enter “Wireless setting” interface, please set the same “Channel” and “Customer ID” for FXcommander as slaves. Enter "Check Slave" interface of FXcommander to check the igniter’s connection status. Switch ON “Pyro Arm”.
-
Page 9: Wired Operation
fire. Press and hold “Deadman” on FXcommander, and press “Fire” to firing current CUE manually. After firing, PyroSlave will display the triggered igniter position on screen. PyroSlave “Sleep” and “Wake-up” setting. In order to extended the battery life, we can set the PyroSlave to “Sleep”... -
Page 10: Battery Installations
Important Notice: When use wired mode, please pay attention to line loss issue. The bus current displays on PyroAdaptor should be controlled within 2A in Transmit Mode. The more the PyroSlaves, the greater the bus current. The communication current of a single slave is about 0.01A. If the cable is too long or too thin, the bus voltage may drop below 12V and cause communication failure. - Page 11 Important Notice: Pay attention to the positive and negative polarity of the battery when installing the battery After install the battery please use PyroAdaptor to charging it to fully charge the battery. If the battery voltage fluctuates greatly during charging, it means a certain battery cell is faulty. In order to find out the faulty battery cell, please measure the voltage of each battery after charging for a long period of time, the faulty battery with voltage less than 3V.
- Page 12 The PyroSlave with IP65 waterproof level and can be used in rain. But please do NOT soak in water. Due to the output terminals are exposed, it may with poor ignition or false triggering in rain, so for outdoor use please wrap the PyroSlave with PVC plastic film to prevent rainwater from immersing. 6.
-
Page 13: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 14 Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
