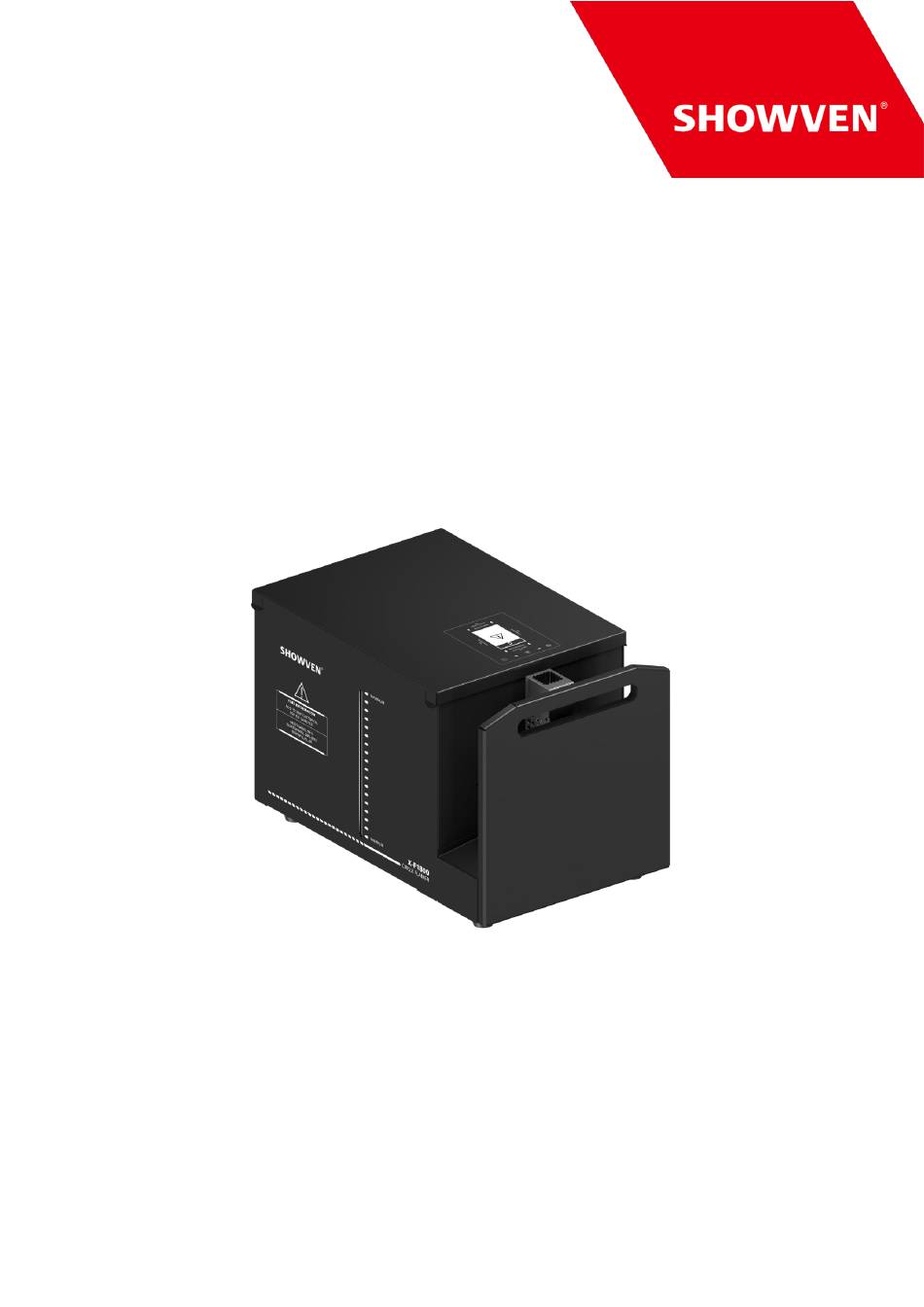

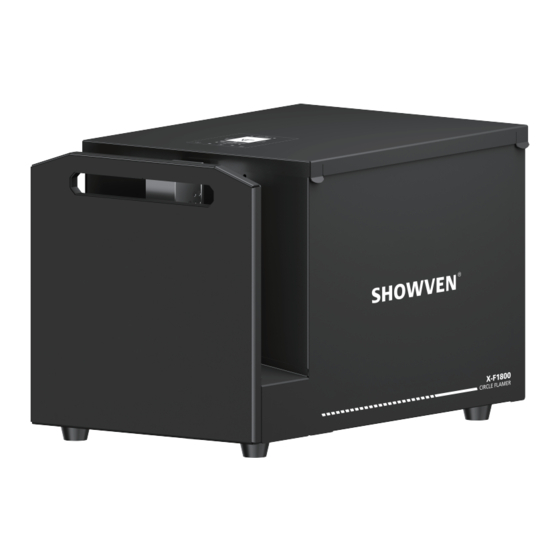

- Page 1 USER MANUAL CIRCLE FLAMER X-F1800 V2.1 2022/09 Showven Technologies Co., Ltd.
- Page 3 Before connect the power cable, communication DMX cable should well connected and ensure the command keep at firing OFF status. And safety switch on CIRCLE FLAMER X-F1800 stay at TEST MODE. Before power on the machine, please check carefully the safety distance and make sure it meets the requirements in this manual.
- Page 4 Double electromagnetic valves design for additional safety Double pump ensure stable pressure Fitted with 9-60V pyro signal interface, compatible with fireworks firing system Neutrik® powerCON TRUE1 in/out, Neutrik® 3-pin & 5-pin DMX in/out Compatible with SHOWVEN original host controller Technical Specifications Δ MODEL: X-F1800 DIMENSION: 590×...
- Page 5 Diagram of bottom panel Rear Panel 1. LCD screen operate panel 2. Safety Lock 3. Indicator Light 4. DC 5V output 5. 3-pin DMX IN/OUT 6. 5-pin DMX IN/OUT 7. Power IN/OUT 8. Fuse 9. ON/OFF switch 10. 12V Battery Power Input 11.
- Page 6 Operation Panel Δ 1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal ERR: Light on when there is an error PUMP: Light on when pump is running 2. Button Functions: MENU: Switch interface to setup parameter;...
- Page 7 6. Error Message Error Message Why it appears Reason / How to remove Pressurize for 8s, if pressure value No fuel, pump failure, pipeline fuel leakage etc E1 Pressure Err failed to reach target value reason, please check accordingly Depressurize for 2.5s, if pressure E2 P Relief Err Pressure release valve failure value ≥...
- Page 8 Safety lock located at USER MODE, pressure 5. Jet Valve 1 relief valve on, then related jet valve will be on 6. Jet Valve 2 and off for 3 times. Ext Ignite OFF / ON Trigger through 9-60V Pyro igniter signal Set Ext Sequence 1~88 Preset sequence triggered by pyro signal...
- Page 9 CIRCLE FLAMER X-F1800 Firing Sequences Δ CIRCLE FLAMER X-F1800 has 88 preset sequences, operator use related channel DMX value or sequence No. to access certain sequence. Below, you can find sequence list and single ignitions. Single Ignition Sequence List...
- Page 10 Step 11>8>5 SHORT flame Step sequence R -> L 0.92s 87-89 Step 6>10 SHORT flame Step sequence L -> R 0.75s 90-91 Step 10>6 SHORT flame Step sequence R -> L 0.75s 92-94 Step 4>6>8>10>12 SHORT flame Step sequence L -> R 1.27s 95-96 Step 12>10>8>6>4...
- Page 11 8(0° ) Single Ignition LONG flame Static max. 8s 227-255 DMX CONTROL Δ CIRCLE FLAMER X-F1800 occupies 6 channels. Channel Function Value 0~255: angle change from -105° to 105° Manual Angle setup 128: straight upward (0° ) Manual Nozzle Waving...
- Page 12 0-49 50-200 201-255 Mode Depressurize Mode Pressurize Mode Depressurize Mode Control with SHOWVEN Host Controller ZK6200/ZK6300 Δ If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the CIRCLE FLAMER X-F3600, please set on Host Controller. The setting step is:...
- Page 13 1. Safety Distance Definition and Instructions Safety distance for CIRCLE FLAMER X-F1800 divided into two parts safety radius around machine (a) and safety distance at firing direction (b). No person and flammable materials are allowed to stay inside the safety isolation zone when flamer was armed.
- Page 14 There is direction explanation on top panel of CIRCLE FLAMER X-F1800 as show above picture. 1. 1 to 15 is the firing angle of CIRCLE FLAMER X-F1800, Far Right is position 15, Middle is position 8, Far Left is position 1.
- Page 15 New CIRCLE FLAMER X-F1800 supplied with a nozzle M which generate up to 10m flame. b) Horizontal installation is preferred for CIRCLE FLAMER X-F1800. If need to install CIRCLE FLAMER X- F1800 in angles, please turn the TIP Setting to OFF status first. X-F1800 with maximum tilt angle of 45°...
- Page 16 If control by DMX, follow below steps: a) Connect a power cable to the POWER IN socket of CIRCLE FLAMER X-F1800. Connect the other end of power cable to the power source. Make sure power supply in consistent with the rated voltage of the equipment, and the socket must well grounded.
- Page 17 10. Power OFF a) Power OFF DMX console b) Switch safety switch of CIRCLE FLAMER X-F1800 to TEST MODE c) Power OFF CIRCLE FLAMER X-F1800 d) Unplug power cable, DMX cable. Nozzles and Nozzle Replacement Δ...
- Page 18 Battery Recommendation Δ CIRCLE FLAMER can be driven by battery, for use of Battery power supply: CIRCLE FLAMER X-F1800 with stable internal circuit design, please support X-F1800 with battery voltage higher than 12V. The driving speed of motor won’t change because of the decrease of battery power supply.
- Page 19 Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
- Page 20 Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
