USER MANUAL
CIRCLE FLAMER
X-F3600
V3.1
2024/06
Showven Technologies Co., Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-F3600 and is the answer not in the manual?

Questions and answers

Related Manuals for Showven X-F3600

Summary of Contents for Showven X-F3600

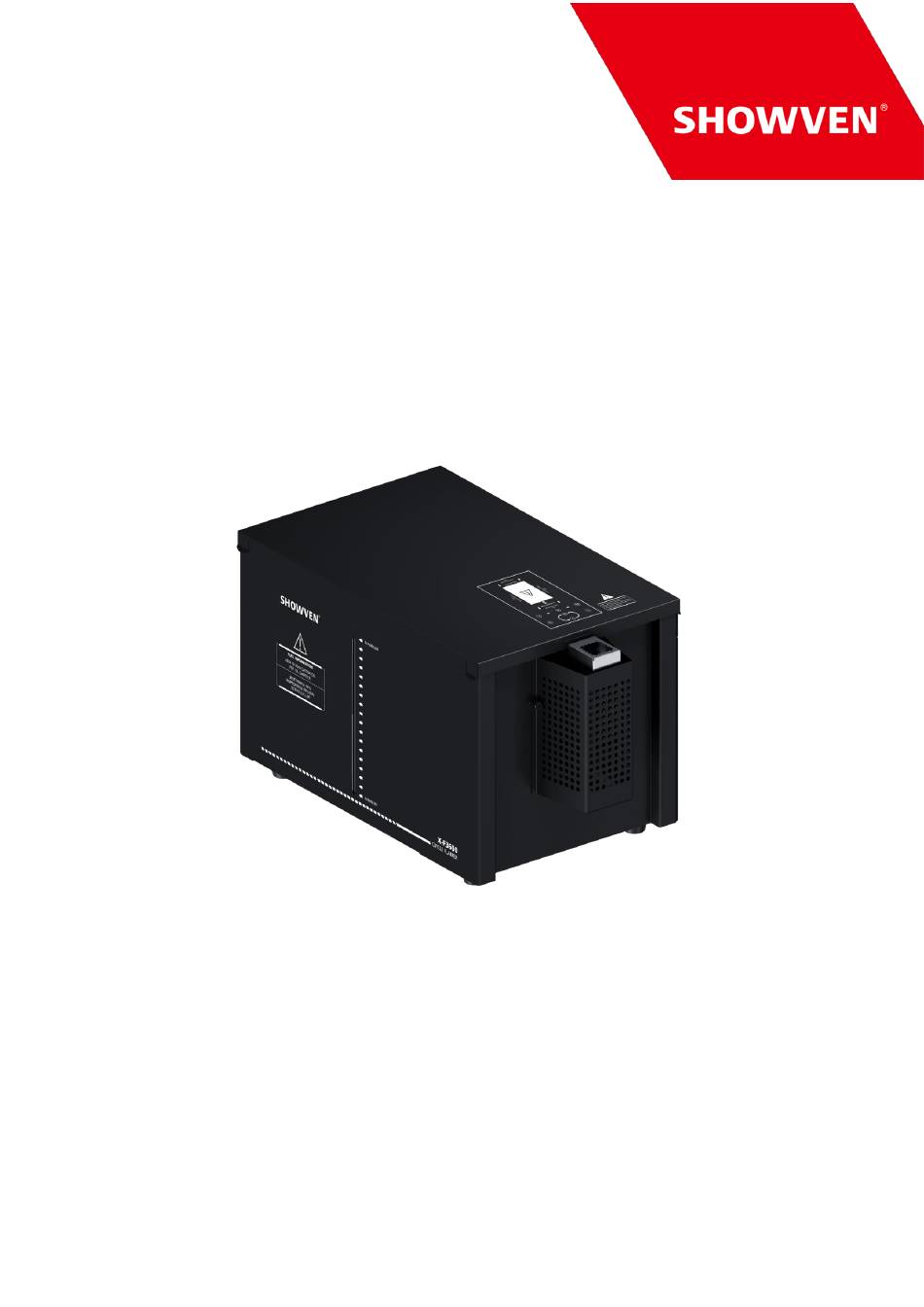

  • Page 1 USER MANUAL CIRCLE FLAMER X-F3600 V3.1 2024/06 Showven Technologies Co., Ltd.
  • Page 3 Before connect the power cable, communication DMX cable should well connected and ensure the command keep at firing OFF status. And safety switch on CIRCLE FLAMER X-F3600 stay at TEST MODE. Before power on the machine, please check carefully the safety distance and make sure it meets the requirements in this manual.

  • Page 4: Functional Characteristics

    Functional Characteristics Δ Original innovation introduced by SHOWVEN Full cycle and half cycle mode switchable Up to 182 preset firing sequences Nozzle front design, safer for operator Stainless steel nozzle, reliable and durable Safety lock with switchable test mode Double electromagnetic valves design for additional safety...
  • Page 5 Diagram of bottom panel Rear Panel 1. LCD screen operate panel 2. Safety Lock 3. Indicator Light red 4. 3-pin DMX IN/OUT 5. 5-pin DMX IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with DC5V power supply) 6.

  • Page 6: Operation Panel

    Operation Panel Δ 1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal ERR: Light on when there is an error PUMP: Light on when pump is running 2. Button Functions: MENU: Switch interface to setup parameter;...
  • Page 7 5. Alert Message: Alert Message Why it appears How to remove Safety Switch at TEST MODE Switch to USER MODE E0 Test Mode Factory mode Switch to Normal mode E0 Factory Mode Invert function ON Set Invert to OFF E0 Invert On Fire Forbidden ON Set Fire Forbidden to OFF E0 FireForbidden...
  • Page 8 Reset default parameter settings Full Cycle Mode Δ 1. Firing Angles: CIRCLE FLAMER X-F3600 with 360° firing angles, below schematic shows firing angles from Audience Side view. 1080° (360° X3) is divided into 72 projection directions, the angle NO. as below:...
  • Page 9 1440ms 3. Sequence list: Circle Flamer X-F3600 with more than 182 kind of preset firing sequences, 94 kind of firing sequences under full cycle mode. Operator use related channel DMX value or sequence No. to access certain sequence. Sequence list as below:...
  • Page 10 15° Single ignition SHORT flame 0.04s 0.19s 30° Single ignition SHORT flame 0.04s 0.19s 8-10 45° Single ignition SHORT flame 0.04s 0.19s 11-12 60° Single ignition SHORT flame 0.04s 0.19s 13-15 75° Single ignition SHORT flame 0.04s 0.19s 16-17 90° Single ignition SHORT flame 0.04s 0.19s...
  • Page 11 Step Sequences List: Nozzle Sequence CH5 DMX Ignition angle NO. Description movement Duration Value 30° -SHORT flame Step Step from M2-M3 Clockwise 2.40s 125-127 sequence 30° -SHORT flame Step Step from M2-M1 Anticlockwise 2.40s 128-130 sequence 45° -SHORT flame Step Step from M2-M3 Clockwise 1.70s...
  • Page 12 Half Cycle Mode Δ 1. Firing Angles: In half cycle mode, CIRCLE FLAMER X-F3600 with firing angle of ± 105° , below schematic shows firing angles from Audience Side view. ± 105° is divided into 15 firing directions as below:...
  • Page 13 3. Sequences list: Circle Flamer X-F3600 with more than 182 kind of preset firing sequences, 88 kind of firing sequences under half cycle mode. Operator use related channel DMX value or sequence No. to access certain sequence.
  • Page 14 -30° Single Ignition LONG flame 0.34s 0.56s 54-56 -15° Single Ignition LONG flame 0.34s 0.56s 57-58 0° Single Ignition LONG flame 0.34s 0.56s 59-61 15° Single Ignition LONG flame 0.34s 0.56s 62-63 30° Single Ignition LONG flame 0.34s 0.56s 64-66 45°...
  • Page 15 8(0° ) Single Ignition LONG flame Static max. 8s 227-255 DMX CONTROL Δ CIRCLE FLAMER X-F3600 occupies 6 channels. Channel Function Value 0~255: angle change from -105° to 105° Manual Angle setup 128: straight upward (0° ) Manual Nozzle Waving...
  • Page 16 0~49: Depressurize (Emergency Stop) Mode setup 50~200: Pressurize 201~255: Depressurize (Emergency Stop) Channel 1 (CH1) - Full Cycle Mode: Manual Angle Setup Angle No. Angles DMX Value 0° 15° 30° 45° 60° 75° 90° 105° 120° 135° 150° 165° 180° 195°...
  • Page 17 -60° -45° -30° -15° 0° 15° 30° 45° 60° 75° 90° 105° 1. The first channel controls the firing angle. It defines to which angle the nozzle of CIRCLE FLAMER move to. The angle can be chosen anywhere between -105° to +105° (DMX value 0 to 255) 2.

  • Page 18: Operation

    Control with SHOWVEN Host Controller ZK6200/ZK6300 Δ If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the CIRCLE FLAMER X-F3600, please set on Host Controller. The setting step is: Press “F3” on Host Controller – find “Device” – choose the right device “CIRCLE FLAMER”.
  • Page 19 When use half cycle mode, please refer to the safety distance on CIRCLE FLAMER X-F1800 manual. Safety distance in windy environment The safety isolation zone radius (a) increase with wind direction and wind speed (v, m/s). The safety distance in windy conditions can be calculated as below: For Nozzle L: a = 2.5 + v;...
  • Page 20 There is direction explanation on top panel of CIRCLE FLAMER X-F3600 as show above picture. 1. 1 to 15 is the firing angle of CIRCLE FLAMER X-F3600, Far Right is position 15, Middle is position 8, Far Left is position 1.
  • Page 21 DMX address for each unit of machine. e) Connect a DMX cable to the DMX IN socket of first unit of X-F3600, another head of this DMX cable connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.
  • Page 22 Test the ignition function of CIRCLE FLAMER X-F3600, we can check whether the igniters of each unit of X-F3600 is working fine. Due to the safety switch is stay at TEST MODE the pump won’t work, there will be only ignition while no fuel spray out, so no flames generated.
  • Page 23 Nozzle Replacement Wrench Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle socket with air gun (air compressor), change a different nozzle and install it. Nozzle Installation available in new design Please assemble the stailess steel gasket(RMSMA530), O ring and nozzle main part according to below picture.

  • Page 24: Battery Recommendation

    Waterproof cover installation Δ Hang the waterproof cover on the rear panel side of the top cover and fix it with 2pcs of M5*10 screws as shown in below picture. Battery Recommendation Δ CIRCLE FLAMER can be driven by battery, for use of Battery power supply: CIRCLE FLAMER X-F1800 with stable internal circuit design, please support X-F1800 with battery voltage higher than 12V.

  • Page 25: Warranty Instructions

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN.
  • Page 28 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
