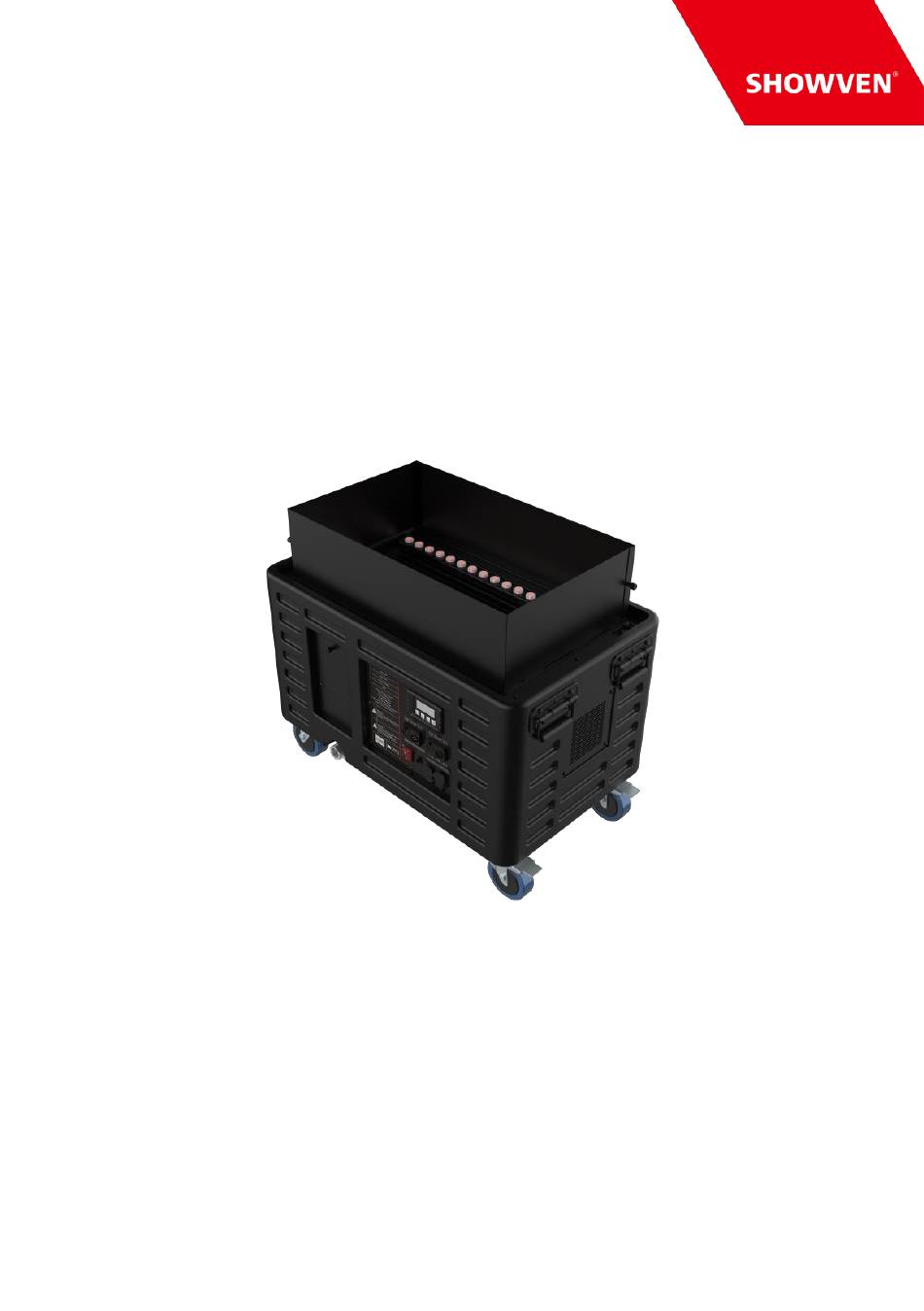

- Page 1 USER MANUAL Fake Flame X-SH1 V1.0 2024/10/01 SHOWVEN Technologies Co., Ltd.
- Page 2 TV show etc occasions where a flame effect is desired while real flame is not allowed. Technical Specifications Δ MODEL: Fake Flame X-SH1 DIMENSION: 760 460 660mm WEIGHT: 35kg VOLTAGE: AC 220-240V / AC 100-120V,50/60Hz...

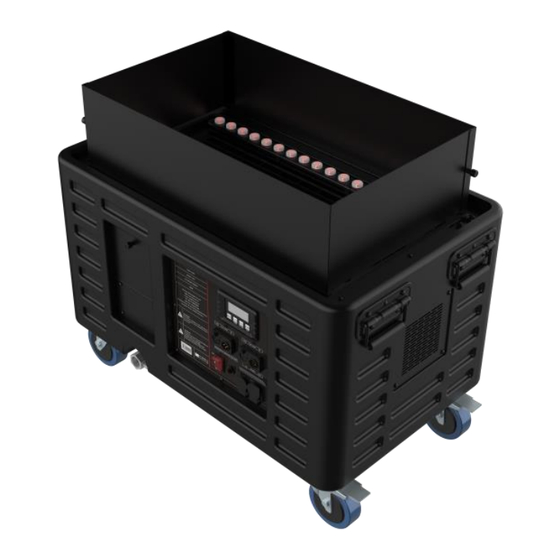

- Page 3 Product Overview Δ 1. Baffle plate 2. Atomizing water tank filling port 3. Atomizing water tank drain 4. 3-PIN DMX 5. Power switch 6. Fuse 7. 5-PIN DMX 8. Power Input 9. LCD display 10. Casters 11. Air inlet 12. Handle 13.
- Page 4 Operation Panel Δ 1. Control button area MENU: switch through setup menu +: Parameter up; multiplex “TIMER” (fake flame output time) -: Parameters down; multiplex “VOLUME” (fake flame output start) ENTER: confirm and save parameters (screen will blink once when save successfully); multiplex “STOP”.
- Page 5 Valve / LED plate Displays ultrasonic sampling Sensor Disp values and their corresponding quantities DMX Channel Δ ® SHOWVEN occupies 4 functional channels. DMX Value Channel Function 0-5: OFF Flame size 6-255: Flame size increase as dmx value increase 0-5: OFF...
- Page 6 Wireless Control Δ Our Fake Flame can be controlled wirelessly with our FXmote. Before use the wireless function please make sure machine was ready, wireless status was ON, and no DMX cable connection Operation step: 1. Turn on FXmote, press “MENU” on FXmote, set “DEVICE” to “FOG”; 2.
- Page 7 Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. ® Invoice is necessary when applying for maintenance service from SHOWVEN...
- Page 8 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
