Manual
LioN-P multiprotocol
Digital I/O modules and IO-Link master:
0980 ESL 390-xxx ... 0980 ESL 393-xxx

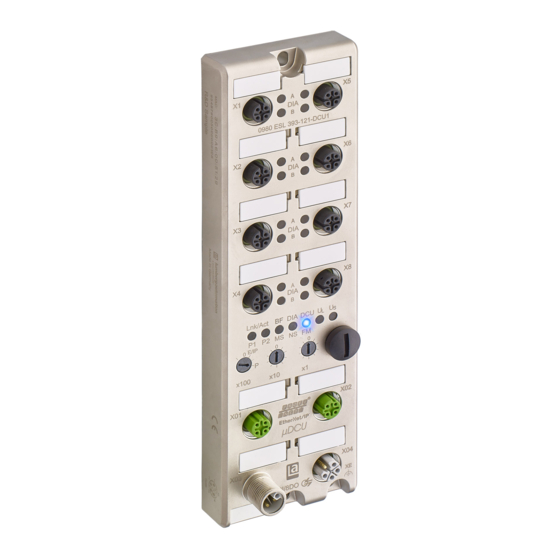

0980 ESL 390-121-DCU1
0980 ESL 393-121-DCU1
0980 ESL 199-121
0980 ESL 199-122
0980 ESL 199-331
0980 ESL 199-332
0980 ESL 398-121
0980 ESL 399-121
Manual LioN-P multiprotocol
Technical Support
Version 2.1 03/2021
lumberg-automation-support.belden.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Belden lumberg automation 0980 ESL 390-121-DCU1
Summary of Contents for Belden lumberg automation 0980 ESL 390-121-DCU1
- Page 1 0980 ESL 390-xxx ... 0980 ESL 393-xxx 0980 ESL 390-121-DCU1 0980 ESL 393-121-DCU1 0980 ESL 199-121 0980 ESL 199-122 0980 ESL 199-331 0980 ESL 199-332 0980 ESL 398-121 0980 ESL 399-121 Manual LioN-P multiprotocol Technical Support Version 2.1 03/2021 lumberg-automation-support.belden.com...
-
Page 2: Table Of Contents
Contents Contents 1 About This Manual 1.1 General Information 1.2 Version information 2 About the LioN-P module series 3 Multiprotocol 4 Protocol settings for Digital I/O modules ® 4.1 EtherNet/IP – PROFINET – EtherCAT 4.1.1 EtherNet/IP 4.1.2 PROFINET ® 4.1.3 EtherCAT 4.2 Factory reset 5 Protocol settings for IO-Link master 5.1 EtherNet/IP –... -
Page 3: About This Manual
– Lumberg Automation™ – Im Gewerbepark 2 D-58579 Schalksmühle Germany lumberg-automation-support.belden.com www.lumberg-automation.com catalog.belden.com Belden Deutschland GmbH – Lumberg Automation™ – reserves the right to make technical changes or changes to this manual at any time without notice. Manual LioN-P multiprotocol Version 2.1 03/2021... -
Page 4: Version Information
1.2 Version information 1 About This Manual 1.2 Version information Index Created Changed Version number Version 1.0 Version 1.1 Date February 2016 September 2016 Index Changed Created Version number Version 1.2 Version 2.0 Date February 2017 January 2020 Index Changed Changed Version number Version 2.1... -
Page 5: About The Lion-P Module Series
2 About the LioN-P module series 2 About the LioN-P module series LioN modules (Lumberg Automation™ Input/Output Network) function as the interface in an industrial fieldbus system: They enable a central controller on the management level to communicate with the decentralized sensors and actuators on the field level. -
Page 6: Multiprotocol
3 Multiprotocol 3 Multiprotocol The multiprotocol modules allow you to select different protocols for communication within a fieldbus system. In this way the multiprotocol modules can be integrated into different networks without it being necessary to purchase modules specific for each protocol. This technology also gives you the option to use the same module in different environments. -
Page 7: Protocol Settings For Digital I/O Modules
4 Protocol settings for Digital I/O 4.1 EtherNet/IP – PROFINET – modules EtherCAT ® 4 Protocol settings for Digital I/O modules 4.1 EtherNet/IP – PROFINET – EtherCAT ® The following Digital - I/O modules support multiprotocol application for the protocols EtherNet/IP (E/IP), PROFINET (P) and EtherCAT (EC): ®... - Page 8 4.1 EtherNet/IP – PROFINET – 4 Protocol settings for Digital I/O modules EtherCAT ® Protocol x100 EtherNet/IP PROFINET – – – – EtherCAT ® Table 2: Assignment of the rotary encoding switches for each protocol The setting you make to select a protocol is described detailed in the protocol- specific sections.
-
Page 9: Ethernet/Ip
4 Protocol settings for Digital I/O 4.1 EtherNet/IP – PROFINET – modules EtherCAT ® 4.1.1 EtherNet/IP If you decide to use EtherNet/IP as a protocol, use the first rotary encoding switch to set the 100 value of the last octet of the IP address of the module. Using the first switch, a value from 0 to 2 can be set for the IP address. -
Page 10: Factory Reset
4.2 Factory reset 4 Protocol settings for Digital I/O modules 4.2 Factory reset A factory reset restores the original factory settings and thus resets the changes and settings you have made up to that point. It also resets the protocol selection. To perform a factory reset, set the first rotary encoding switch (x100) to 9, the second (x10) to 7, and the third (x1) also to 9. -
Page 11: Protocol Settings For Io-Link Master
5 Protocol settings for IO-Link master 5.1 EtherNet/IP – PROFINET 5 Protocol settings for IO-Link master 5.1 EtherNet/IP – PROFINET The following LioN-P IO-Link master modules support multiprotocol application for the protocols EtherNet/IP (E/IP) and PROFINET (P): 0980 ESL 199-121 0980 ESL 199-122 0980 ESL 199-331 0980 ESL 199-332... -
Page 12: Ethernet/Ip
5.1 EtherNet/IP – PROFINET 5 Protocol settings for IO-Link master Protocol x100 EtherNet/IP PROFINET – – Table 3: Assignment of the rotary encoding switches for each protocol The setting you make to select a protocol is described detailed in the protocol- specific sections. -
Page 13: Profinet
5 Protocol settings for IO-Link master 5.2 Factory reset 5.1.2 PROFINET If you decide to use PROFINET, set the first rotary encoding switch to the value of "P". For more information use the LioN-P PROFINET IO-Link manual. 5.2 Factory reset A factory reset restores the original factory settings and thus resets the changes and settings you have made up to that point.
