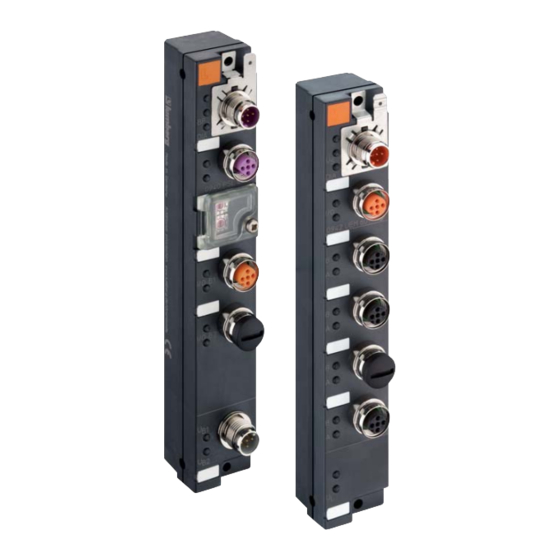

  • Page 1 LioN-Link Profibus Technical Manual 0940 PSL 601 0942 UEM 6xx | 0970 UEM 7xx...
  • Page 2 Technical Manual LioN-Link Profibus LioN-Link – Modular system for Profibus-DP 0940 PSL 601 0942 UEM 6xx | 0942 UEM 7xx BusHead, Profibus-Slave, M12 bus connection, I/O modules with rotary address switches Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 2 of 43...

  • Page 3: Table Of Contents

    Technical Manual LioN-Link Profibus Content About this Manual 1.1. Explanations of symbols used 1.1.1 Use of notes 1.1.2 Use of hazard notes Safety Guidelines 1.2.1 Certified usage Qualified personnel System description Product overview Module variants Place Holder-modules Dimensions BusHead 0940 PSL 601 Digital Universal modules 0942 UEM 600 | 0942 UEM 650 | 0942 UEM 700 Digital Input modules 0942 UEM 601 | 0942 UEM 651 | 0942 UEM 701 Analog Input modules 0942 UEM 630 | 0942 UEM 631...

  • Page 4: About This Manual

    Technical Manual LioN-Link Profibus 1. About this Manual Please read the assembly and operating instructions Belden Deutschland GmbH in this Manual carefully before putting the LioN-Link – Lumberg Automation – system into operation. The Manual should be stored Im Gewerbepark 2 in a place that is accessible for all users.

  • Page 5: Qualified Personnel

    Technical Manual LioN-Link Profibus The error-free, secure operation of the product The user has to comply with the safety and accident requires proper transport, storage, set-up and prevention regulations that apply to the specific assembly, as well as careful operation. The intended activity being performed during project planning, operation of the device can only be guaranteed installation, commissioning, maintenance and test-...

  • Page 6: System Description

    Technical Manual LioN-Link Profibus 2. System description LioN (Lumberg I/O Network) Link is a modular sys- To keep within the permissible limits for safe power tem for decentralized utilization in rough industrial supply to the modules, every system needs to be environments, for simple management of I/O data planned according to the actual conditions on site within a higher-level bus system.

  • Page 7: Dimensions

    Technical Manual LioN-Link Profibus 4. Dimensions 4.1 BusHead Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 7 of 43...

  • Page 8: Digital Universal Modules 0942 Uem 600 | 0942 Uem 650 | 0942 Uem 700

    Technical Manual LioN-Link Profibus 4.2 Digital Universal modules 4.2.1 0942 UEM 600 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 8 of 43...
  • Page 9 Technical Manual LioN-Link Profibus 4.2.2 0942 UEM 650 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 9 of 43...
  • Page 10 Technical Manual LioN-Link Profibus 4.2.3 0942 UEM 700 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 10 of 43...

  • Page 11: Digital Input Modules 0942 Uem 601 | 0942 Uem 651 | 0942 Uem 701

    Technical Manual LioN-Link Profibus 4,3 Digital Input modules 4.3.1 0942 UEM 601 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 11 of 43...
  • Page 12 Technical Manual LioN-Link Profibus 4.3.2 0942 UEM 651 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 12 of 43...
  • Page 13 Technical Manual LioN-Link Profibus 4.3.3 0942 UEM 701 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 13 of 43...

  • Page 14: Analog Input Modules 0942 Uem 630 | 0942 Uem 631

    Technical Manual LioN-Link Profibus 4.4 Analog Input modules 4.2.3 0942 UEM 630/631 Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 14 of 43...

  • Page 15: Directions For Field Installation

    Technical Manual LioN-Link Profibus 4.5 Directions for field installation The module is to be mounted on a level surface with Important note: at least 2 screws. The module is equipped with a grounding sheet for the purpose of discharging parasitic currents and/or for EMC Type of mounting Screw Tightening torque stability.

  • Page 16: Link System Connection (M12 Male Connector, 5 Poles)

    Technical Manual LioN-Link Profibus Connection Function 5.3 Link System connection, Drain M12 male/female connector, 5 poles Systembus 24 V System/Sensors orange Color coding of the connections: In/Out 0 V System/Sensors Data + Data - The 24 V power supply in the bus connections supplies M12 male, 5 poles, M12 female, 5 poles, the module electronics and the sensors of the system bus...

  • Page 17: Actuator Power Connection System Bus Modules

    Technical Manual LioN-Link Profibus Connection Function 5.4.3 Module 0942 UEM 630/631, UEM 630 / UEM 631 M12 female connector, 5 poles +24 V I channels + measuring signal - measuring signal shield 5.4.4 Connection of analog transducers Actuator Power connection System bus modules, Color coding of the connection: grey Connection...

  • Page 18: Wiring Concept

    Technical Manual LioN-Link Profibus 6. Wiring concept Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 18 of 43...
  • Page 19 Technical Manual LioN-Link Profibus When planning a system, remember that intermedi- ate supply of system/sensor power may be necessary beyond certain line lengths. If the power supply is not sufficient, the I/O modules report a diagnostic signal. The warning threshold is about 19 V DC.
  • Page 20 Technical Manual LioN-Link Profibus 6.2 Intermediate supply of sensor/system power to the Link modules using the T-distributor 0906 UTP 104 and standard connecting cables e.g. RKT 5-226/..M P89; RKT 4-3-224/..M; RKT 4-3-602/..M... Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 20 of 43...
  • Page 21 Technical Manual LioN-Link Profibus 6.3 Illustration of the table for calculating line voltage drop and the positions for intermediate power supply, using examples Rated voltage: 24 V Cable cross-section: 0.34 mm² Voltage threshold: 19 V Module No. Cable length in m Output current in A Voltage at module in V 23.96...

  • Page 22: Communication With The System

    Technical Manual LioN-Link Profibus 7. Communication with the module Communication with the higher-level bus system (here: Profibus DP) is via the BusHead 0940 PSL 601. 7.1 Addressing Rotary address switches Two rotary switches, located above the M12 bus con- nections behind a clear cover, are used for direct adjustment of the Profibus address.
  • Page 23 Technical Manual LioN-Link Profibus 7.3.1 Configuration example in the Siemens Company's S7 Software Integration of the system onto the Profibus line Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 23 of 43...
  • Page 24 Technical Manual LioN-Link Profibus Automatic Profibus address reservation (can be modified by the user) Integration of the BusHead The default settings for the software diagnosis can be changed on the BusHead. To change the parameter settings, double click on the module and select Parameterize. Then open the folder Device-Specific Parameters.
  • Page 25 Technical Manual LioN-Link Profibus Currently not supported Interchanging modules within the bus structure can be permit- ted or excluded. Default setting --> ACCEPT If ACCEPT is set, the modified actual configuration will be accepted as the new target configuration when the system is restarted.
  • Page 26 Technical Manual LioN-Link Profibus Input and Output addresses of the SPS (can be modified by the user) Both branches can be filled with placeholders up to the maximum number of 15 modules per branch. In this case, the configurator reserves the corresponding diagnostic address range in the PLC. If the system is expanded, there are no shifts or jumps in the diagnostic addressing.
  • Page 27 Technical Manual LioN-Link Profibus 7.3.1.1 Configuration possibilities analog modules The start address may be changed by the user. The end address is specified by the number of channels used. Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 27 of 43...
  • Page 28 Technical Manual LioN-Link Profibus 7.3.1.2 Analog module 0942 UEM 630; 0(4)–20 mA Design of default settings The preset resolution is valid for all channels. Each channel may be assigned parameters individually. A channel may be switched off if it is not used. The measuring range can be selected.
  • Page 29 Technical Manual LioN-Link Profibus 7.3.1.3 Analog module 0942 UEM 631; 0–10 V Design of default settings The preset resolution is valid for all channels. Each channel may be assigned parameters individually. A channel may be switched off if it is not used. The diagnosis can be switched on/off through the channels.
  • Page 30 Technical Manual LioN-Link Profibus 7.3.2 Configuration example CoDeSys of the 3S Software Solutions Co. (Moeller) Select module from the list Automatic allocation of the input and output address (can be modi- fied by the user) Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 30 of 43...
  • Page 31 Technical Manual LioN-Link Profibus Automatic allocation of the Profibus address (can be modified by the user) Mark the desired type and select with the button „Auswählen“ First, the BusHead is integrated into the system. Next, the I/O modules from Link branch 1 and then the modules from branch 2 are appended in the sequence in which they are physically installed.
  • Page 32 Technical Manual LioN-Link Profibus Placeholder modules can be inserted to facilitate later expansion. Bit-to-bit display of the addresses of the selected configuration Byte-to-byte display of the addresses of the selected configuration Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 32 of 43...

  • Page 33: Bit Assignment

    Technical Manual LioN-Link Profibus 7.4 Bit assignment The Profibus telegram permits transmission of a maximum of 244 bytes of information data. 7.4.1 Digital modules In this system, the reference data for each config- ured module consists of either one or two bytes of input and output data, depending on its type, appli- cation, and configuration.

  • Page 34: Diagnostic Messages

    Technical Manual LioN-Link Profibus 7.5 Diagnostic messages In order to make the detection of a fault easier, soft- Diagnoseanzeige – BusHead Diagnostic indication – BusHead ware diagnostics have been integrated for evalua- tion by the Master and LED's for visual diagnostics. Anzeige Bedingung Indication...
  • Page 35 Technical Manual LioN-Link Profibus 7.5.2.1 Diagnostic structure of the Profibus DP Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 35 of 43...
  • Page 36 Technical Manual LioN-Link Profibus Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 36 of 43...
  • Page 37 Technical Manual LioN-Link Profibus Version 1.10 / 31.03.2008 Specifications subject to alteration! Page 37 of 43...
  • Page 38 Technical Manual LioN-Link Profibus The length of the device-specific diagnosis depends in this system on the number of configured Link devices. A) Modules are configured in branch 1 and branch 2 B) Modules are configured in branch 1 or only in branch 2 Number of diagnostic bytes = 1 (BusHead) + (Σ...

  • Page 39: Operation Of The System

    Technical Manual LioN-Link Profibus 8. Operation of the system 8.1 Startup During startup, we recommend leaving the Interchanged Modules parameter on the ACCEPT setting (default setting). In this mode, it is possible to find the optimum setup and the best wiring solu- tion.

  • Page 40: System Expansion

    Technical Manual LioN-Link Profibus 8.4 System expansion 8.4.1 Placeholder module present in the configuration The placeholder module is replaced by the desired Link module and the next free address is then assigned to the new module (e.g. Siemens S7 soft- ware).

  • Page 41: Technical Data

    Technical Manual LioN-Link Profibus 9. Technical data 9.1 General data 9.4 Technical data power supply Link-Modules Electronics/Sensors Degree of protection IP 67 Rated voltage U 24 V DC (only in locked position) Voltage range 19–30 V DC Operating temperature range -10°C / +60°C Power consumption Electronics Weight...

  • Page 42: Technical Data - Inputs

    Technical Manual LioN-Link Profibus 9.6.1 Technical data – Inputs 9.7 Technical data – Outputs Digital modules Input circuit Type 3 according to IEC 61131-2 Output circuit Type 0.5 A acc. to IEC 61131-2 Rated input voltage 24 V DC Rated output current per channel: Input current at 24 V DC typ.
  • Page 43 Technical Manual LioN-Link Profibus Belden Deutschland GmbH Lumberg Automation Support & Service – Lumberg Automation – Im Gewerbepark 2 Lumberg Automation offers you comprehensive technical 58579 Schalksmühle assistance, helping you with the application of Lumberg GERMANY Automation products. Tel. +49 (0) 23 55 - 83-01 +49 (0) 23 55 - 83-3 33 support@lumberg-automation.com...
