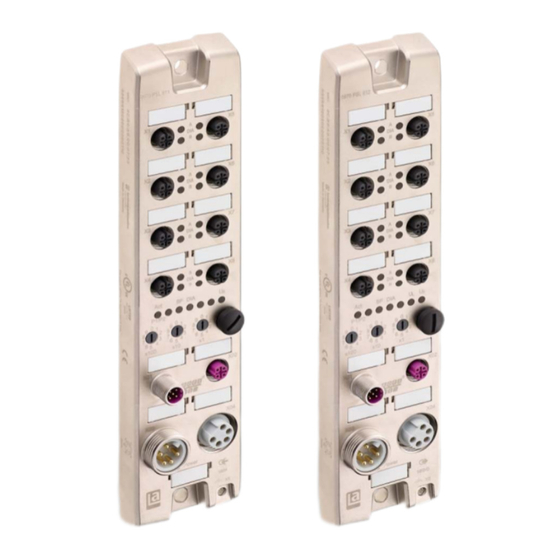

Belden Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R Technical Manual
  1. Manuals
  2. Brands
  3. Belden Manuals
  4. Control Unit
  5. Lumberg Automation Lumberg Automation 0980 ESL 811-EIP...
  6. Technical manual

Belden Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R Technical Manual

Lion-r profibus
Hide thumbs Also See for Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R:
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Manual
LioN-R PROFIBUS
0970 PSL 811-PB-DP 16DI-M12-R
0970 PSL 812-PB-DP 16DO-M12-R
0970 PSL 813-PB-DP 8DI/8DO-M12-R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belden Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R

Summary of Contents for Belden Lumberg Automation 0970 PSL 811-PB-DP 16DI-M12-R

  • Page 1 Technical Manual LioN-R PROFIBUS 0970 PSL 811-PB-DP 16DI-M12-R 0970 PSL 812-PB-DP 16DO-M12-R 0970 PSL 813-PB-DP 8DI/8DO-M12-R...

  • Page 2: Table Of Contents

    Technical Manual LioN-R PROFIBUS Contents About this manual ..............................4 1.1. Explanations about the symbolism ......................4 1.1.1. Utilization of notes ..........................4 1.1.2. Utilization of danger warnings ......................4 1.2. Notes on safety ............................5 1.2.1. Use according to specification ......................5 1.3.
  • Page 3 Technical Manual LioN-R PROFIBUS 7.2. Module 0970 PSL 812-PB-DP 16DO-M12 R .................... 22 7.2.1. Input data ............................22 7.2.2. Output data ............................22 7.3. Module 0970 PSL 813-PB-DP 8DI/8DO- M12-R ..................23 7.3.1. Input data ............................23 7.3.2. Output data ............................23 Diagnostic properties of the modules ........................

  • Page 4: About This Manual

    Telephone: +49 (0) 23 55/5044-000 Fax: +49 (0) 23 55/5044-333 E-mail: support-automation@belden.com Website: www.lumberg-automation.com Belden Deutschland GmbH - Lumberg Automation - reserves the right to make technical changes or revisions to this manual at any time without special notification. 1.1. Explanations about the symbolism 1.1.1.

  • Page 5: Notes On Safety

    Only lines and accessories may be installed which correspond to the requirements and specifications regarding safety, electromagnetic compatibility and, as appropriate, telecommunications terminal unit equipment, as well as to the specification information. You are provided with information by Belden Deutschland GmbH - Lumberg Automation about which lines and accessories are authorized for installation or these are described in this manual.

  • Page 6: Qualified Personnel

    Based on many years of activity in a comparable area, have the same know-how as with specialist training. Interventions in the hardware and software of our products, insofar as they are not described in this manual, may only be carried out by Belden Deutschland GmbH - Lumberg Automation Warning! Unqualified interventions in the hardware or software or non-observance of the warnings given in this manual can result in serious personal injuries or damage to property.

  • Page 7: System Description

    Technical Manual LioN-R PROFIBUS System description The LioN (Lumberg I/O Network)-R module series includes a standalone field bus device for decentralized employment in a raw industrial environment. The devices offer a simple handling of the I/O data in a higher-level bus system.

  • Page 8: Product Overview

    Technical Manual LioN-R PROFIBUS Product overview 3.1. Module variants Article number Description I/O connection Construction design LioN-R 16 DI 0970 PSL 811-PB-DP 16DI-M12-R Decentralized I/O module 8 M12 sockets Rugged/metal SAP number: 934 770-001 with 16 digital inputs. Connection of the periphery over 8 M12 insertion slots.
  • Page 9 Technical Manual LioN-R PROFIBUS 0975 254 134/… M Connecting lead for PROFIBUS, fabricated on both sides with M12 plug connector, angled/socket, straight 5-pole, B-coded 0975 254 135/… M Connecting lead for PROFIBUS, fabricated on both sides, 9- pole with M12 socket, angled, 5-pole, B-coded and D-Sub plug connector PROFIBUS 0975 254 136/…...
  • Page 10 Technical Manual LioN-R PROFIBUS Article number Description Voltage supply 0905 204 301/… M Connecting lead for voltage supply, fabricated on one side with 7/8" socket, straight, 5-pole 0905 204 302/… M Connecting lead for voltage supply, fabricated on both sides with 7/8"...

  • Page 11: Assembling

    Technical Manual LioN-R PROFIBUS Assembling 4.1. External dimensions 4.1.1. 0970 PSL 811 Technical rights to changes reserved! Version1.0/November 2013 Page 11 of 32...

  • Page 12: 0970 Psl 812

    Technical Manual LioN-R PROFIBUS 4.1.2. 0970 PSL 812 Technical rights to changes reserved! Version1.0/November 2013 Page 12 of 32...

  • Page 13: 0970 Psl 813

    Technical Manual LioN-R PROFIBUS 4.1.3. 0970 PSL 813 Technical rights to changes reserved! Version1.0/November 2013 Page 13 of 32...

  • Page 14: Notes For Field Installation

    Technical Manual LioN-R PROFIBUS 4.2. Notes for field installation The modules are to be mounted on a flat surface with two bolts in each case. Type of securing Bolts Tightening torque Flat M6x25/30 1.0 Nm With all types of securing, a spacing washer is to be provided in accordance with DIN 125.

  • Page 15: Wiring

    Technical Manual LioN-R PROFIBUS Wiring 5.1. Connector pin assignments All contact arrangements which are represented in this chapter indicate the view from in front to the contact area of the plug connectors. 5.1.1. Connections for PROFIBUS DP, M12 plug connector/socket, 5-pole, B-coded Color coding of the connections: violet X01 (IN)

  • Page 16: Connections For Sensor Technology/Actuator Technology, M12-Socket, 5-Pole

    Technical Manual LioN-R PROFIBUS The power supply units, which are employed for the system/sensor and actuator supply, must correspond to PELV (Protective Extra Low Voltage) or SELV (Safety Extra Low Voltage). Power supplies according to EN 61558-2-6 (transformer) or EN 60950-1 (switched-mode power supplies) meet these requirements.

  • Page 17: Project Planning And Operational Startup

    Technical Manual LioN-R PROFIBUS Project planning and operational startup The configuration and operational startup of the LioN-R I PROFIBUS module described on the following pages was implemented with the aid of the STEP7 Software from Siemens AG. When utilizing a control system from another control provider, please consider the corresponding documentation.
  • Page 18 Technical Manual LioN-R PROFIBUS The data transfer rate employed is determined with the start of the communication of the module with the master, and adjusted automatically (AutoBaud Detection). Technical rights to changes reserved! Version1.0/November 2013 Page 18 of 32...

  • Page 19: Configuration Of The Lion-R Profibus Module In Step 7

    Technical Manual LioN-R PROFIBUS 6.4. Configuration of the LioN-R PROFIBUS module in STEP 7 After the installation of the GSD file for the LioN-R PROFIBUS module, this is available in the hardware catalog under PROFIBUS-DP - Further FIELD UNITS - I/O - Lumberg LioN-R. First configure the control system in the usual manner.

  • Page 20: The Parameter Settings Of The Lion-R Module

    Technical Manual LioN-R PROFIBUS 6.4.1. The parameter settings of the module LioN-R You can access the parameter setting via the menu item Object characteristics - parameters. For this, double-click on insertion slot 1 of the module support rack in HW Config. The following display indicates the parameter settings of the module 0970 PSL 813-PB-DP 8DI/8DO-M12-R.

  • Page 21: 6.4.1.3. The Parameter Fail Safe

    Technical Manual LioN-R PROFIBUS 6.4.1.3. The parameter Fail Safe This parameter is made available by the module types with digital outputs (16DO, 8DI/DO). The firmware of the modules provides a fail-safe function for the outputs. During the configuration of the modules, the status of the outputs can be defined in the PROFINET I/O network after an interruption or a loss of communication.

  • Page 22: Allocation Of The Process Data

    Technical Manual LioN-R PROFIBUS Allocation of the process data This chapter describes the allocation of the process data of the control to the I/O channel of the modules. 7.1. Module 0970 PSL 811-PB-DP 16DI-M12-R 7.1.1. Input data The module supplies two bytes of status information to the digital inputs. The bit allocation is as follows: Input Bit 7 Bit 6...

  • Page 23: Module 0970 Psl 813-Pb-Dp 8Di/8Do- M12-R

    Technical Manual LioN-R PROFIBUS 7.3. Module 0970 PSL 813-PB-DP 8DI/8DO- M12-R 7.3.1. Input data This module supplies two bytes input data which display the current status of the input and output channels. Input Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1...

  • Page 24: Diagnostic Properties Of The Modules

    Technical Manual LioN-R PROFIBUS Diagnostic properties of the modules The modules offer an extended diagnostics characteristic, particularly for the output channels, which is explained in this chapter. There are five different types of faults which must be differentiated. 8.1. Channel fault Channel faults result from a comparison between the setpoint value of an output channel, which is set by a control, and its actual value.

  • Page 25: Overload Of The Output Drivers

    Technical Manual LioN-R PROFIBUS The fault report of the sensor fault is filtered with a fixed time of typically 100 ms. 8.3. Overload of the output drivers The output drivers of the modules 0970 PSL 812 - 16DO and 0970 PSL 813 - 8DI/8DO signal a fault if they determine an overload.

  • Page 26: Diagnostic Message Of The Lion-R Module Over Profibus-Dp

    Technical Manual LioN-R PROFIBUS 8.6. Diagnostic message of the LioN-R module over PROFIBUS-DP If the LioN-R modules identify a fault state, they activate a diagnostic message. For example, periphery faults, such as overload, short circuit and low voltage lead to diagnostic messages. A diagnostic message is activated both in case of an incoming event (e.g.
  • Page 27 Technical Manual LioN-R PROFIBUS d) Channel-related diagnostics For every incorrect channel, the following 3 bytes are sent (from byte 10) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Byte 10 Byte 11 Input: 01 Channel number: 0 to 15 Output: 10...
  • Page 28 Technical Manual LioN-R PROFIBUS Technical rights to changes reserved! Version1.0/November 2013 Page 28 of 32...

  • Page 29: Technical Data

    Technical Manual LioN-R PROFIBUS Technical data 9.1. General data Protection type IP 67 (only in the screwed-together status) Ambient temperature -10°C/+60°C Weight approx. 605 g Housing material Zinc die-casting Vibration resistance oscillating cranks 15 g / 5-500 Hz Impact test vibration resistance 50 g / 11 ms Torques: ...

  • Page 30: Technical Data Of The Actuator-Technology Power Supply

    Technical Manual LioN-R PROFIBUS 9.4. Technical data of the actuator-technology power supply Rated voltage 24 DC (SELV/PELV) Voltage range 18-30 DC Disconnection of the potential Undervoltage threshold typ. 17 V Delay period typ. 300 ms Low-voltage identification Reverse polarity protection Actuator supply display U LED green, 18 V ≤...

  • Page 31: Technical Data Of The Output Stages

    Technical Manual LioN-R PROFIBUS 9.6. Technical data of the output stages Output wiring Type 1.6 A in accordance with IEC 61131-2 Rated output current per channel: 1.6 A (see Info 1) Signal status "1" max. 1.6 A Signal status "0" max.

  • Page 32: Ce Declaration Of Conformity

    Technical Manual LioN-R PROFIBUS CE Declaration of Conformity Technical rights to changes reserved! Version1.0/November 2013 Page 32 of 32...
