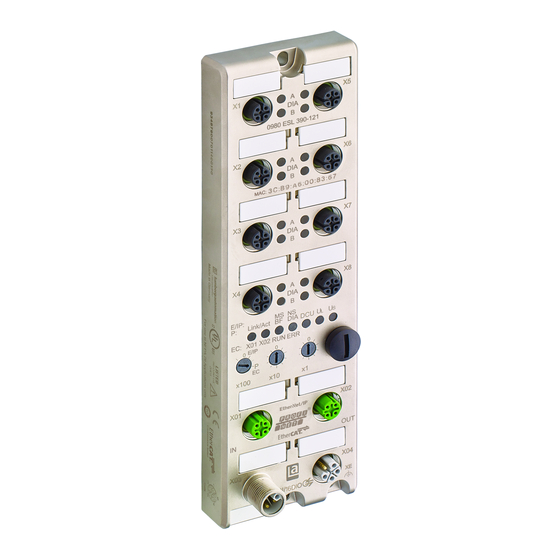

Manual
LioN-P multiprotocol
Digital I/O modules and IO-Link Master:
0980 ESL 390-121
0980 ESL 391-121
0980 ESL 392-121
0980 ESL 393-121
0980 ESL 390-121-DCU1
0980 ESL 393-121-DCU1
0980 ESL 390-111
0980 ESL 391-111
0980 ESL 392-111
0980 ESL 393-111
0980 ESL 199-121
0980 ESL 199-122
0980 ESL 199-331
0980 ESL 199-332
0980 ESL 398-121
0980 ESL 399-121
Information sheet LioN-P multiprotocol
Technical Support
Release 1.2 04/2017
support-automation@belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the lumbergautomation 0980 ESL 390-121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belden lumbergautomation 0980 ESL 390-121

Summary of Contents for Belden lumbergautomation 0980 ESL 390-121

  • Page 1 0980 ESL 390-111 0980 ESL 391-111 0980 ESL 392-111 0980 ESL 393-111 0980 ESL 199-121 0980 ESL 199-122 0980 ESL 199-331 0980 ESL 199-332 0980 ESL 398-121 0980 ESL 399-121 Information sheet LioN-P multiprotocol Technical Support Release 1.2 04/2017 support-automation@belden.com...
  • Page 2 Information sheet LioN-P multiprotocol Release 1.2 04/2017...

  • Page 3: Table Of Contents

    Content Content About this manual General information Version information About the LioN-P module series Multiprotocol Protocol settings for Digital I/O modules EtherNet/IP – PROFINET – EtherCAT 4.1.1 EtherNet/IP 4.1.2 PROFINET 4.1.3 EtherCAT Factory reset Protocol settings for IO-Link master EtherNet/IP – PROFINET 5.1.1 EtherNet/IP 5.1.2 PROFINET Factory reset...
  • Page 4 Content Information sheet LioN-P multiprotocol Release 1.2 04/2017...

  • Page 5: About This Manual

    Tel. +49 (0) 23 55 / 5044-0 Fax +49 (0) 23 55 / 5044-333 support-automation@belden.com www.lumberg-automation.com Belden Deutschland GmbH – Lumberg Automation™ – reserves the right to make technical changes or changes to this manual at any time without notice. Version information Index...

  • Page 6: About The Lion-P Module Series

    About the LioN-P module series About the LioN-P module series LioN modules (Lumberg input/output Network) function as the interface in an industrial fieldbus system: They enable a central controller on the management level to communicate with the decentralized sensors and actuators on the field level.

  • Page 7: Multiprotocol

    Multiprotocol Multiprotocol The multiprotocol modules allow you to select different protocols for communication within a fieldbus system. In this way the multiprotocol modules can be integrated into different networks without it being necessary to purchase modules specific for each protocol. This technology also gives you the option to use the same module in different environments.

  • Page 8: Protocol Settings For Digital I/O Modules

    Protocol settings for 4.1 EtherNet/IP – PROFINET – Digital I/O modules EtherCAT Protocol settings for Digital I/O modules EtherNet/IP – PROFINET – EtherCAT The following Digital - I/O modules support multiprotocol application for the protocols EtherNet/IP (E/IP), PROFINET (P) and EtherCAT (EC): ...

  • Page 9: Ethernet/Ip

    Protocol settings for 4.1 EtherNet/IP – PROFINET – Digital I/O modules EtherCAT Protocol x100 EtherNet/IP PROFINET EtherCAT Table 2: Assignment of the rotary encoding switches for each protocol The setting you make to select a protocol is described detailed in the protocol-specific sections.

  • Page 10: Profinet

    Protocol settings for 4.2 Factory reset Digital I/O modules 4.1.2 PROFINET If you decide to use PROFINET, set the first rotary encoding switch to the value of P. For more Information use the LioN-P PROFINET Digital I/O manual. 4.1.3 EtherCAT If you decide to use EtherCAT, set the first rotary encoding switch to the value of EC.

  • Page 11: Protocol Settings For Io-Link Master

    Protocol settings for IO-Link master 5.1 EtherNet/IP – PROFINET Protocol settings for IO-Link master EtherNet/IP – PROFINET The following LioN-P IO-Link master modules support multiprotocol application for the protocols EtherNet/IP (E/IP) and PROFINET (P):  0980 ESL 199-121  0980 ESL 199-122 ...

  • Page 12: Ethernet/Ip

    Protocol settings for IO-Link master 5.1 EtherNet/IP – PROFINET In delivery state no protocol settings are stored in the module. In this case only the desired protocol has to be chosen. To take over a changed rotary switch setting (protocol setting), a power cycle or “Reset” from the web interface is necessary.

  • Page 13: Factory Reset

    Protocol settings for IO-Link master 5.2 Factory reset Factory reset A factory reset restores the original factory settings and thus resets the changes and settings you have made up to that point. It also resets the protocol selection. To perform a factory reset, set the first rotary encoding switch (x100) to 9, the second (x10) to 7, and the third (x1) also to 9.
