Danfoss iC7 Series Installation Manual page 9

In-bottom/Out-back Cooling Kit for FA11-FA12
Installation Guide
8X Ø 6 (0.2)

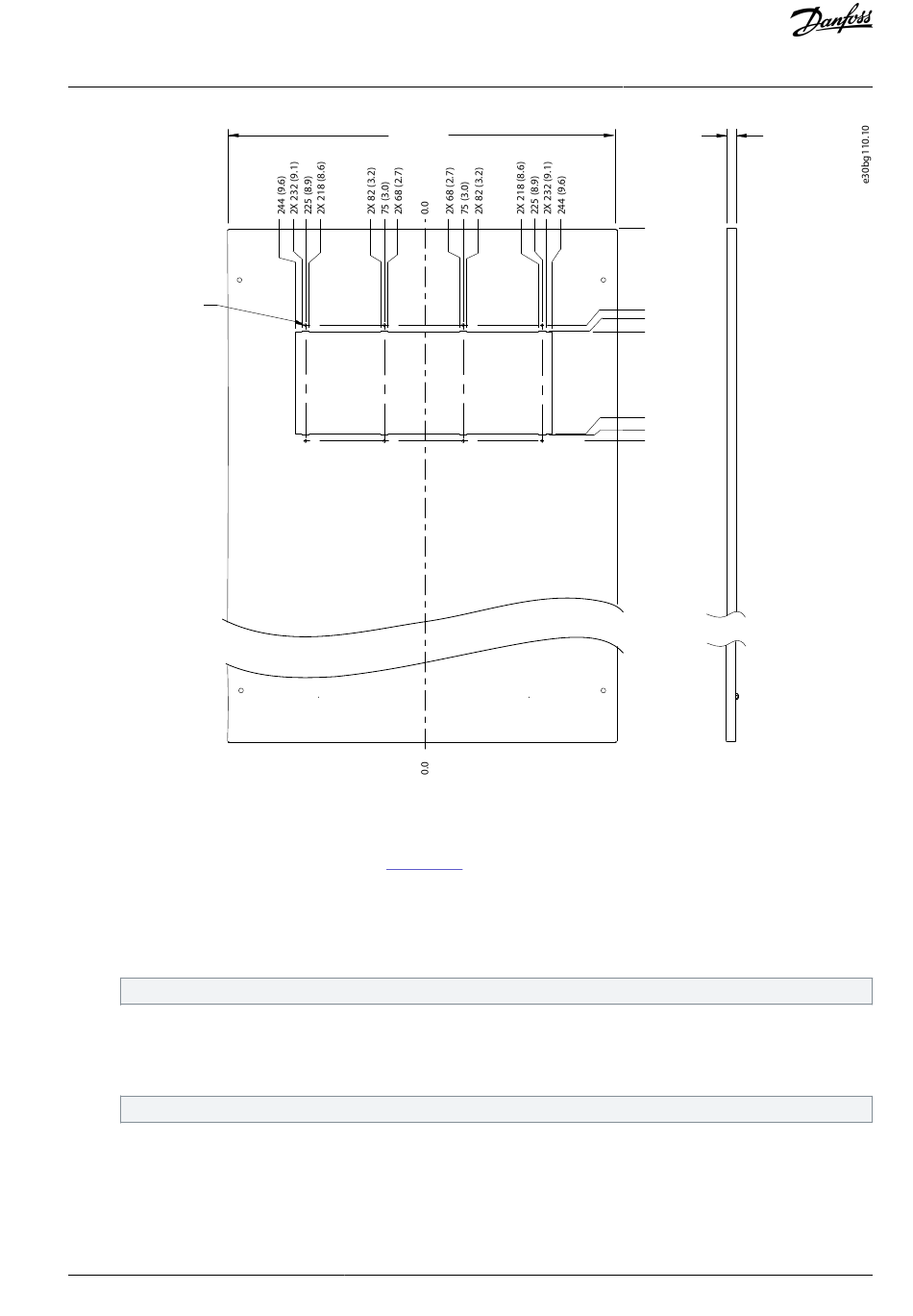

Illustration 7: Vent Template for Backplate in 800 mm (32 in) Cabinet
2.5 Installing the Top Cover
To install the top cover, use the following steps. See
Procedure
1.
Remove paper backing from the top gasket to expose the adhesive.
2. Adhere the top gasket to the underside of the top cover.
3.
Remove the M5x14 screws (T25) surrounding the sides and back of the vent in the top of the frequency converter.
Retain the screws. Fx11 converters have 6 screws; Fx12 converters have 7 screws.
4.
Loosen 3 M5x12 screws (T25) at the front of the vent in the top surface of the frequency converter.
5. Slide the edge of the top cover plate under the 3 loosened screws, positioning the plate over the vent in the top of the
frequency converter.
6. Secure the top cover plate with the M5x14 screws (T25) removed previously in step 3.
Torque all screws to 2.3 Nm (20 in-lb).
Danfoss A/S © 2022.12
792 (31.2)
Illustration 8.
Installation
18 (0.7)
0.0
185 (7.3)
4X 196 (7.7)
198 (7.8)
392 (15.4)
4X 394 (15.5)
405 (15.9)
AN361429392581en-000201 / 136R0253 | 9
