In-bottom/Out-back Cooling Kit for FA11-FA12
Installation Guide
8X Ø 6 (0.2)

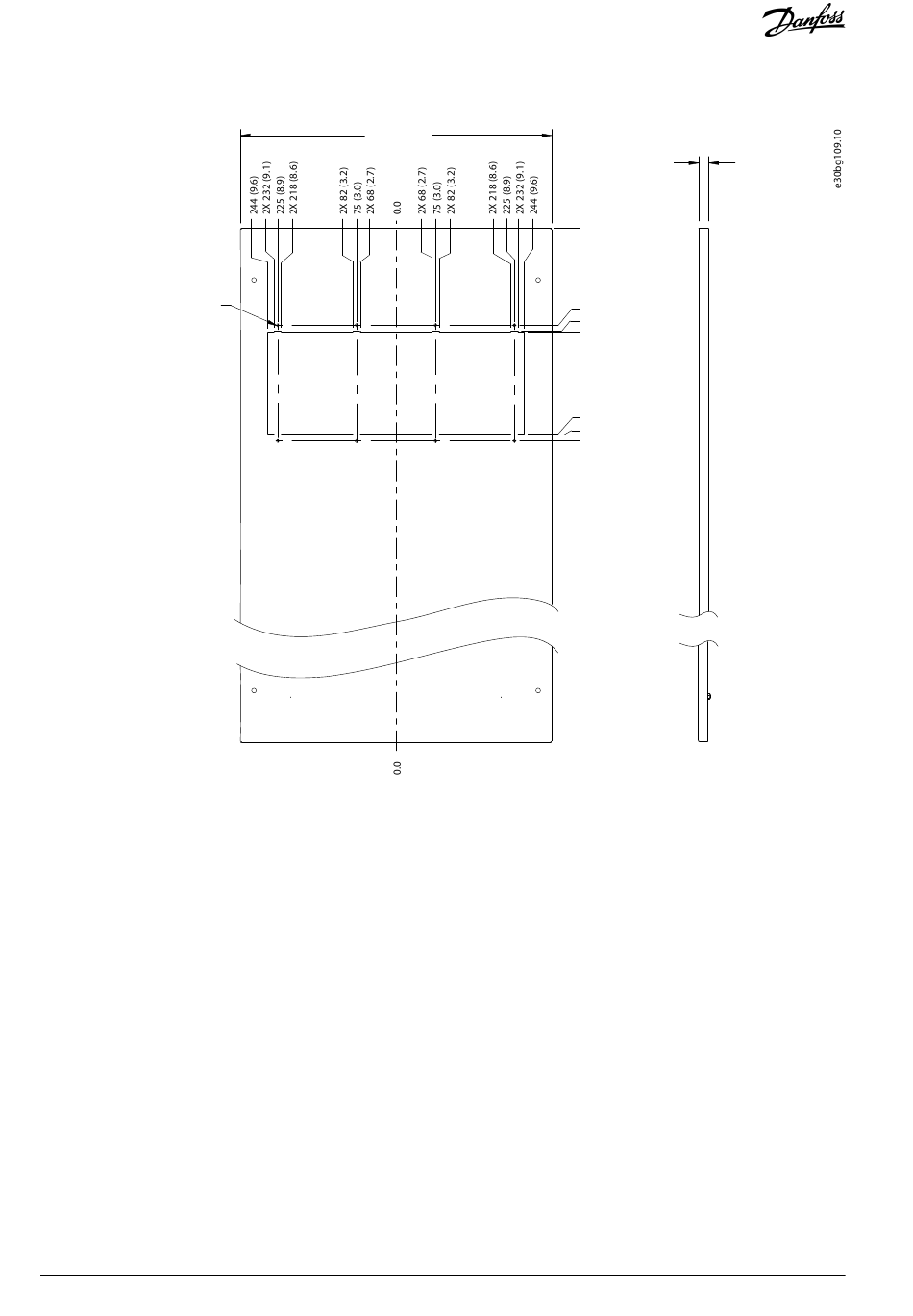

Illustration 6: Vent Template for Backplate in 600 mm (24 in) Cabinet
8 | Danfoss A/S © 2022.12
592 (23.3)
18 (0.7)
0.0
185 (7.3)
4X 196 (7.7)
198 (7.8)
392 (15.4)
4X 394 (15.5)
405 (15.9)
AN361429392581en-000201 / 136R0253
Installation
