Danfoss iC7 Series Installation Manual page 14

In-bottom/Out-back Cooling Kit for FA11-FA12
Installation Guide
8. Secure the top of the frequency converter using 3 M10 screws.
Torque the 6 M10 screws to 19 Nm (170 in-lb).

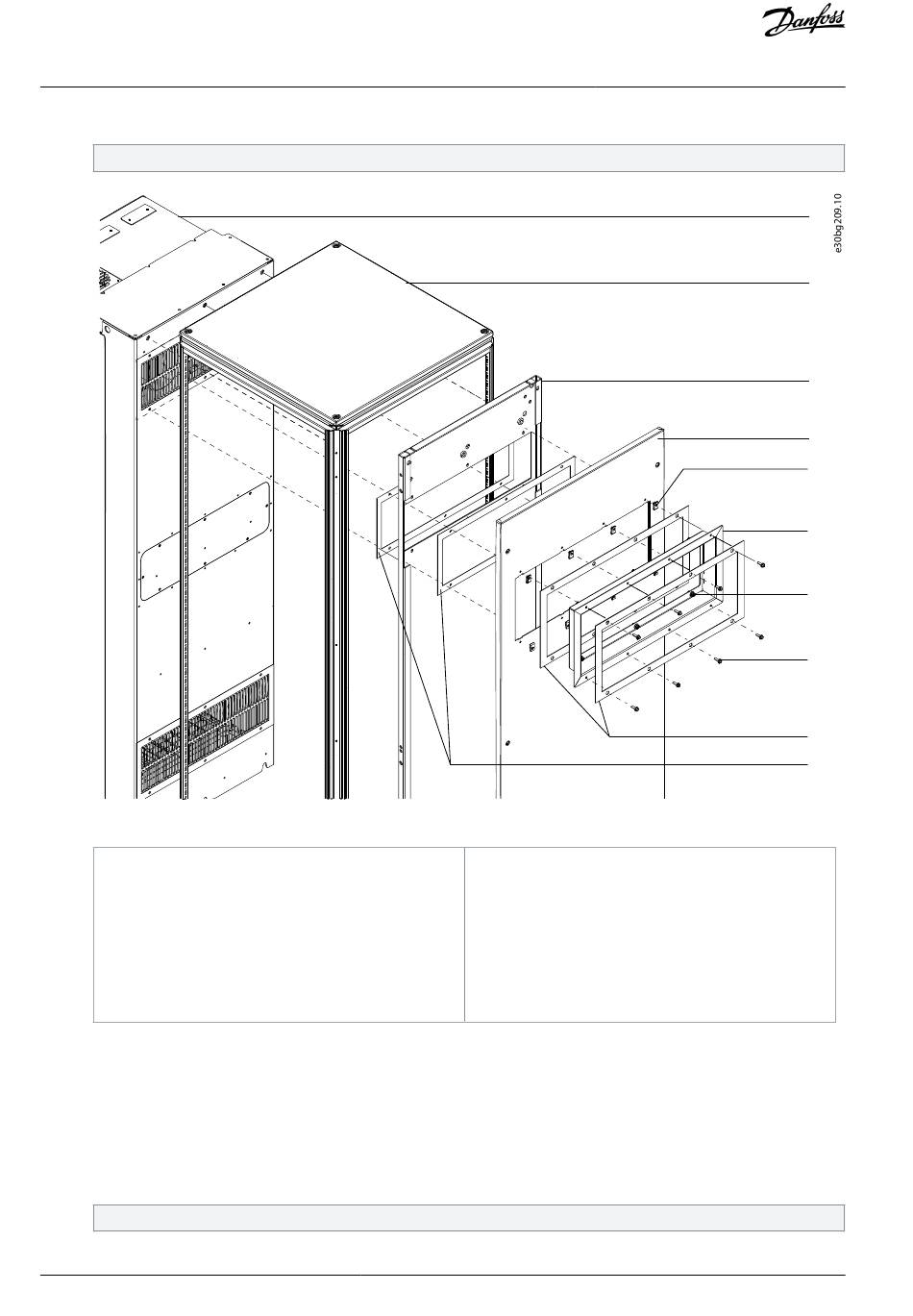

Illustration 12: Installation in Cabinet
1 Frequency converter
2 Rittal cabinet
3 Mounting plate
4 Backplate
5 M5 clip-on nut
2.10 Attaching the Bottom Duct to the Duct Support Bracket
After the frequency converter is installed on the mounting plate, attach the telescopic bottom duct to the duct support bracket
using the following steps.
Procedure
1. Extend the telescopic bottom duct upward until the upper flange of the duct is positioned against the duct support brack-
et.
2.
Secure the duct to the bracket with 4 M5x14 screws (T25).
Torque fasteners to 2.3 Nm (20 in-lb).
14 | Danfoss A/S © 2022.12
6 Back duct
7 M6x12 screw
8 M5x18 screw
9 8-hole gaskets
10 6-hole gaskets
AN361429392581en-000201 / 136R0253
Installation
