PRODUCT MANUAL
Installation & Safe Use Operation Highlights
Fits 2" receiver hitches with Class II minimum tow rating.
Weighs 140 lbs empty.
Rated for up to 300 lbs of cargo payload.
The GearSpace cargo carrier ships factory assembled on a pallet via freight truck. The installation
process entails final stage assembly and connectivity of a two part, slide out system. Save this manual for
reference for operation and safety requirements.
GEARSPACE - ASSEMBLY, INSTALLATION, AND OPERATIONS INSTRUCTIONS:
Description
TwinTube® Spine Assembly/Install .......................................................
Capsule and Frame Assembly/Install ....................................................
Safe Use & Operation ...........................................................................
For More Information & Accessories, Visit our Website - www.LetsGoAero.com
Contact Us at 877-474-2376 or 719-630-3800
GS34 Manual -Rev102417

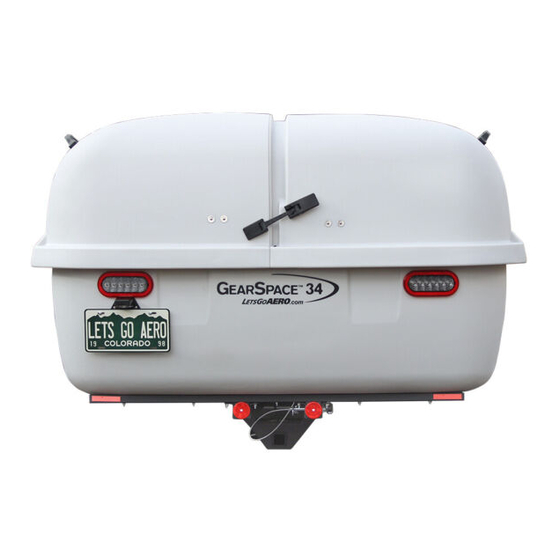

GearSpace® Cargo Carrier
Part No. HGK819 & HGK826
Email Support@LetsGoAero.com
Slide Out Mount System
Page
2
3
6
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GearSpace and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Let's Go Aero GearSpace

Summary of Contents for Let's Go Aero GearSpace

  • Page 1 Rated for up to 300 lbs of cargo payload. The GearSpace cargo carrier ships factory assembled on a pallet via freight truck. The installation process entails final stage assembly and connectivity of a two part, slide out system. Save this manual for reference for operation and safety requirements.
  • Page 2 TWINTUBE® SPINE ASSEMBLY AND INSTALLATION Hitch Up & GO Overview: Qty. Description - Install TwinTube Spine on Hitch TwinTube® Spine Retainer clip - Secure to hitch with Silent Hitch Pin® 5/8” Silent Hitch Pin ® 5/8” Silent Hitch Pin ® (Hand-Tighten) 5/8”...
  • Page 3 STEP 3 RECOMMENDED TOOL: RUBBER MALLET By rubbing, use the wax block [J] to apply Rubber Bumpers End Caps [Factory Installed] wax to all four sides of both tubes. Install two rubber bumpers [K] (one onto each fixed tube) and two end caps [H]. The remaining hand-tighten Silent Hitch Pin, bushing and retainer clip [D,F,G] will be used, along with a safety cable, to secure...
  • Page 4 STEP 5 The safety cable must be attached to the spine in one of two positions. POSITION ONE is the recommended position. POSITION TWO will allow the capsule to slide out an extra five inches if necessary for rear hatch, tailgate or door clearance. POSITION ONE NO USE AREA - 3.5”...
  • Page 5 SAFE USE ADJUSTABILITY - Maximum Clearance REQUIRED TOOL: 1/2” WRENCH You may adjust the position of the capsule by loosening the four clamps. Tighten each clamp securely after you have made any adjustment. Clamps can be moved along the slide tubes for maximum clearance between the back of the vehicle and the capsule.
  • Page 6 GearSpace 34’s 140 lbs from your identified tongue weight rating. The difference represents your vehicle and hitch receiver’s available load weight. The GearSpace® is rated for up to 300 lbs of cargo weight carrying capacity for a combined weight of 440 lbs when fully weight loaded.
