REQUIRED TOOLS: 10mm SOCKET WRENCH WITH EXTENSION,
15/16" SOCKET WRENCH, 17mm WRENCH, 4mm ALLEN WRENCH
M
L
K
N
J
T
U
O
P
D
B

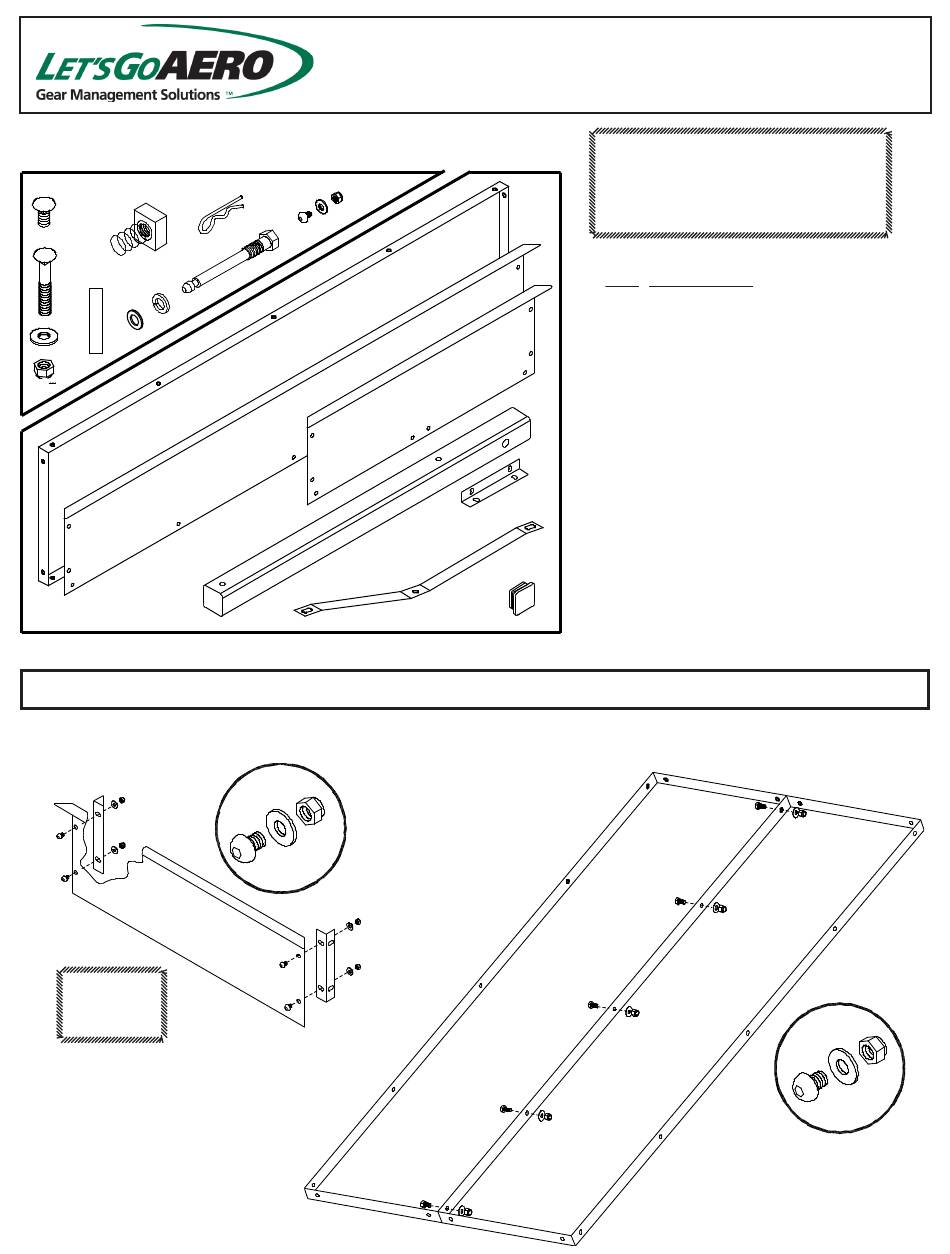

STEPS 1 & 2
TOOLS: 4mm ALLEN WRENCH, 10mm SOCKET WRENCH with EXTENSION.
Build end panel assembly as shown using four [Q, R, S]. Repeat for a second end panel assembly.
Build floor panel assembly as shown using five [Q, R, S]. Fully tighten nuts and bolts (floor panel assembly only).
E
NOTE:
ASSEMBLY
FIT
R S
Q
H
Q
S
R
F
A
E
F
G
C

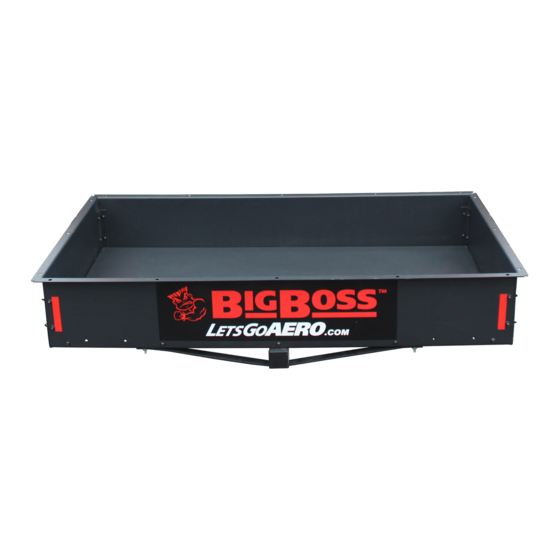

Big Boss Cargo Carrier
Part No. H01465
300 lbs Capacity Cargo Carrier For 2" Hitches
ASSEMBLY FIT
"Assembly fit" most parts when building
this product. This means leaving nuts and
bolts slightly loose to allow parts to easily
fit together throughout assembly.
QTY. DESCRIPTION
A 2
FLOOR PANEL
B 1
SHANK TUBE
C 2
CROSS STRAP
D 2
SIDE PANEL
E 2
END PANEL
F 4
L BRACKET
G 1
END CAP
H 1
NO-MOTION PIN
J 1
1/2" LOCK WASHER
K 1
COTTER PIN
L 1
SPRING NUT
M 4
M8 x 25mm CARRIAGE BOLT
N 2
M8 x 60mm CARRIAGE BOLT
O 6
M8 WASHER
P 6
M8 NYLON NUT
Q 39
M6 x 20mm SOCKET HEAD BOLT
R 39
M6 WASHER
S 39
M6 NYLON NUT
T 2
REFLECTOR STRIPS
U 1
5/8 FLAT WASHER
A
A
Q
S
R
Advertisement
Table of Contents
Related Manuals for Let's Go Aero H01465
Summary of Contents for Let's Go Aero H01465
- Page 1 Big Boss Cargo Carrier Part No. H01465 300 lbs Capacity Cargo Carrier For 2” Hitches REQUIRED TOOLS: 10mm SOCKET WRENCH WITH EXTENSION, ASSEMBLY FIT 15/16” SOCKET WRENCH, 17mm WRENCH, 4mm ALLEN WRENCH “Assembly fit” most parts when building this product. This means leaving nuts and bolts slightly loose to allow parts to easily fit together throughout assembly.
- Page 2 STEP 3 TOOLS: 15/16” SOCKET WRENCH Attach the shank tube [A] to the receiver hitch of your vehicle as shown. IMPORTANT: FOR SAFETY fully tighten no-motion pin [H]. IMPORTANT: FOR SAFETY be sure to install cotter pin [K]. INSIDE, ALIGN RECEIVER WITH HITCH...
- Page 3 STEP 6 TOOLS: 4mm ALLEN WRENCH, 10mm SOCKET WRENCH WITH EXTENSION. Attach end panel assembly as shown using eight [Q, R, S]. Repeat for the second end panel as- sembly. By hand, insert end cap [G] into shank tube [B]. IMPORTANT FINAL STEPS: 1.
- Page 4 BigBoss HOODie™ Part No. H01496 Accessory Cover For BigBoss Model Racks ASSEMBLY AND OPERATION PARTS LIST Qty Description HOODie Cover DragNet Cargo Netting With Clips Unfold your BigBoss HOODie and drape over top of your BigBoss Carrier and any stored cargo. Fit the thick Waist-Band of the HOODie snuggly over the corners of the carrier.
