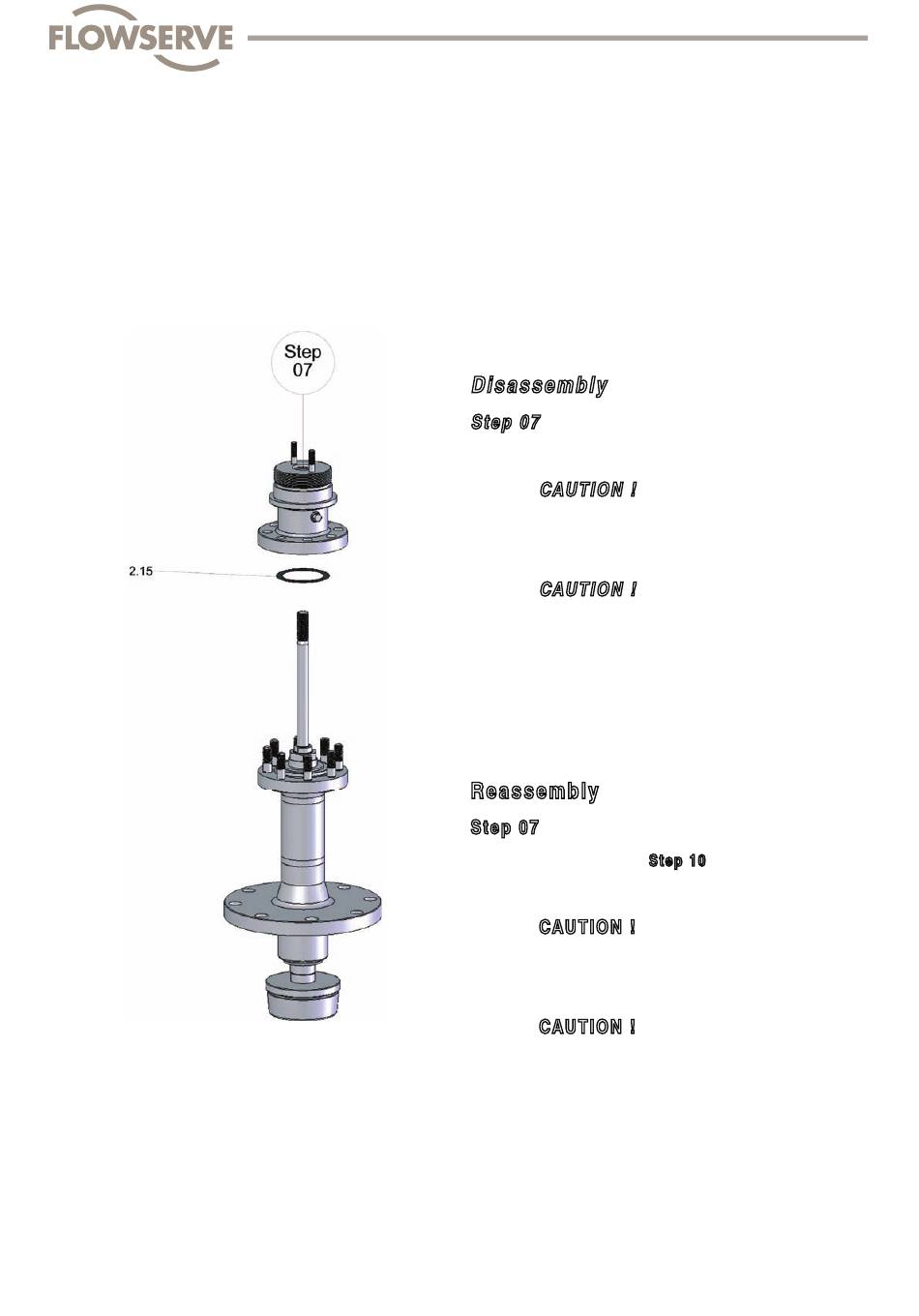

Di s as s em b ly
S tep 07
R ea s s em bly
S tep 07
After work step "Reassembly"
• Remove head piece
CAU TIO N !
Ensure it hangs vertically !
• Remove gasket (2.15)
CAU TIO N !
Remove remains of gasket (2.15) in the body
and on the head piece.
Do not damage sealing surface !
S tep 1 0
• Insert gasket (2.15)
CAU TIO N !
Use new gasket (2.15) !
• Put head piece in place
CAU TIO N !
Ensure it hangs vertically !
