Trim Type
Data Field 3

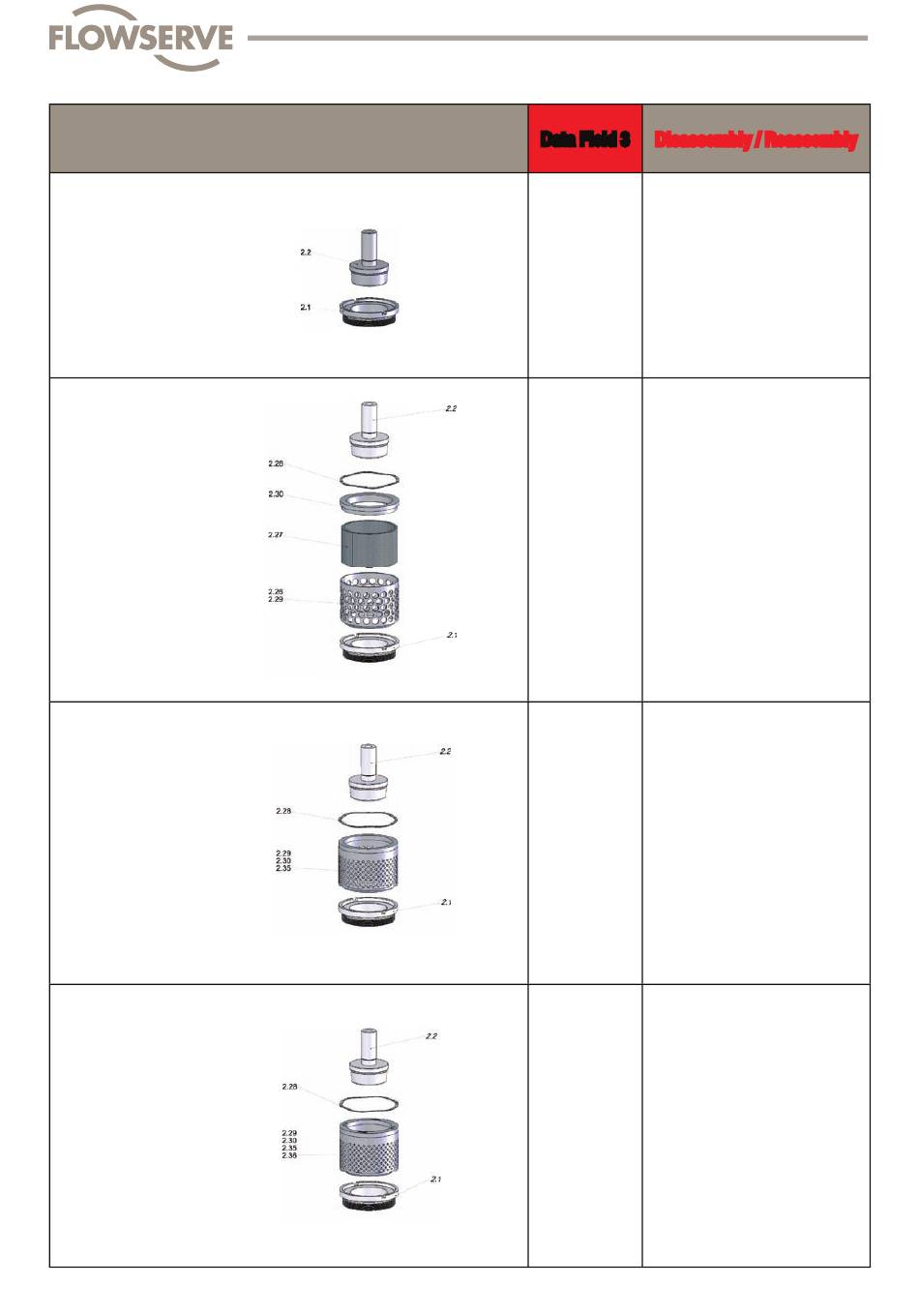

Disassembly / Reassembly
PONx1xx
Disassembly / Reassembly
PODx1xx
2.1 Screwed seat
POKx1xx
. Plug
POWx1xx
POHx1xx
as described !
Disassembly / Reassembly
2.1 Screwed seat
. Plug
as described, additionally
however
PKxx1xx
2.29 Internal ring
.6 Perforated cage
.7 Wire netting
.30 Space bush
.8 Pressure spring
insert in the sequence shown !
Disassembly / Reassembly
2.1 Screwed seat
. Plug
as described, additionally
PCxx1xx
however
PDxx1xx
2.29 Internal ring
.30 Space bush
.35 Perforated cage 1
.8 Pressure spring
insert in the sequence shown !
Disassembly / Reassembly
2.1 Screwed seat
. Plug
as described, additionally
however
PExx1xx
PFxx1xx
2.29 Internal ring
.30 Space bush
.35 Perforated cage 1
.36 Perforated cage
.8 Pressure spring
insert in the sequence shown !
