Flowserve FlowTop V726 Disassembly And Reassembly Instructions page 17

All manuals and user guides at all-guides.com

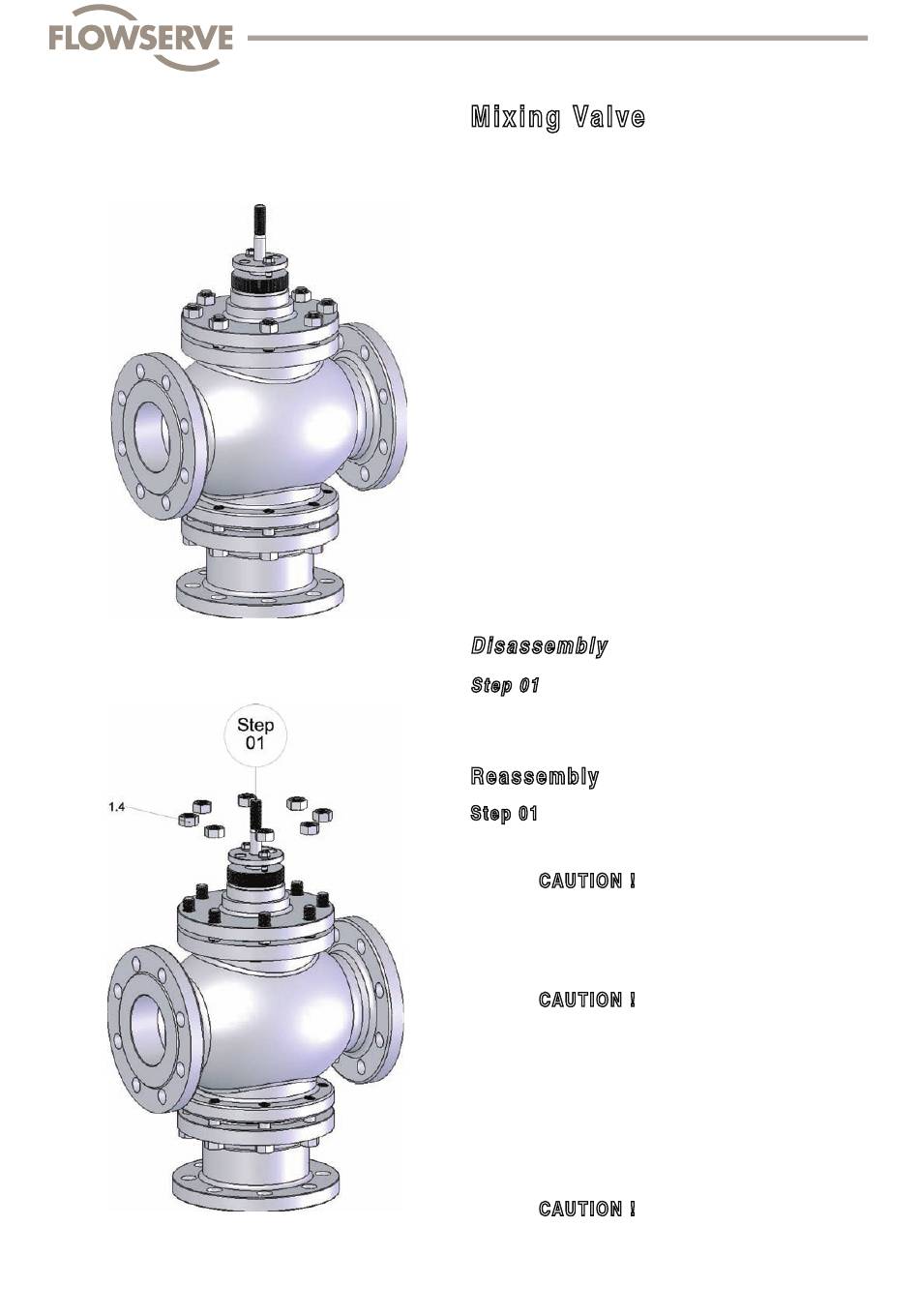

M ix i n g Va lve
SPM - Code : V7xx WxVNA . . . MOTP2LG
Di s as s em b ly
S tep 01
R ea s s em bly
S tep 01
• Unscrew hexagon nuts (1.4)
• Grease stud screws
CAUT IO N !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUT IO N !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
When tightening the nuts pay attention to the
alignment of the plug (do not rub or insert the
plug in the open / closed movement)
• Tighten the hexagon nuts of the compression gland (3.6)
using the torque wrench
CAUT IO N !
Tightening moment of the hexagon nuts (3.6)
as per Variant drawing (Page 61 - 63)
Schmidt Armaturen
AI - FlowTop
17
