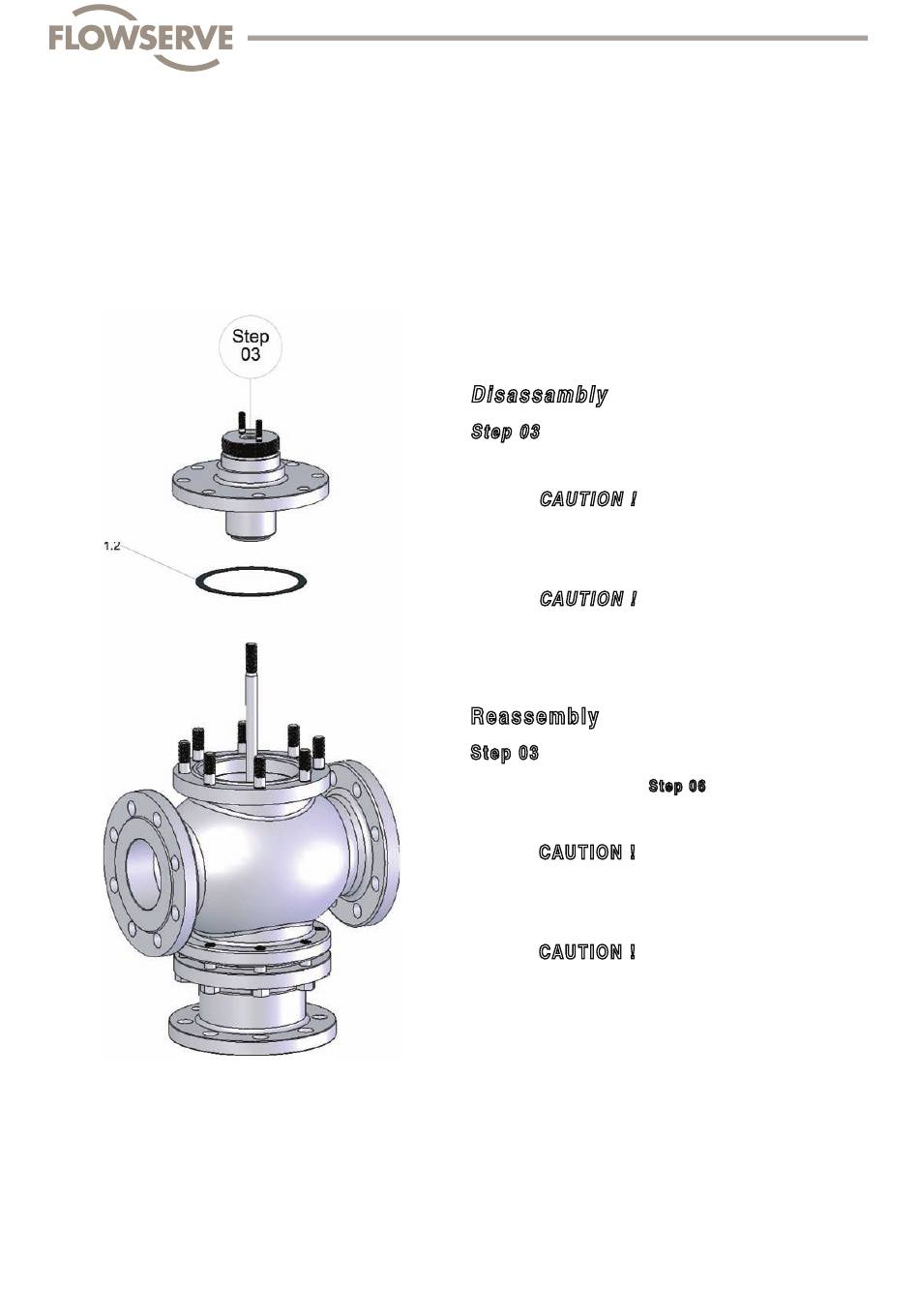

Di s as s am b ly
S tep 03
R ea s s em bly
S tep 03
After work step "Reassembly"
Lift bonnet off
CAU TIO N !
Do not damage stem surface !
Remove fl at gasket (1.2)
CAU TIO N !
Remove remains of fl at gasket (1.2) in the body
and on the bonnet.
Do not damage sealing surface !
S tep 0 6
• Insert fl at gasket (1.2)
CAU TIO N !
Use new fl at gasket (1.2) !
• Put cover in place
CAU TIO N !
Do not damage stem surface !
Schmidt Armaturen
AI - FlowTop
19
