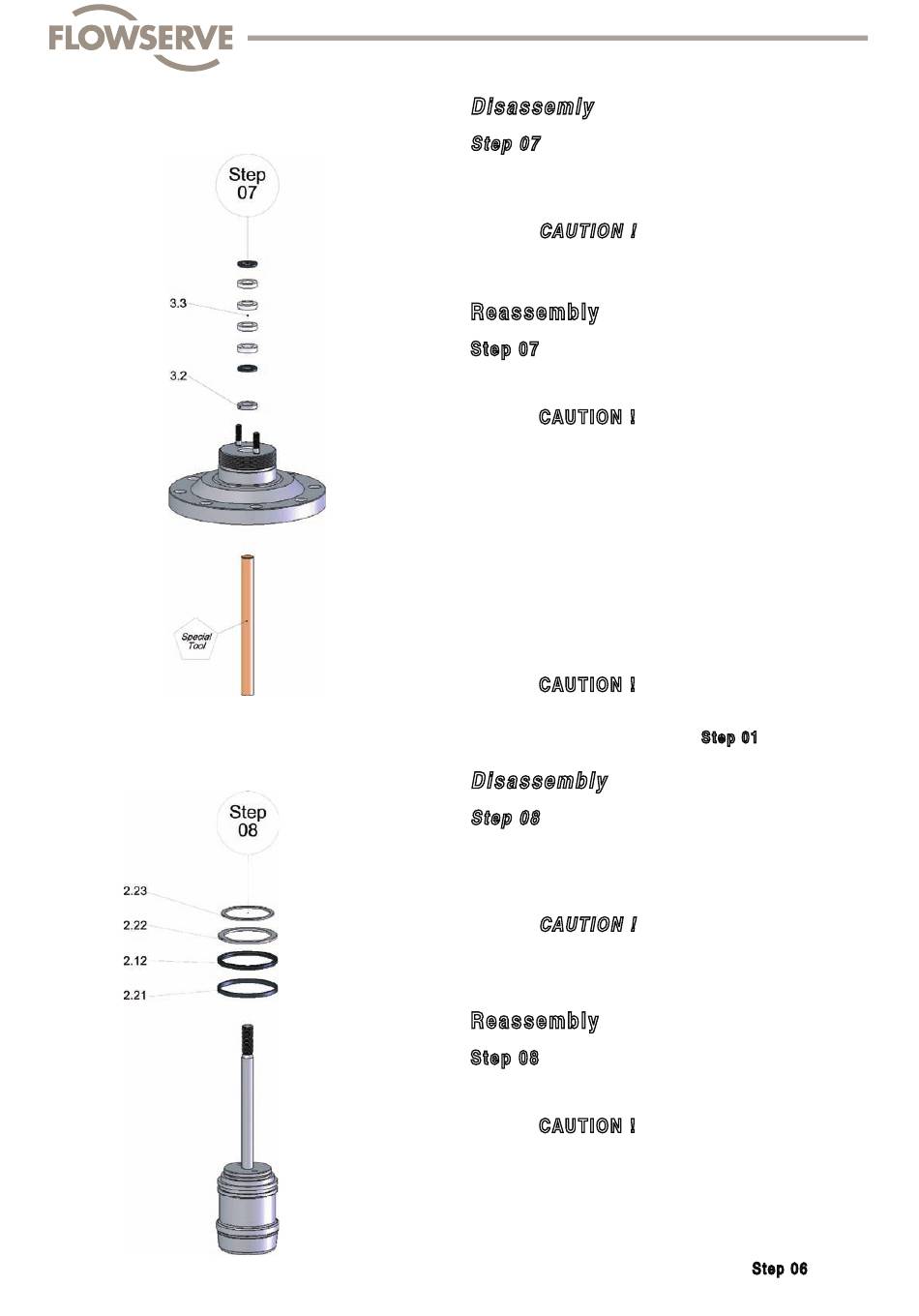

Di s as s em ly
S tep 07
R ea s s em bly
S tep 07
Reassembly takes place in reverse order.
Di s as s em b ly
S tep 08
R ea s s em bly
S tep 08
Reassembly takes place in reverse order.
Remove packing (3.3) and bottom ring (3.2)
with Special Tool
(Packing driver tool)
CAU TIO N !
Do not damage packing area and guide !
CAU TIO N !
Clean parts, check packing area and guide for
damage, grease stud screws!
( Damage to the packing packing area will lead to early
leaks in the packing unit )
Lubrication as per Table 06 (Page 65)
The packing unit is confi gurated as per the
variant drawing (Page 61 - 63)
Use new packing (3.3) !
Tighten hexagon nuts (3.6 / 3.9) by hand fi rst
CAU TIO N !
The hexagon nuts (3.6 / 3.9) are tightened
at the "Reassembly" step
Remove driving band (2.21)
Remove circlip for shafts (2.23)
Remove ring (2.22) and balancing seal ring (2.12)
CAUT IO N !
Do not damage stem and plug !
CAU TIO N !
Clean parts, check sealing surfaces for damage
and renew if necessary.
Push balancing seal ring (2.12) on the plug
Lay ring (2.22) in place
Secure using circlip for shafts (2.23)
Only insert guide band at "Reassembly"
Schmidt Armaturen
AI - FlowTop
S te p 01
Step
06
41
