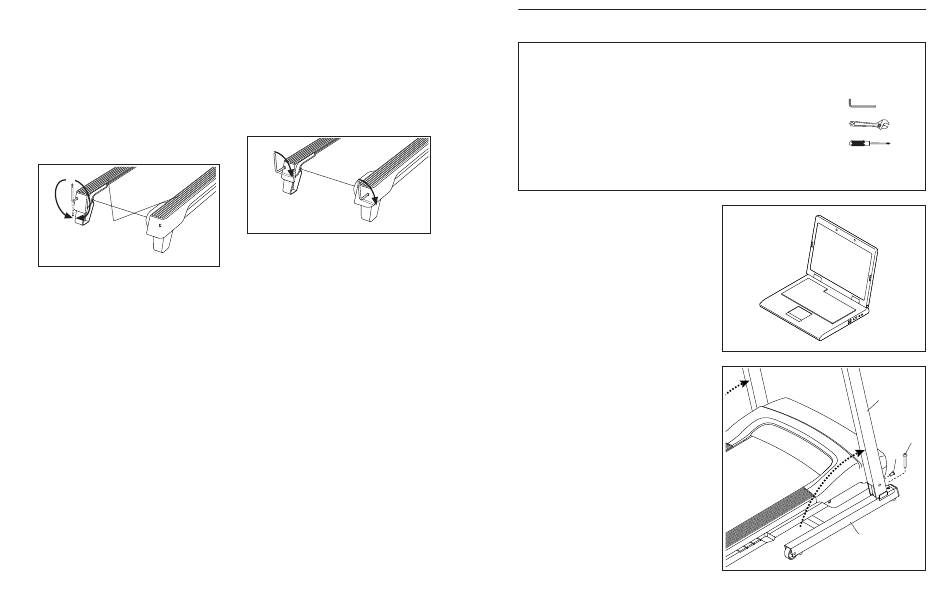

SYMPTOM: The walking belt is off-center
a. IMPORTANT: The walking belt should be cen-
tered between the foot rails. If the walking belt
rubs against the foot rails, the walking belt may
become damaged. First, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the hex key to turn the
left idler roller screw clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the left
idler roller screw counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Then,
plug in the power cord, insert the key, and walk on
the treadmill for a few minutes. Repeat until the
walking belt is centered.
a
Foot
Rails
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
a
22

ASSEMBLY

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• To identify small parts, see page 6.
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
2. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise
the Uprights (76) to the vertical position.
Next, tighten an M10 x 60mm Screw (1) and an
M10 x 20mm Screw (24) into the Base (85) and
the right Upright (76) as shown; do not fully
tighten the Screws yet.
Repeat this step on the left side of the tread-
mill (not shown).
Then, tighten all four Screws (1, 24).
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
1
2
76
24
85
7
1
