ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
Part No. 396485 R0618A
Printed in China © 2018 ICON Health & Fitness, Inc.
Model No. PETL38817.2
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
iconeurope.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 105 CST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Form 105 CST

Summary of Contents for Pro-Form 105 CST

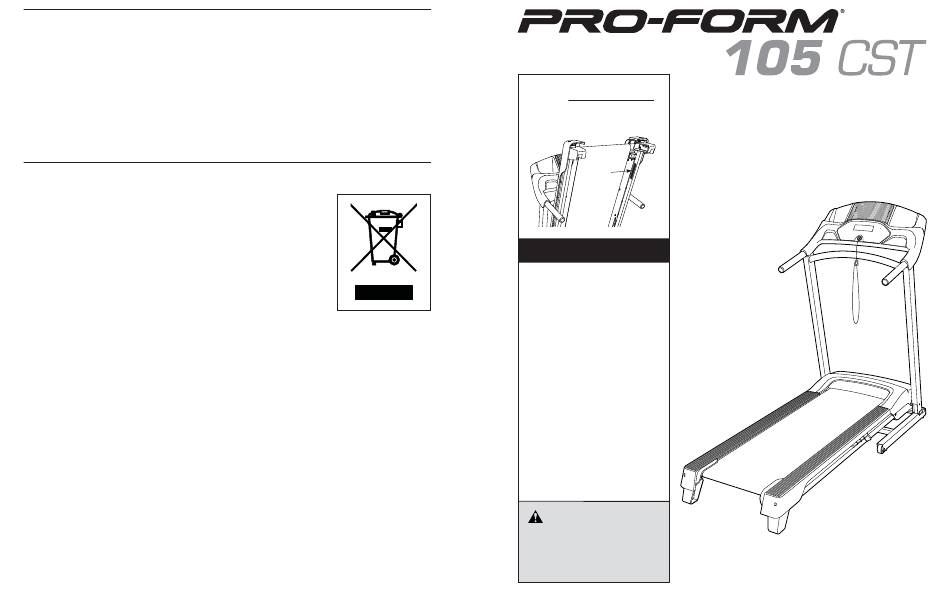

  • Page 1 ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) Model No.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS EXPLODED DRAWING C Model No. PETL38817.2 R0618A WARNING DECAL PLACEMENT ............. . . 2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS EXPLODED DRAWING B Model No. PETL38817.2 R0618A WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 EXPLODED DRAWING A 21. The treadmill is capable of high speeds. frame securely in the storage position. Do Model No. PETL38817.2 R0618A Adjust the speed in small increments to not operate the treadmill while it is folded. avoid sudden jumps in speed. 26.

  • Page 5: Before You Begin

    Thank you for selecting the new PROFORM 105 CST reading this manual, please see the front cover of this ® treadmill. The 105 CST treadmill offers a selection of manual. To help us assist you, note the product model M10 x 60mm Screw #8 Nut features designed to make your workouts at home number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART EXERCISE GUIDELINES Use the drawings below to identify small parts used for assembly. The number in parentheses below each Burning Fat—To burn fat effectively, you must exer- drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the WARNING: cise at a low intensity level for a sustained period of Before beginning this...

  • Page 7: Assembly

    SYMPTOM: The walking belt is off-center SYMPTOM: The walking belt slips when walked on ASSEMBLY a. IMPORTANT: The walking belt should be cen- a. First, remove the key and UNPLUG THE POWER tered between the foot rails. If the walking belt CORD.
  • Page 8 3. Attach the Left and Right Handrails (71, 72) to SYMPTOM: The displays of the console do not SYMPTOM: The walking belt slows when walked on the Uprights (76) with four M10 x 48mm Screws function properly (2); start all four Screws, and then tighten a.
  • Page 9 6. Raise the Frame (55) to the upright position. MAINTENANCE AND TROUBLESHOOTING Have a second person hold the Frame until step 7 is completed. MAINTENANCE c. Check the power switch located on the treadmill Remove the M8 Nut (33) and the M8 x 32mm Bolt frame near the power cord.

  • Page 10: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO FOLD AND MOVE THE TREADMILL HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL This product must be earthed. If it should malfunc- 1.
  • Page 11 THE OPTIONAL CHEST HEART RATE MONITOR CONSOLE DIAGRAM HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, you can change Whether your the incline of the treadmill. There are two incline levels. goal is to Before changing the incline, remove the key and burn fat or to unplug the power cord.
  • Page 12 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE Display Test—This screen is intended to be used Demo Mode—The currently selected demo mode by service technicians to identify whether the option will appear in the display. The console IMPORTANT: If the treadmill has been exposed to 1.
  • Page 13 4. Follow your progress with the display. Scan mode—The console also has a scan mode 5. Disconnect your tablet from the console if THE SETTINGS MODE desired. that will display workout information in a repeating 1. Select the settings mode. The display can show the following workout cycle.
  • Page 14 5. Measure your heart rate if desired. HOW TO USE AN ONBOARD WORKOUT If the speed setting for the current segment is too HOW TO CONNECT YOUR TABLET TO THE high or too low, you can manually override the CONSOLE You can measure your heart rate using either the 1.
