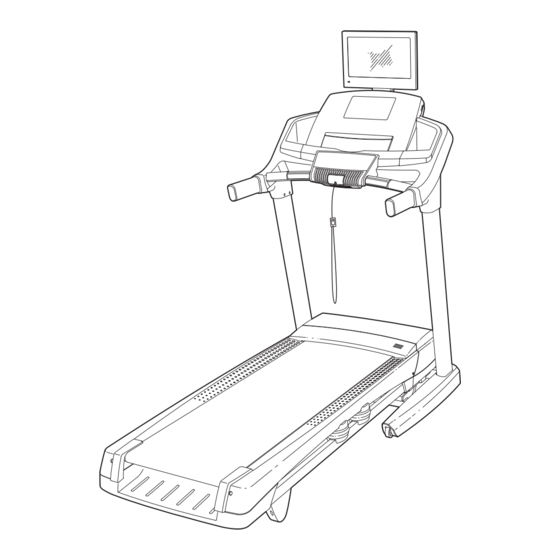

Pro-Form PERFORMANCE 1850 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.proform.com
USER'S MANUAL
Model No. PFTL20511.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PERFORMANCE 1850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Form PERFORMANCE 1850

Summary of Contents for Pro-Form PERFORMANCE 1850

  • Page 1 www.proform.com USER’S MANUAL Model No. PFTL20511.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 20. The heart rate monitor is not a medical 28. Over exercising may result in serious injury device. Various factors, including the user’s or death. If you feel faint or if you experience movement, may affect the accuracy of heart pain while exercising, stop immediately and rate readings.
  • Page 5 34. Upon completion of any service or repairs to 38. Use a jumper wire not smaller than No. 6 the treadmill or the television, ask the ser- AWG (13.3 mm ) copper, or the equivalent, vice technician to perform safety checks to when a separate antenna-grounding elec- confirm that the unit is in proper operating trode is used.

  • Page 6: Before You Begin

    PERFORMANCE 1850 treadmill. The manual. To help us assist you, please note the product ® PERFORMANCE 1850 treadmill offers an impres- model number and serial number before contacting us. sive selection of features designed to make your The model number and the location of the serial num- workouts at home more enjoyable and effective.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 8: Assembly

    ASSEMBLY • To hire an authorized service technician to • To identify small parts, see page 7. assemble the treadmill, call 1-800-445-2480. • Assembly requires the following tools: • Assembly requires two persons. the included hex key • Place all parts in a cleared area and remove the packing materials.
  • Page 9 3. Identify the Left Upright (89), which is marked with a “Left” sticker or an “L” sticker. Have a sec- ond person hold the Left Upright near the Base (94). See the inset drawing. Tie the wire tie in the Wire Left Upright (89) securely around the end of the Upright Wire (81).
  • Page 10 5. Identify the Left Base Cover (82) and the Right Base Cover (83). Slide the Left Base Cover onto the Left Upright (89). Slide the Right Base Cover onto the Right Upright (90). Do not press the Base Covers into place yet. Identify the Left Upright Cover (79) and the Right Upright Cover (80).
  • Page 11 7. Attach the Left Handrail (88) to the Left Upright (89) with two 5/16" x 1" Screws (5), two 5/16" Star Washers (11), and a 5/16" x 1 1/4" Bolt (4). Do not tighten the Screws and Bolt yet. Attach the Right Handrail (87) in the same way.
  • Page 12 10. With the help of a second person, hold the con- sole assembly near the Left Handrail (88). Connect the Upright Wire (81) to the console Console wire. See the inset drawing. The connectors Assembly should slide together easily and snap into place.
  • Page 13 13. Slide the Left Handrail Cover (85) onto the Left Handrail (88). Slide the Right Handrail Cover (86) onto the Right Handrail (87). Attach each Handrail Cover with a #8 x 1/2" Screw (1). 14. Hold the Left Upright Cover (79) against the console assembly.
  • Page 14 16. IMPORTANT: See page 18 and plug in the power cord. Next, see page 22 and turn on IMPORTANT: the power. Make sure to follow all instructions in this step. See page 30; follow steps 1, 2, and 4. When the frame stops moving, remove the key from the console and unplug the power cord.
  • Page 15 18. Attach the Rear Feet (57) to the Frame (56) as shown with four #8 x 3/4" Screws (2). Lower the Frame (56) (see HOW TO LOWER THE TREADMILL FOR USE on page 37). 19. Press the Grommet (77) into the square hole in the Base (94).
  • Page 16 21. With the help of a second person, hold the TV TV Assembly assembly near the console assembly, and con- nect the wires. Attach the TV assembly to the back of the con- sole assembly with four 1/4" x 3/4" Screws (116). Be careful not to pinch any wires.

  • Page 17: The Chest Heart Rate Monitor

    THE CHEST HEART RATE MONITOR HOW TO PUT ON THE HEART RATE MONITOR • Do not expose the heart rate monitor to direct sun- light for extended periods of time; do not expose it to The heart rate temperatures above 122° F (50° C) or below 14° F monitor consists of (-10°...

  • Page 18: How To Connect The Treadmill

    HOW TO CONNECT THE TREADMILL HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.
  • Page 19 Before operating the 15" digital TV, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm terminal, an AV cable to the audio/video input jack, or an HDMI cable to the HDMI input jack. Note: Use a CATV cable to connect to an external source such as a cable box, satellite TV box, VCR, or analog cable.
  • Page 20 HOW TO CONNECT A VCR, DVD PLAYER, OR HOW TO CONNECT A DVD OR BLU-RAY PLAYER OTHER DEVICE USING AN AV CABLE OR OTHER DEVICE USING AN HDMI CABLE 1. Connect the three-pronged end of an RCA AV 1. Connect one end of an HDMI Cable to your DVD or Cable to your VCR, DVD player, or other device.

  • Page 21: Operation And Adjustment

    OPERATION AND ADJUSTMENT CONSOLE DIAGRAM FEATURES OF THE CONSOLE When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a The treadmill console offers an impressive array of button. features designed to make your workouts more effec- tive and enjoyable.
  • Page 22 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN IMPORTANT: If the treadmill has been exposed to The console features a tablet with a full-color touch cold temperatures, allow it to warm to room tem- screen. The following information will help you become perature before you turn on the power.
  • Page 23 HOW TO SET UP THE CONSOLE The console is now ready for you to begin working out. The following pages explain the various workouts and Before using the treadmill for the first time, set up the other features that the console offers. console.
  • Page 24 HOW TO USE THE MANUAL MODE Each time you press one of the buttons, the incline will gradually change until it reaches the selected 1. Insert the key into the console. incline setting. See HOW TO TURN ON THE POWER on page Note: The first time you adjust the incline, you must 22.
  • Page 25 7. Turn on the fan if desired. If desired, adjust the volume by pressing the Vol increase and decrease buttons on the console. The fan features multiple speed settings and an To pause the workout, touch one of the menu but- auto mode.
  • Page 26 HOW TO USE AN ONBOARD WORKOUT If the speed and/or incline settings are too high or too low at any time during the workout, you can 1. Insert the key into the console. override the settings by pressing the Speed or Incline buttons.
  • Page 27 HOW TO USE A SET-A-GOAL WORKOUT The workout will function in the same way as the manual mode (see pages 24 and 25). 1. Insert the key into the console. The workout will continue until you reach the goal See HOW TO TURN ON THE POWER on page 22. that you set.
  • Page 28 HOW TO USE AN IFIT LIVE WORKOUT Before some workouts will download, you must add them to your schedule on iFit.com. Note: To use an iFit Live workout, you must have For more information about the iFit Live work- access to a wireless network (see HOW TO USE THE outs, please see www.iFit.com.
  • Page 29 HOW TO USE THE EQUIPMENT SETTINGS MODE in a store. While the demo mode is turned on, the console will function normally when you plug in The console features an equipment settings mode the power cord, press the power switch into the that allows you to select a language, the unit of mea- reset position, and insert the key into the console.
  • Page 30 HOW TO USE THE MAINTENANCE MODE Note: Occasionally, a firmware update may cause your console to function slightly differently. These The console features a maintenance mode that allows updates are always designed to improve your exer- you to update the console firmware, calibrate the cise experience.
  • Page 31 HOW TO USE THE WIRELESS NETWORK MODE An information box will ask if you want to connect to the wireless network. Touch the Connect button The console features a wireless network mode that to connect to the network or touch the Cancel but- allows you to set up a wireless network connection.
  • Page 32 HOW TO USE THE STEREO SOUND SYSTEM HOW TO USE THE INTERNET BROWSER To play music or audio books through the console’s Note: To use the browser, you must have access to speakers, you must connect your MP3 player, CD a wireless network including an 802.11b/n router with player, or other personal audio player to the console.
  • Page 33 HOW TO OPERATE THE 15" DIGITAL TV TO USE THE REMOTE CONTROL on page 34). When the volume is adjusted, a graphic will appear The 15" digital TV can be controlled on-screen to show which volume setting is selected. with the control buttons found on your 5.
  • Page 34 HOW TO USE THE REMOTE CONTROL Press the Display button to view information about the current program and the broadcast or cable signal. The first time you use the remote control, insert batteries (see HOW Press the CC button repeatedly to turn on or turn off TO REPLACE THE BATTERIES IN closed captioning.
  • Page 35 HOW TO ADJUST THE TELEVISION SETTINGS 4. Adjust the channel settings. The 15" digital TV has a menu that allows you to adjust The Channel menu allows you to save channels and personalize television settings. in the TV memory and select settings for chan- nels.
  • Page 36 5. Adjust the parental control settings. Select Menu Language to change the language used in the menus. The Parental menu allows you to block or allow various settings on the 15" digital TV. Select Clock to adjust the TV clock’s time zone, auto setting, time setting, day of the week setting, First, enter the Lock Parental Code password, and daylight saving time setting.

  • Page 37: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero percent before you fold the treadmill. left.

  • Page 38: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by follow- c. Remove the key from the console, and then ing the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. d.
  • Page 39 Locate the Reed Switch (52) and the Magnet (50) When the walking belt is properly tightened, you on the left side of the Pulley (49). Turn the Pulley should be able to lift each edge of the walking belt until the Magnet is aligned with the Reed Switch. 2 to 3 in.
  • Page 40 SYMPTOM: The walking belt is off-center or slips SYMPTOM: The iFit Live mode does not function when walked on correctly a. If the walking belt is off-center, first remove the a. If the iFit Live mode is not functioning correctly, key and UNPLUG THE POWER CORD.
  • Page 41 SYMPTOM: The volume cannot be turned up • Ignition (black spots or horizontal streaks that appear or a picture that flutters or drifts)—Usually a. If there is no sound coming from the television, this is caused by interference from automobile igni- make sure that the television audio is not muted.

  • Page 42: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 43: Part List

    PART LIST Model No. PFTL20511.0 R0612A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw Short Hex Key #8 x 3/4" Screw Motor Hood 3/8" x 2" Bolt Hood Accent 5/16" x 1 1/4" Bolt Incline Frame Spacer 5/16"...

  • Page 44: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL20511.0 R0612A...
  • Page 45 EXPLODED DRAWING B Model No. PFTL20511.0 R0612A...
  • Page 46 EXPLODED DRAWING C Model No. PFTL20511.0 R0612A...
  • Page 47 EXPLODED DRAWING D Model No. PFTL20511.0 R0612A...

  • Page 48: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
