PART LIST
Key No. Qty.
Description
1
2
M10 x 60mm Screw
2
4
M10 x 48mm Screw
3
24
M4.2 x 19mm Screw
4
2
1/4" Washer
5
4
M4 x 13mm Washer Head Screw
6
2
M8 x 35mm Flat Head Screw
7
1
M8 x 32mm Bolt
8
1
M8 x 52mm Bolt
9
7
M4 x 13mm Pan Head Screw
10
4
M4 x 19mm Tek Screw
11
5
M4.2 x 19mm Screw
12
9
M4 x 10mm Screw
13
4
M8 x 30mm Screw
14
4
M4 x 13mm Screw
15
2
M6 x 70mm Screw
16
2
1/4" x 9/16" Screw
17
1
M8 x 102mm Bolt
18
2
M8 x 20mm Screw
19
2
3/8" x 2" Bolt
20
2
M8 x 40mm Screw
21
2
M10 x 110mm Screw
22
1
M6 x 60mm Screw
23
4
M6 Star Washer
24
2
M10 x 20mm Screw
25
2
M8 Star Washer
26
4
M4 Star Washer
27
14
Foot Rail Flat Washer
28
1
Ground Wire
29
6
#8 Washer
30
2
M10 Star Washer
31
2
M10 Washer
32
2
M8 Flange Nut
33
6
M8 Nut
34
1
M6 Nut
35
2
M10 Nut Insert
36
1
M8 Motor Nut
37
2
3/8" Jam Nut
38
3
Hood Clip
39
2
M8 Rear Foot Nut
40
1
Left Foot Rail
41
1
Right Foot Rail
42
1
Left Idler Roller Bracket
43
1
Right Idler Roller Bracket
44
1
Idler Roller
45
1
Warning Decal
46
1
Left Platform Cushion
47
1
Right Platform Cushion
48
1
#8 x 3/4" Truss Head Screw
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
Model No. PETL38817.2 R0618A
Key No. Qty.
Description
49
1
#8 Nut
50
2
Belt Guide
51
1
Walking Belt
52
1
Drive Roller/Pulley
53
1
Motor Belt
54
1
Walking Platform
55
1
Frame
56
1
Right Rear Foot
57
1
Left Rear Foot
58
1
Motor Hood
59
1
Motor Bracket
60
1
Drive Motor
61
1
Controller Bracket
62
1
Electronics Bracket
63
1
Controller
64
1
Power Cord
65
1
Belly Pan Grommet
66
1
Power Switch
67
1
Belly Pan
68
4
Cable Tie
69
1
Releasable Tie
70
4
Handrail Cap
71
1
Left Handrail
72
1
Right Handrail
73
1
Wire Tie
74
1
Console Base
75
1
Console
76
1
Upright
77
1
Storage Latch
78
1
Upright Wire
79
1
Key/Clip
80
1
Upper Upright Grommet
81
1
Lower Upright Grommet
82
2
Frame Spacer
83
2
Base Cap
84
4
Base Pad
85
1
Base
86
2
Wheel
87
1
#8 x 3/4" Machine Screw
88
1
Reed Switch
89
1
Reed Switch Clamp
90
1
Receptacle
91
1
Filter
92
1
Motor Isolator
93
2
Motor Bushing
94
1
Magnet
*
–
User's Manual
24
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM
105 CST
®
treadmill. The 105 CST treadmill offers a selection of
features designed to make your workouts at home
more effective. And when you're not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after
Length: 5 ft. 4 in. (163 cm)
Width: 2 ft. 6 in. (76 cm)
Weight: 117 lbs. (53 kg)
Handrail
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

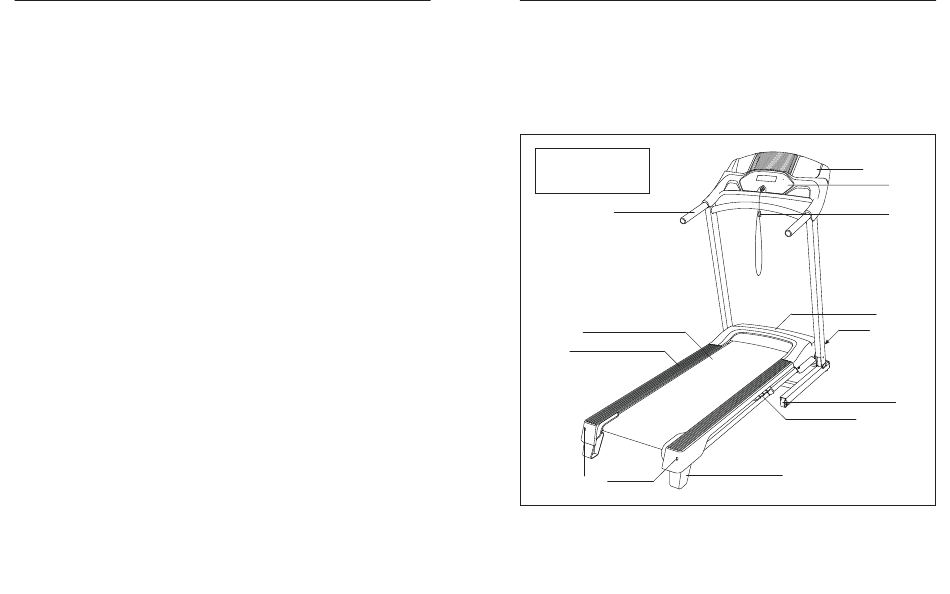

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Accessory Tray
Console
Key/Clip
Motor Hood
Power Switch
Wheel
Platform Cushion
Incline Foot
