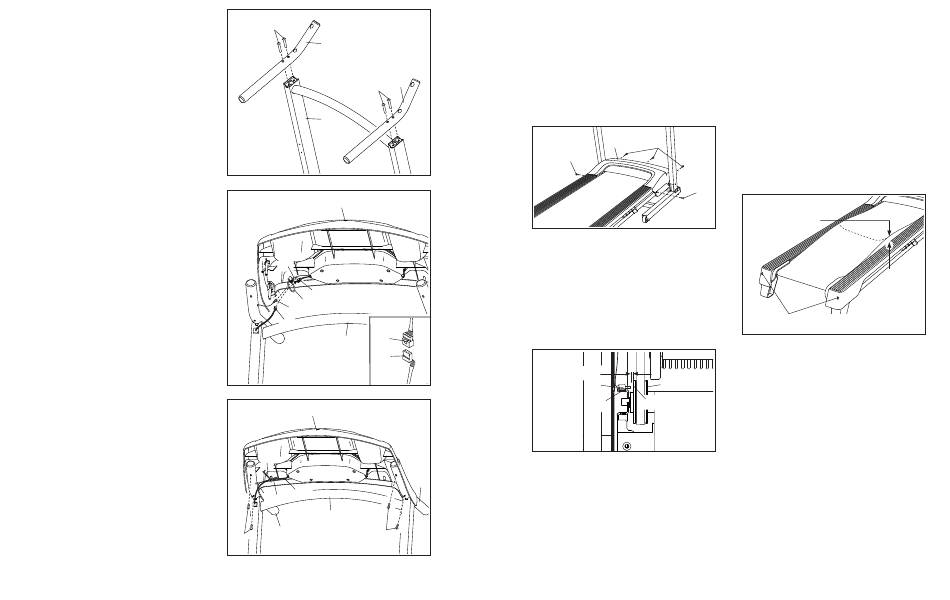

3. Attach the Left and Right Handrails (71, 72) to
the Uprights (76) with four M10 x 48mm Screws
(2); start all four Screws, and then tighten
them.
4. With the help of a second person, hold the con-
sole assembly (A) near the Uprights (76).
Insert the Upright Wire (78) and the Ground Wire
(28) through the looped tie (B) on the back of the
console assembly (A).
Connect the Upright Wire (78) to the console
wire (C), and connect the Ground Wire (28) to
the console ground wire (D). The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
5. Attach the console assembly (A) to the Uprights
(76) and to the Left and Right Handrails (71, 72)
with four M4.2 x 19mm Screws (3); start all four
Screws, and then tighten them. Be careful not
to pinch the wires.
Next, insert the connectors on the wires
(C, D, 78, 28) into the console assembly (A).
Then, pull the tie (B) tight around the Upright
Wire (78), and cut off the end of the tie.
3
2
71
72
2
76
4
A
D
C
B
28
78
C
76
78
5
A
B
C,D
78, 28
76
72
3
3
8
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Place the treadmill in
the storage position (see HOW TO FOLD THE
TREADMILL on page 19).
Next, remove the five indicated M4.2 x 19mm
Screws (11). Then, carefully remove the Motor
Hood (58).
11
Locate the Reed Switch (88) and the Magnet (94)
on the left side of the Pulley (52). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the #8 x 3/4" Truss Head Screw (48),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Motor Hood (not shown),
and walk on the treadmill for a few minutes to check
for a correct speed reading.
Top
View
1/8 in.
80 48
71
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
58 11
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and walk on
the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
11
b
Idler Roller Screws
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
52
instructed to do so by an authorized service
representative. Such substances may deterio-
88 94
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
21
2 ) cord that is no longer
2–3 in.
