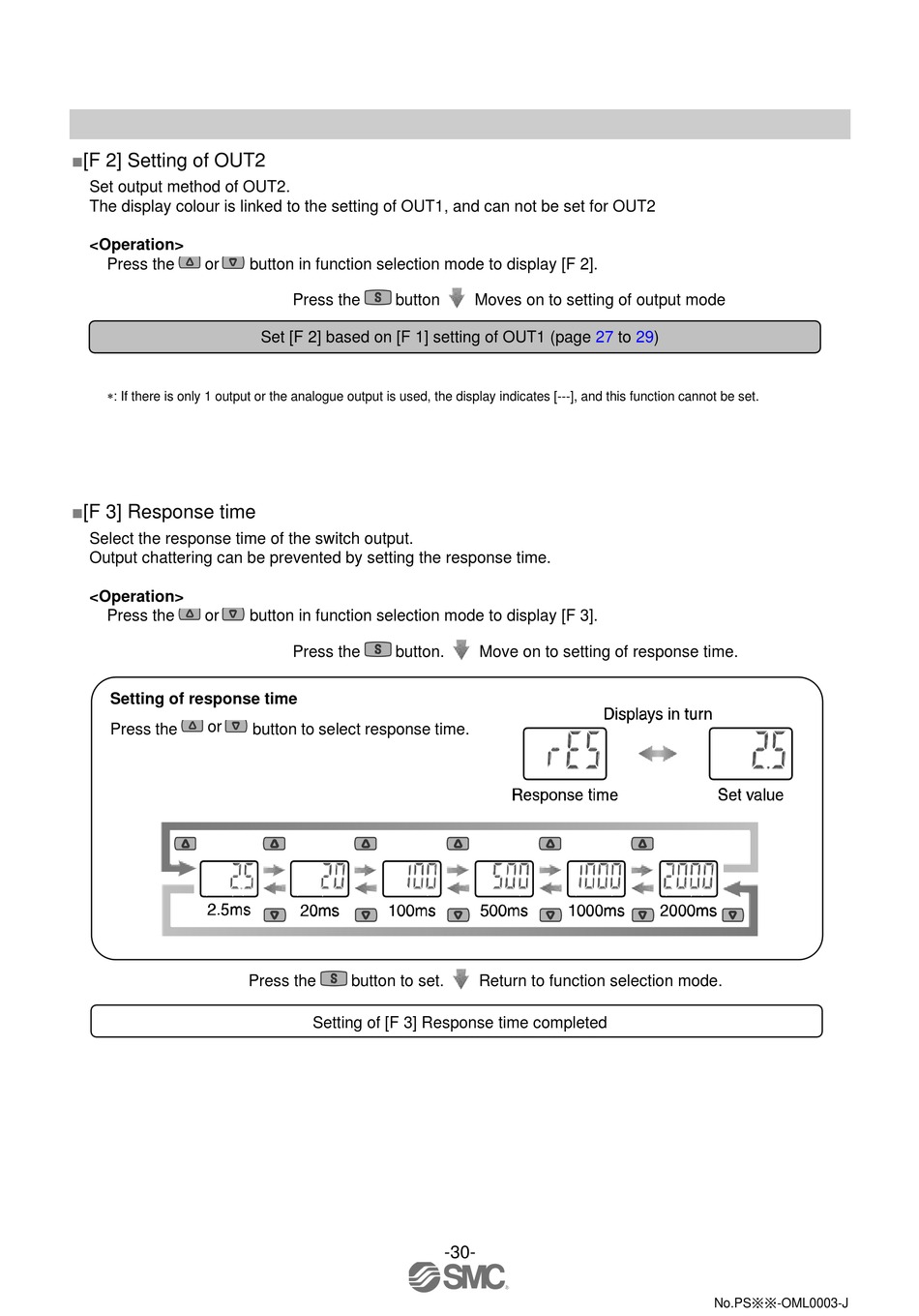

■[F 2] Setting of OUT2
Set output method of OUT2.
The display colour is linked to the setting of OUT1, and can not be set for OUT2
<Operation>
Press the or
∗: If there is only 1 output or the analogue output is used, the display indicates [---], and this function cannot be set.
■[F 3] Response time
Select the response time of the switch output.
Output chattering can be prevented by setting the response time.
<Operation>
Press the or
Setting of response time
or
Press the
button in function selection mode to display [F 2].
Press the button
Set [F 2] based on [F 1] setting of OUT1 (page
button in function selection mode to display [F 3].
Press the button.
button to select response time.
Press the button to set.
Setting of [F 3] Response time completed
Moves on to setting of output mode
27
Move on to setting of response time.
Return to function selection mode.
-30-
to 29)
No.PS※※-OML0003-J
