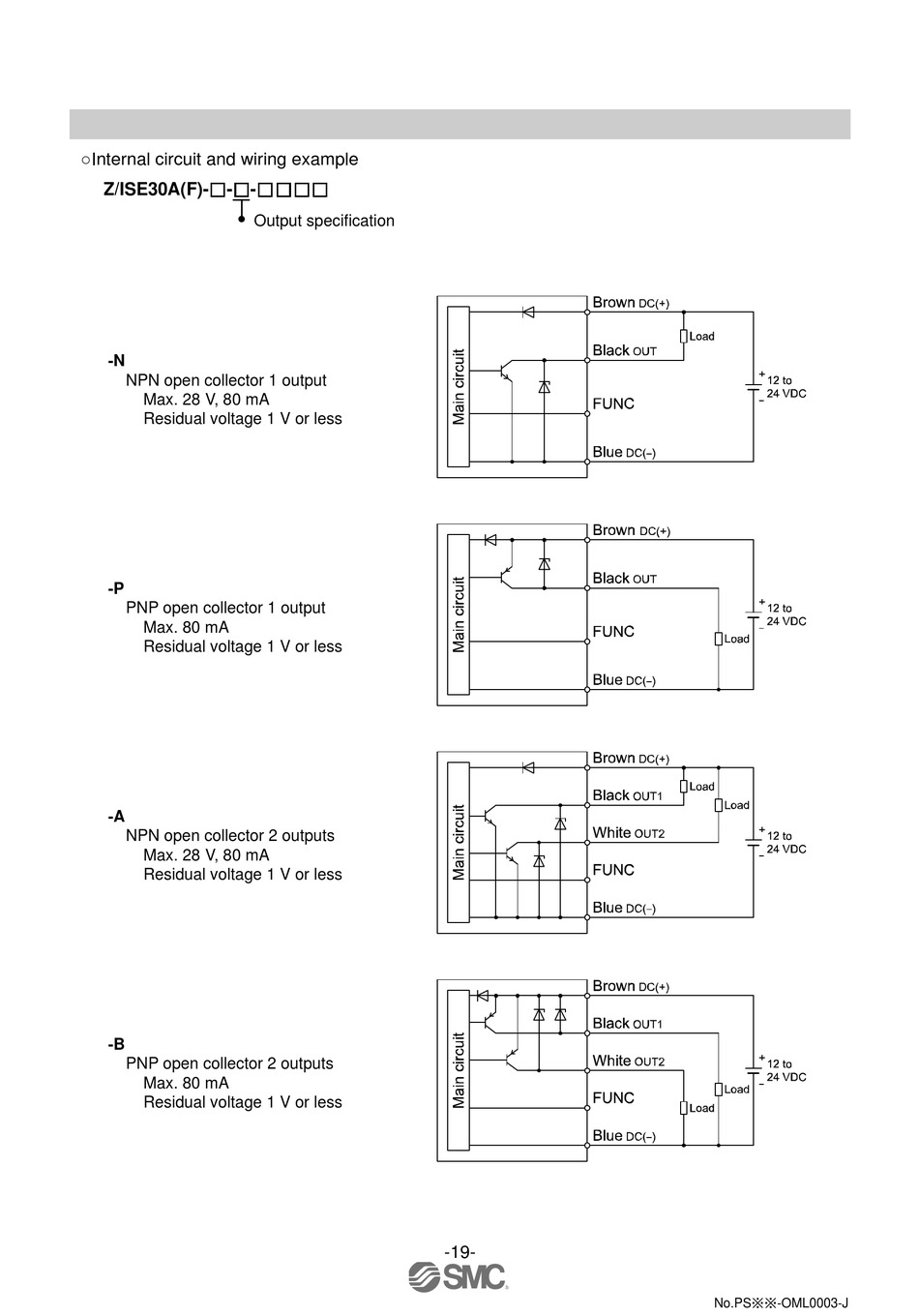

○Internal circuit and wiring example
Z/ISE30A(F)- - -
Output specification
-N
NPN open collector 1 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
-P
PNP open collector 1 output
Max. 80 mA
Residual voltage 1 V or less
-A
NPN open collector 2 outputs
Max. 28 V, 80 mA
Residual voltage 1 V or less
-B
PNP open collector 2 outputs
Max. 80 mA
Residual voltage 1 V or less
-19-
No.PS※※-OML0003-J
