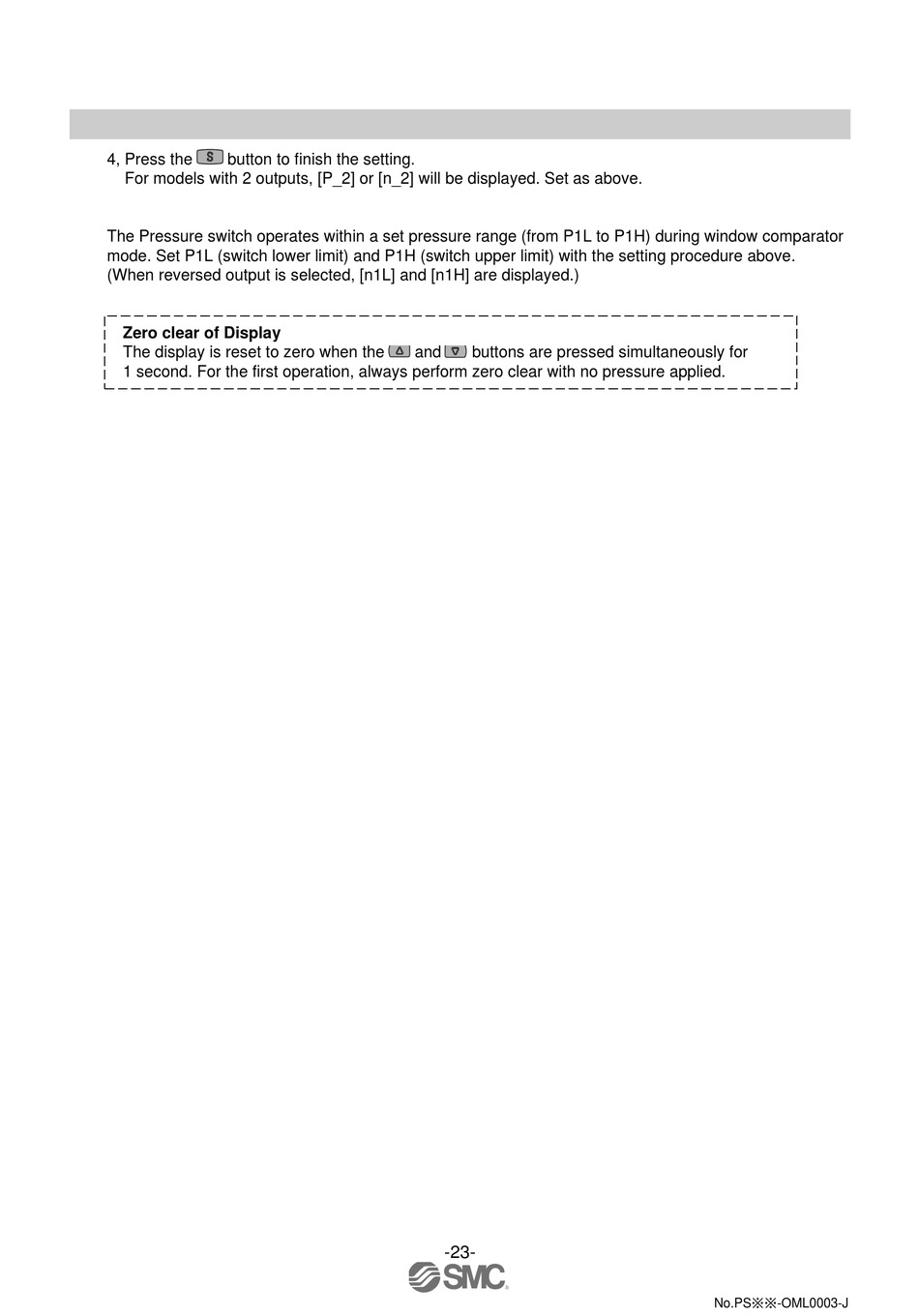

4, Press the
button to finish the setting.
For models with 2 outputs, [P_2] or [n_2] will be displayed. Set as above.
The Pressure switch operates within a set pressure range (from P1L to P1H) during window comparator
mode. Set P1L (switch lower limit) and P1H (switch upper limit) with the setting procedure above.
(When reversed output is selected, [n1L] and [n1H] are displayed.)
Zero clear of Display
The display is reset to zero when the
1 second. For the first operation, always perform zero clear with no pressure applied.
and
buttons are pressed simultaneously for
-23-
No.PS※※-OML0003-J
