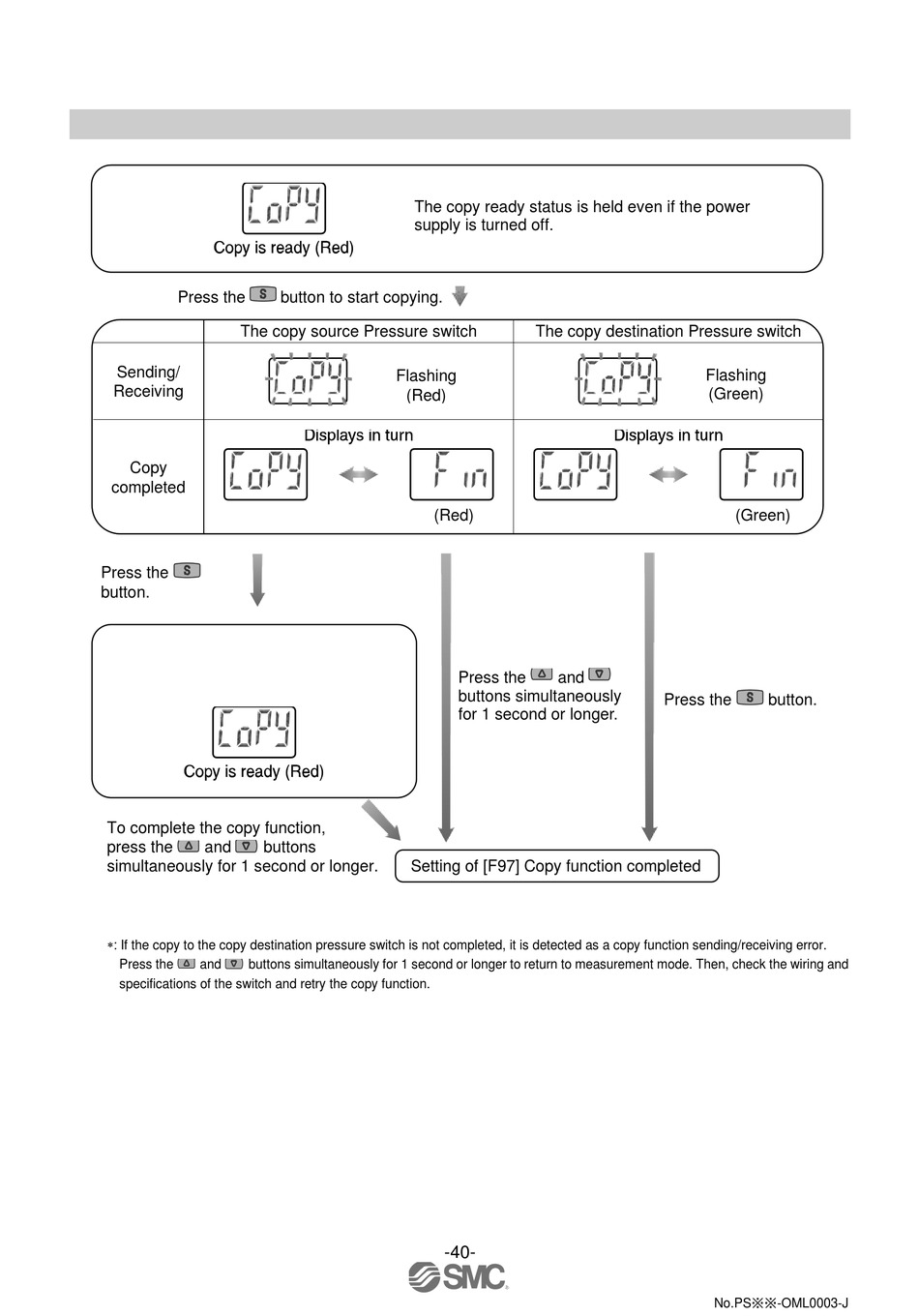

Press the
The copy source Pressure switch
Sending/
Receiving
Copy
completed
Press the
button.
To complete the copy function,
press the
and
buttons
simultaneously for 1 second or longer.
∗: If the copy to the copy destination pressure switch is not completed, it is detected as a copy function sending/receiving error.
Press the
and
buttons simultaneously for 1 second or longer to return to measurement mode. Then, check the wiring and
specifications of the switch and retry the copy function.
The copy ready status is held even if the power
supply is turned off.
button to start copying.
Flashing
(Red)
(Red)
Setting of [F97] Copy function completed
-40-
The copy destination Pressure switch
Press the
and
buttons simultaneously
for 1 second or longer.
Flashing
(Green)
(Green)
Press the
button.
No.PS※※-OML0003-J
