SMC Networks ISE30A Series Operation Manual page 39

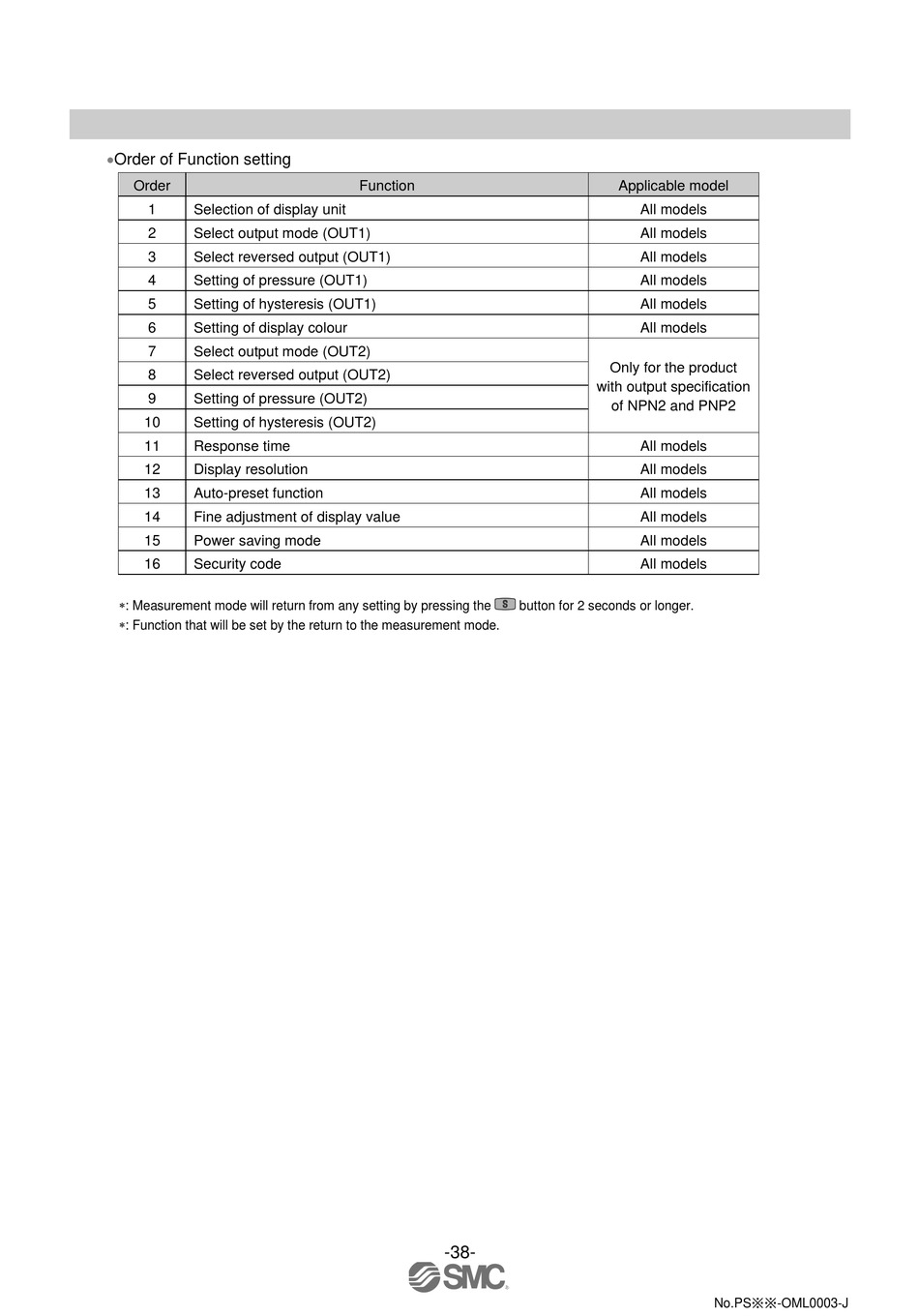

•Order of Function setting
Order
1 Selection of display unit
2 Select output mode (OUT1)
3 Select reversed output (OUT1)
4 Setting of pressure (OUT1)
5 Setting of hysteresis (OUT1)
6 Setting of display colour
7 Select output mode (OUT2)
8 Select reversed output (OUT2)
9 Setting of pressure (OUT2)
10 Setting of hysteresis (OUT2)
11 Response time
12 Display resolution
13 Auto-preset function
14 Fine adjustment of display value
15 Power saving mode
16 Security code
∗: Measurement mode will return from any setting by pressing the
∗: Function that will be set by the return to the measurement mode.
Function
button for 2 seconds or longer.
-38-
Applicable model
All models
All models
All models
All models
All models
All models
Only for the product
with output specification
of NPN2 and PNP2
All models
All models
All models
All models
All models
All models
No.PS※※-OML0003-J
