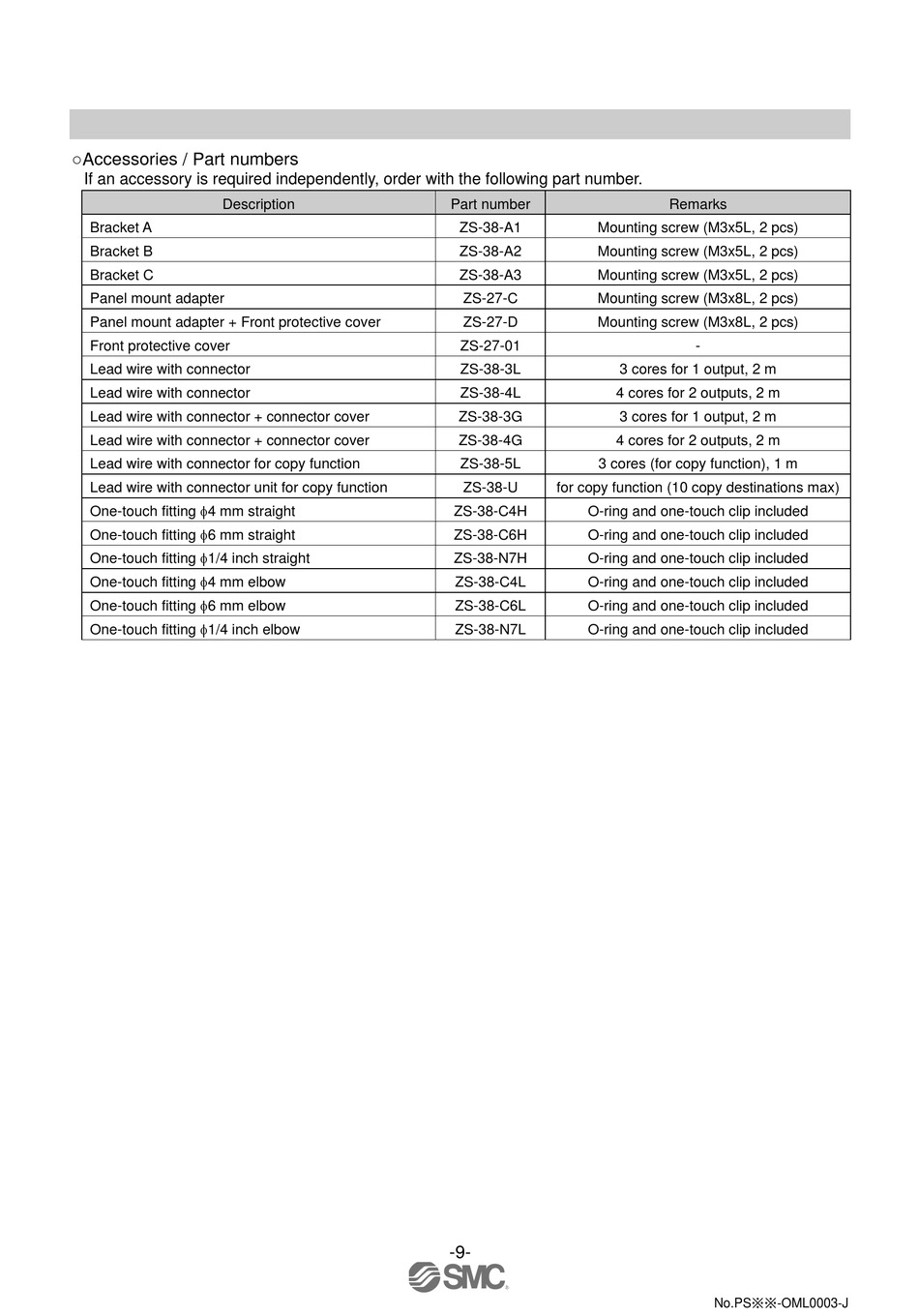

○Accessories / Part numbers
If an accessory is required independently, order with the following part number.
Description
Bracket A
Bracket B
Bracket C
Panel mount adapter
Panel mount adapter + Front protective cover
Front protective cover
Lead wire with connector
Lead wire with connector
Lead wire with connector + connector cover
Lead wire with connector + connector cover
Lead wire with connector for copy function
Lead wire with connector unit for copy function
One-touch fitting φ4 mm straight
One-touch fitting φ6 mm straight
One-touch fitting φ1/4 inch straight
One-touch fitting φ4 mm elbow
One-touch fitting φ6 mm elbow
One-touch fitting φ1/4 inch elbow
Part number
ZS-38-A1
Mounting screw (M3x5L, 2 pcs)
ZS-38-A2
Mounting screw (M3x5L, 2 pcs)
ZS-38-A3
Mounting screw (M3x5L, 2 pcs)
ZS-27-C
Mounting screw (M3x8L, 2 pcs)
ZS-27-D
Mounting screw (M3x8L, 2 pcs)
ZS-27-01
ZS-38-3L
3 cores for 1 output, 2 m
ZS-38-4L
4 cores for 2 outputs, 2 m
ZS-38-3G
3 cores for 1 output, 2 m
ZS-38-4G
4 cores for 2 outputs, 2 m
ZS-38-5L
3 cores (for copy function), 1 m
ZS-38-U
for copy function (10 copy destinations max)
ZS-38-C4H
O-ring and one-touch clip included
ZS-38-C6H
O-ring and one-touch clip included
ZS-38-N7H
O-ring and one-touch clip included
ZS-38-C4L
O-ring and one-touch clip included
ZS-38-C6L
O-ring and one-touch clip included
ZS-38-N7L
O-ring and one-touch clip included
-9-
Remarks
-
No.PS※※-OML0003-J
