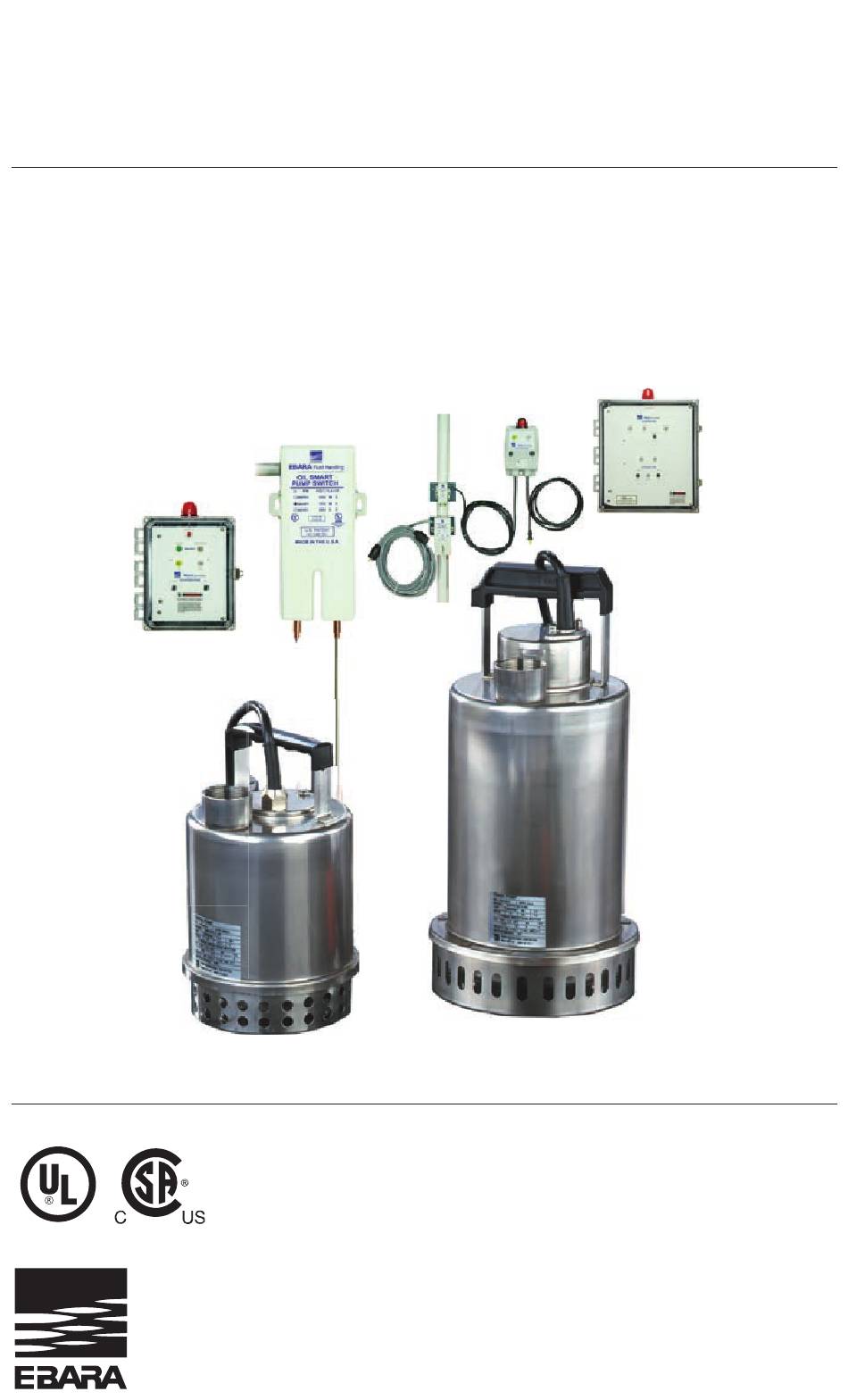

- Page 1 Oil Smart Pump System ® Model ESS100, ESSIM30, ESSIMTP3 Operating Instructions, Installation & Maintenance Manual *Note: UL and CSA listed; Model Optima UL certified only. EBARA Pumps Americas Corporation...
- Page 2 Thank you for purchasing this EBARA Oil Smart Pump Switch Package. We hope you are pleased with your purchase and that our pumps will provide you with long service life and exceptional performance. To ensure satisfactory service life, there are several consid- erations regarding proper installation, operation and power source.
-
Page 3: Important Safeguards
EBARA Oil Smart Pump System Important Safeguards To reduce risk of injury, always follow these instructions and safety precautions when using this pump and to maintain warranty. Read All Instructions Prior to Installation (SAVE THESE INSTRUCTIONS) Installation/Operation: • Never lift or carry pump by the electrical cord. Use a chain or rope affixed on handle to install/remove pump. -
Page 4: General Application Information
Plumbing and electrical contractors could advise you on proper installations of drain tiles, sump, pump and electrical service. EBARA recommends that a solid sump base be provided. The sump is fed by drain tile placed around the outside and/or inside base- ment walls at the footings. - Page 5 EBARA Oil Smart Pump System General Application Information (cont.) safety reasons. You should never touch a sump pump or discharge piping while the pump is connected to electrical power and water is present. The pump should be disconnected from the electrical source before handling in all cases.
-
Page 6: Safety Information And Introduction
EBARA Oil Smart Pump System General Application Information (cont.) Basin and Cover The basin should not be less than 18 inches in diameter and 24 inches deep. Larger diameters are advisable in instances of increased pump capacity requirements: Required Minimum... -
Page 7: Materials Needed
EBARA Oil Smart Pump System Materials Needed • PVC or ABS pipe cement (read manufacturerÊs instructions carefully) • PVC or ABS pipe; – 1 " for Optima-3 & EPD-3 – 1 " for EPD-5,7,10 & 15 • PVC adapter – 1 "... -
Page 8: Electrical Information - Single Phase
6. Before installing pump, clear sump basin of any water, debris, or sediment. WARNING: Sump basin must be vented in accordance with local plumbing codes. EBARA PRO•DRAINERS are not designed for and CANNOT be installed in locations classified as hazardous in the National Electric Code, ANSI/NFPA 70. -
Page 9: Submersible Pump Installation
EBARA Oil Smart Pump System Submersible Pump Installation General Materials Needed • One can PVC cement (read instructions carefully) • One can thread compound (read instructions carefully) • One male PVC adapter: 1 " for HP; 1 " for , 1 & 1 horsepower models. -
Page 10: Motor Wiring Diagram
EBARA Oil Smart Pump System Motor Wiring Diagram Manual Operation Type Output (Single Phase) • Output Manual Operation Type Output (Three Phase) • Output to 1 EBARA Pumps Americas Corporation www.pumpsebara.com (t) 803 327-5005 • (f) 803 327-5097 rev. 01/14... - Page 11 EBARA Oil Smart Pump System Electrical Wiring – Three Phase WARNING Check that the power is locked off and disconnected before working on pump. All electric work should be performed by a qualified electrician and all national and local electrical codes must be observed.
-
Page 12: Special Notice
EBARA Oil Smart Pump System SPECIAL NOTICE for Cord Connected Pumps EBARA EPD / Optima PRO Drainer pumps are NOT designed for and CANNOT be installed in any location classified as hazardous by the National Electric Code ANSI/NFPA 70. • Connection devices shall provide for a watertight connection to the power supply and provide adequate strain relief for the cord. -
Page 13: Troubleshooting Checklist
EBARA Oil Smart Pump System Troubleshooting Checklist PROBLEM POSSIBLE CAUSES • Line circuit breaker is off, or fuse is blown or loose. Pump does not run or • Water level in sump has not reached turn-on level as indicated in hums. -
Page 14: Maintenance And Service
EBARA Oil Smart Pump System Maintenance and Service WARNING: Pump warranty becomes void if you remove motor housing, unscrew impeller, or otherwise remove impeller seal. If pump does not operate properly, follow the steps shown under Troubleshooting. For any work on pump or switch, always unplug power cord(s). Do not just turn off cir- cuit breaker or unscrew fuse. - Page 15 EBARA Oil Smart Pump System Sectional View – Optima-3MS1, EPD-3MS1 Manual Type Output Ground Wire Optima-3MS1 Suction Cover Strainer Refer to page 29 for Material Details. EBARA Pumps Americas Corporation www.pumpsebara.com (t) 803 327-5005 • (f) 803 327-5097 rev. 01/14...
- Page 16 EBARA Oil Smart Pump System Sectional View – Optima-3MS1, EPD-3MS1 PART NAME ° MATERIAL STANDARD Qty. l l e l l a l l a l l e c t i 59 Switch cable connector PA66-GF30 c t i i n i...
-
Page 17: Sectional View
EBARA Oil Smart Pump System Sectional View – P707U / EPD-5MT2(4), 7MT2(4), 10MT2(4), 15MT2(4) Manual Type Output to 1 HP (Three Phase) Recommended spare parts Part No. Part ASTM, AISI No. for Name Material Code 1 Unit Outer Casing 304 Stainless... - Page 18 EBARA Oil Smart Pump System Sectional View Manual Type Output HP (Single Phase) Recommended spare parts Part Part ASTM, AISI No. for Part Part ASTM, AISI No. for Name Material Code 1 Unit Name Material Code 1 Unit 007 Outer Casing 304 Stainless AISI 304 r o t —...
- Page 19 EBARA Oil Smart Pump System Oil Smart ® Pump Switch (ESS100) The Oil Smart ® Pump Switch is a stand-alone, plug and play pump controller that differ- entiates between oil and water and will operate any pump up to 1HP or 16FLA. The sys- tem is complete with visible mounted features and dry contacts for remote monitoring.
- Page 20 EBARA Oil Smart Pump System Oil Smart ® Simplex Panel (ESSIM30) The Oil Smart System incorporates pump controls and alarm sensors that differentiate ® between oil and water, allowing companies to responsibly discharge the water without worrying about contamination. Installation of the Simplex Panel keeps companies in compliance with Elevator Code ASME A17.1 and State/Federal regulations while...
- Page 21 EBARA Oil Smart Pump System Oil Smart ® Simplex Panel (ESSIM30) — Wiring Diagram EBARA Pumps Americas Corporation www.pumpsebara.com (t) 803 327-5005 • (f) 803 327-5097 rev. 01/14...
- Page 22 EBARA Oil Smart Pump System Oil Smart ® Simplex Panel (ESSIMTP3) The Oil Smart System incorporates pump controls and alarm sensors that differentiate ® between oil and water, allowing companies to responsibly discharge the water without worrying about contamination. Installation of the Simplex Panel keeps companies in compliance with Elevator Code ASME A17.1 and State/Federal regulations while...
- Page 23 EBARA Oil Smart Pump System Oil Smart ® Simplex Panel ( ESSIMTP3) — Wiring Diagram EBARA Pumps Americas Corporation www.pumpsebara.com (t) 803 327-5005 • (f) 803 327-5097 rev. 01/14...
- Page 24 EBARA Oil Smart Pump System Oil Smart ® Pump System – Installation Instructions 1. Inspection: Your system has been carefully packaged to prevent damage during shipping. However, occasional damage does occur due to rough handling. Carefully inspect all parts of the system that could cause it to fail.
- Page 25 EBARA Oil Smart Pump System Oil Smart ® Pump System – Installation Diagram Oil Smart Alarm Liquid Smart Alarm Switch - HIGH LIQUID - Oil Smart Alarm Switch Oil Smart® Pump Switch - ON - - OFF - Pump included EBARA Pumps Americas Corporation www.pumpsebara.com...
- Page 26 EBARA Oil Smart Pump System Oil Smart ® Simplex Panel Testing: Liquid Smart ® Alarm Sensor: Fill small cup supplied with oil. Submerge only the plastic lens (optic sensor) into oil, the alarm will activate showing oil present (yellow light). Now touch finger to the exposed stainless steel sensor, the alarm will show water present (white light) will turn on.
-
Page 27: Control Panel
EBARA Oil Smart Pump System Oil Smart ® Control Panel Oil Smart Control Panel Troubleshooting Guide Problem Possible Cause Solution Pump Control does not activate Incorrect Polarity Make sure phase and neutral are the pump. Pump does not run. not reversed. -
Page 28: Warranty
MODEL Optima NO FAULT LIMITED WARRANTY (MODELS 3MS-1 AND 3AS-1 ONLY) EBARA FLUID HANDLING, Rock Hill, SC (EFH-RH) warrants to the original purchaser only ("Customer") that the EFH-RH Commercial Pump/Product ("Pump") Model 3MS-1 and/or 3AS-1 ONLY will be free of defects in workmanship and material for a period of twelve (12) months... - Page 29 Warranty COMMERCIAL PUMP/ PRODUCTS LIMITED WARRANTY Ebara Pumps Americas Corp., Rock Hill, SC („EPAC‰) warrants to the original purchaser only („Customer‰) that the EPAC Commercial Pump/Product („Pump‰) will be free of defects in workmanship and material for a period of twelve (12) months from the date of installation or eighteen (18) months from the date of shipment by EPAC, whichever comes first, provided that notification of any such defect is promptly given in writing to EPAC.
- Page 30 Contact your dealer or supplier for more information about other EBARA products: EBARA Pumps Americas Corporation 1651 Cedar Line Drive • Rock Hill, SC 29730 (t) 803 327 5005 • (f) 803 327 5097 www.pumpsebara.com © 2018 EBARA Pumps Americas Corporation...
