Allow 6 - 12 ft of clearance around the perimeter of the swing set area when fully assembled.
OWNER'S MANUAL, ASSEMBLY INSTRUCTIONS, CARE, MAINTENANCE AND USER'S GUIDE
Please read this entire instruction and assembly manual completely before proceeding. You must follow all
safety instructions while using this equipment. The surface area where this swing set is set up must be level and free of
all debris. This set is designed to be anchored into the ground and is not to be set up on any hard surfaces such as
concrete, hardened soil or asphalt. Proper surfacing under and surrounding the set adds to the safety level such as
sand or mulch. Read all cautionary statements on the following pages before using this equipment and save this
instruction manual. DO NOT ALLOW CHILDREN TO PLAY ON THIS GYM SET UNSUPERVISED! CONSTANT
ADULT SUPERVISION IS REQUIRED. Do not use when raining or during any inclement weather (i.e. rain, sleet, snow,
ice, high winds, thunderstorms or lightening). DO NOT ALLOW CHILDREN TO JUMP ON OR CLIMB UP ON THIS
SET'S TOP BAR.
For warranty details and registration see the back page of this manual.
FOLLOW ALL ASSEMBLY INSTRUCTIONS AS WRITTEN IN THIS MANUAL.
Please retain sales receipt for warranty purposes. DO NOT RETURN THE SET TO
THE STORE.
If replacement parts or customer service is needed please contact XDP Recreation by email at
service@xdprecreation.com or by calling 1-866-884-0535 between 8:00am and 5:00pm (Eastern Standard Time), Monday - Friday. This
gym is designed to be used safely by up to six (6) children, ages 3 years to 8 years, with weight capacity of 100 lbs per child or total
combined weight limit of 600 lbs for all six (6) children. This play gym is designed for backyard use only and is NOT intended for
playgrounds, schools, day care facilities, nurseries or other public places. Follow all assembly instructions carefully and as directed in
this manual. This gym conforms to all safety requirements by ASTM for Home Playground equipment when properly assembled using the
instructions enclosed. Adult assembly is required. Contains small parts. For proper stability and safety this gym set should be installed
with ground anchors.
Anchor Kits can be ordered directly from XDP RECREATION at https://www.xdprecreation.com or by calling

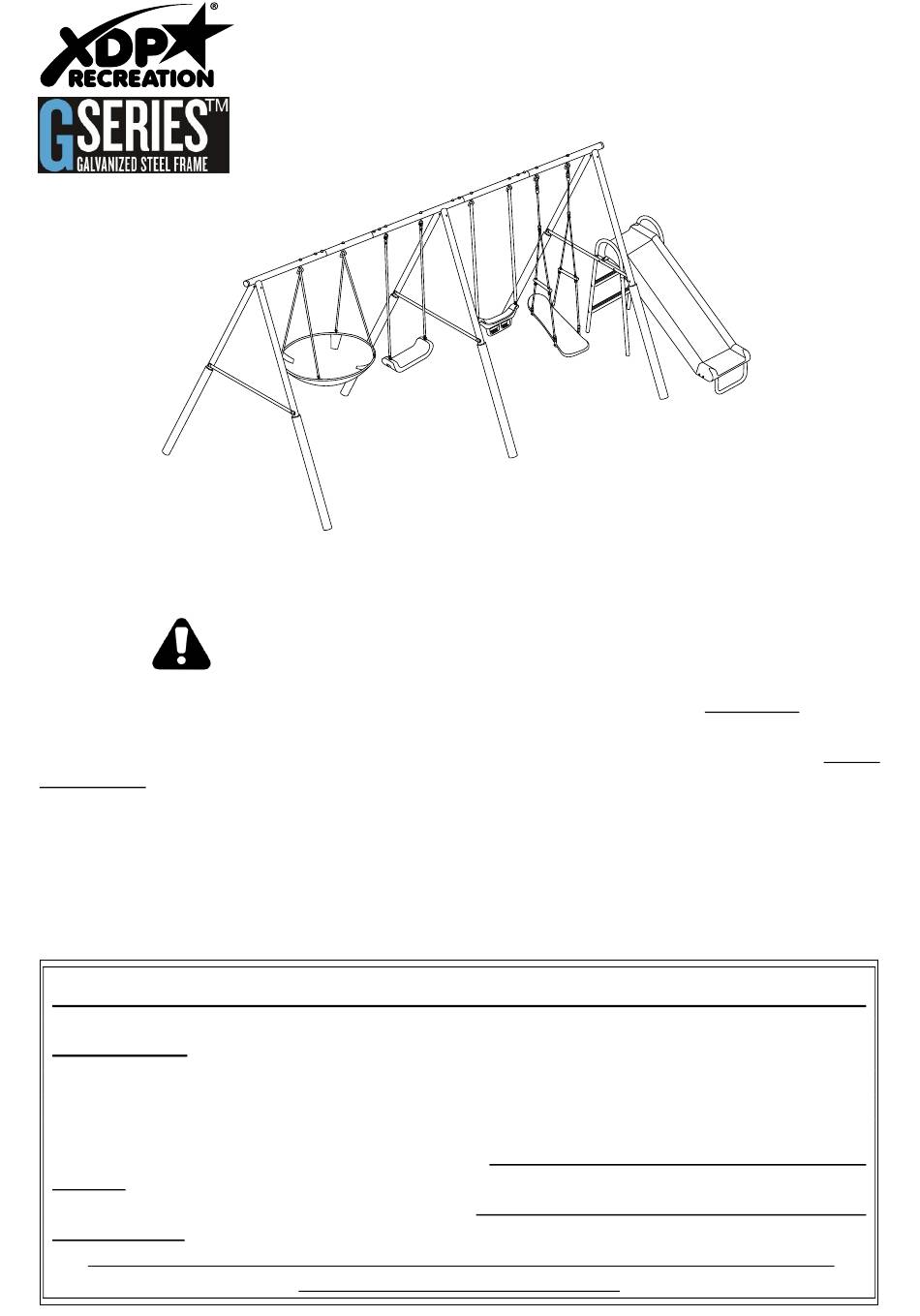

Model 76667G
SURF N SWING'IN Swing Set
Assembled dimensions are 179" x 102" x 74"
Important Instructions & Warnings!
1.866.884.0535, or thru your retailer of choice.

Advertisement

loading

Related Manuals for XDP Recreation G SURF N SWING'IN Series

Summary of Contents for XDP Recreation G SURF N SWING'IN Series

  • Page 1 Please retain sales receipt for warranty purposes. DO NOT RETURN THE SET TO THE STORE. If replacement parts or customer service is needed please contact XDP Recreation by email at service@xdprecreation.com or by calling 1-866-884-0535 between 8:00am and 5:00pm (Eastern Standard Time), Monday - Friday. This gym is designed to be used safely by up to six (6) children, ages 3 years to 8 years, with weight capacity of 100 lbs per child or total combined weight limit of 600 lbs for all six (6) children.

  • Page 2: Important Instructions And Warnings

    Anchor kit. If you anticipate severe winds, the product should be moved to a sheltered location or completely disassembled. Anchor kits can be ordered directly from XDP RECREATION at https//:www.xdprecreation.com or by calling 1-866-884-0535.

  • Page 3: Weather Conditions

     DO NOT install your play set over hard surface, e.g. asphalt, concrete, packed earth, tile or brick floor. A fall onto a hard surface can result in serious injury or death to the user. The following is a list of recommended ground covers from the Consumer Product Safety Commission: SUGGESTED MATERIAL UNCOMPRESSED DEPTH...
  • Page 4 PLAY SUPERVISION  DO NOT allow more than one child to play on the individual swing or slide component at any one time.  DO NOT allow children to stand on the slide, swing seats, trapeze, seesaw, rocky rider, disc swing or glide ride.

  • Page 5: Care And Maintenance Instructions

    INSPECTION PRIOR TO EACH USE OR DAILY INSPECTION  DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment and all parts are well secured and stable before each use. ...
  • Page 6 ANCHORING (NOTE:ANCHORS ARE NOT INCLUDED-MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping.
  • Page 7 FRAME LEG 12-5/8” CONCRETE 5” 2” BRICK OR GRAVEL BED Note: The maximum fall height for this product is 4 feet. The minimum ground clearance between the bottom of the suspended plays and the playing or ground surface must be 8 inches. You must maintain a minimum of 8 inches of ground clearance.
  • Page 8 CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON:  Tighten all hardware.  Lubricate all metallic moving parts.  Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. ...

  • Page 9: Tools Needed

    TOOLS NEEDED Please prepare the following tools prior to assembling this equipment. Special Socket Wrench Tape Measure (Not Included) (Not included) Hammer Wrench (If you intend to install anchor, this is needed) (Included) Wrench Medium Allen Wrench (Not Included) (Included) Flat Head and Philips Head Screwdriver Big Allen Wrench (Not included)
  • Page 10 Part list for main frame assembly LEFT TOP BAR MIDDLE TOP BAR 1 MIDDLE TOP BAR 2 MIDDLE TOP BAR 3 RIGHT TOP BAR TOP SECTION LEG BOTTOM SECTION LEG WITH FOAM CROSS BAR (WITH TWO HOLES) CROSS BAR (WITH FOUR HOLES) Hardware used for main frame assembly BOLT 5/16"x63MM BOLT 5/16"x68MM...
  • Page 11 Hardware used for swing seat assembly NUT 5/16’’ WASHER 5/16’’ PLASTIC CAP (WITH ARC WASHER) PLASTIC CAP (WITH FLAT WASHER) Part list for Stand R Swing assembly PVC COVERED CHAIN (PRE-ASSEMBLED) ONE EYE BOLT WITH ATTACHMENT BOLT (PRE-ASSEMBLED ON J1A) ONE EYE BOLT WITH ATTACHMENT J3A-N BOLT (PRE-ASSEMBLED ON J1A)
  • Page 12 F1-N NUT 5/16" F2-N ARC WASHER F3-N PLASTIC CAP (WITH ARC WASHER) Part list for Surf N Swing assembly ATTACHMENT BOLT (PRE-ASSEMBLED ON S2) ROPE SET (PRE-ASSEMBLED) FOOTREST SUPPORT EYE BOLT (PRE-ASSEMBLED ON S2) SURF N SWING SUPPORT Hardware used for Surf N Swing assembly NUT 5/16"...
  • Page 13 Part list for slide assembly X1-N SLIDE SUPPORT (WITH OPENING) X2-N SLIDE SUPPORT X3-N SLIDE LEG TUBE X4-N SLIDE TOP SUPPORT BAR X5-N SLIDE FRONT SUPPORT SLIDE LADDER STEPS X7-N SUPPORT A X8-N SUPPORT B Y3-1 SLIDE A Y3-2 SLIDE B Y3-3 SLIDE C Hardware used for slide assembly...
  • Page 14 ASSEMBLY INSTRUCTIONS  Place the playground equipment on level ground and not less than 6ft (1.8m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry line or electrical wires.  Do not install the playground equipment over concrete, asphalt, packed earth or any other hard surface;...
  • Page 15 STEP 1 – Assemble the top bar frame of the swing set  Connect A1, A2, A3, A4 and A5 and secure with B3, B4, B5 and B1 as shown below. Note: All round holes should be facing up and concave holes facing down. NOTE: 1.
  • Page 16 STEP 2 – Assemble the support legs of swing set  Connect A1 to A7 and secure using B1, B5, B4 and B3 as shown below.  Repeat this step for the middle section of the swing set (A3 and A5 with A7). NOTE: 1.
  • Page 17 STEP 3 – Attach the crossbar to the support legs  Attach A10 to the outer side of A7 & A8 and secure using B2, B6, B4 and B3.  Repeat this step for the middle section of the swing set (A3 with A10). NOTE: 1.
  • Page 18  Attach A11 to the outer side of A7 & A8 and secure using B2, B6, B4 and B3. DO NOT RETURN TO RETAILER WHERE YOU PURCHASED AT. CONTACT XDP FOR PARTS AND SUPPORT AT 1.866.884.0535 or service@xdprecreation.com...
  • Page 19 STEP 4 - "SWING SEAT" assembly (w. "Adjustable Height" Feature) Important: Please make sure to use the J1 with J3-N (the plastic is Ivory Color). This is CRITICAL to other assembly steps.  Connect swing seat to the chains by inserting J3 through K1 and secure with J7, J9 and J6 as shown in Diagram A.
  • Page 20 Diagram B J3-N J3-N If you wish to shorten the chain length, follow the below diagram. Diagram C NOTE: Do not over-tighten the nuts and bolts at every step. 2. Do not snap in the cover of plastic cap until you have finished the assembly of each step and went back to tighten all of the nuts and bolts.
  • Page 21 - "Stand R Swing " seat assembly (w. "Adjustable Height" STEP 5 Feature) Important: Please make sure to use the J1A with J3A-N (the plastic is Green Color). This is CRITICAL to other assembly steps.  Connect Stand R Swing to the chains by inserting J3A through K2 and secure with J7A, J9A and J6A as shown in Diagram A.
  • Page 22 Diagram B J3A-N J3A-N If you wish to shorten the chain length, follow the below diagram. Diagram C NOTE: 1. Do not over-tighten the nuts and bolts at every step. 2. Do not snap in the cover of plastic cap until you have finished the assembly of each step and went back to tighten all of the nuts and bolts.
  • Page 23 STEP 6 – Super Disc swing assembly  Separation of foam tube R3-1 from R3-N  Insert the foam tube R3-1 into R4-N first, then insert R3-N into R3-1 in R4-N.  Slide the smaller ends of R3-N tubes into the pockets of Super Disc swing fabric (R4-N).
  • Page 24 STEP 7 – Attach Super Disc swing to the swing set frame  Connect the chain (R1-N) to the Super Disc swing by inserting R2B-N and securing with F2-N and F1-N as shown in Diagram A.  Connect Super Disc swing to the top bar by inserting R2A-N through A1 and A2, securing with F3-N and F1-N as shown in Diagram B Diagram A...
  • Page 25 STEP 8 - Surf N Swing Assembly  Put X9 into S5 and insert S3 to the S5 and X9 as shown in Diagram A. Note: The X9 should be positioned in the same direction as the groove of S5. Diagram A DO NOT RETURN TO RETAILER WHERE YOU PURCHASED AT.
  • Page 26  Secure S4 to the S3 by using S7, S10 and S11 as shown in Diagram B.  Insert S1 through the hole on A5 and secure with S7 and S12 as shown in Diagram B. Diagram B IMPORTANT: The METAL ‘washer’ (S10) is needed in the Surf N Swing board assembly.

  • Page 27: Step 9 - Slide Assembly

    STEP 9 - Slide assembly  Connect Y3-1, Y3-2 and Y3-3 and secure with Z8 and Z6 as shown below. IMPORTANT: Screw on the Z8 and the Z6 into the middle ridge (circled area) FIRST. Then screw in the Z8 and Z6 into the side ridges of the slide. SECURELY TIGHTEN the Z8 bolts after all 6 (SIX) of the Z8 slide bolts have been screwed in.
  • Page 28  Connect X7-N and X8-N together first then place the tubes into the grooves on the back of the slide as shown below.  Secure X7-N and X8-N onto the slide with Z10, Z6 and Z9 in the sequence blocks as shown below.
  • Page 29 STEP 10 - Slide assembly (continued)  Insert X5-N into the base of Y3-3.  Secure using Z7, Z6 and Z4.  Attach X4-N to Y3-1. Note: Make sure that the bolt holes face up. Y3-1 Y3-2 X4-N Bolt hole faces up. Y3-3 X5-N NOTE:...
  • Page 30 - Slide assembly (continued) STEP 11  Attach X6 to X1-N and X2-N. The inner sides of both X2-N and X1-N, where X6 (slide ladder steps) is attached to, are with concave holes.  Secure each side using Z1, Z6 and Z4. ...
  • Page 31 STEP 12 - Slide assembly (continued)  Secure the two sides of the slide using Z2, Z6, Z21 and Z4, in the sequence shown in the diagram.  Attach X4-N to X1-N and X2-N and secure using Z1, Z6, Z3 and Z5 as shown in the enlarged diagram.
  • Page 32 STEP 13 - Slide assembly (continued)  Fit Y1 in between X1-N and A11 and secure using Y1, Z2, Z6 and Z3, Z5. X1-N NOTE: 1. Do not over-tighten the nuts and bolts at every step. 2. Do not snap in the cover of plastic cap until you have finished the assembly of each step and went back to tighten all of the nuts and bolts.
  • Page 33 Congratulations! You have now completed the swing set assembly. Please make sure to thoroughly check all parts and hardware to make sure all bolts and nuts are well secured before using the playground equipment. WARNING - Do not let children use the playground equipment until it is properly assembled and anchored.

  • Page 34: Customer Support

    What does this Limited Warranty cover? This warranty covers your XDP Recreation product for one hundred and eight (180) days against defects in material, workmanship, and rust on painted parts which compromise the structural integrity of the product when used for the purpose intended, normal outdoor conditions, and provided it is assembled correctly as illustrated in this manual and receives the proper care and maintenance.
  • Page 35 IF NEEDED, GROUND ANCHORS CAN BE BOUGHT FROM THE STORE YOU PURCHASED THIS SET AT OR BY PURCHASING FROM XDP RECREATION'S WEBSITE AT www.xdprecreation.com XDP RECREATION LLC, 5910 SHILOH ROAD EAST, SUITE 108, ALPHARETTA, GEORGIA 30005 REGISTER YOUR “XDP” PURCHASED / PRODUCT PLEASE VISIT OUR WEBSITE at www.xdprecreation.com to register your...
  • Page 36 Dear Customer, 2020 THANK YOU for being an XDP Recreation Customer. IT’S HERE – The NEW FIREFLY LED SWING Check out our Website or the General Marketplace For this FANTASTICALLY / FUN STROBING – LED – COLORED – FLASHING MODES SWING www.xdprecreation.com...
