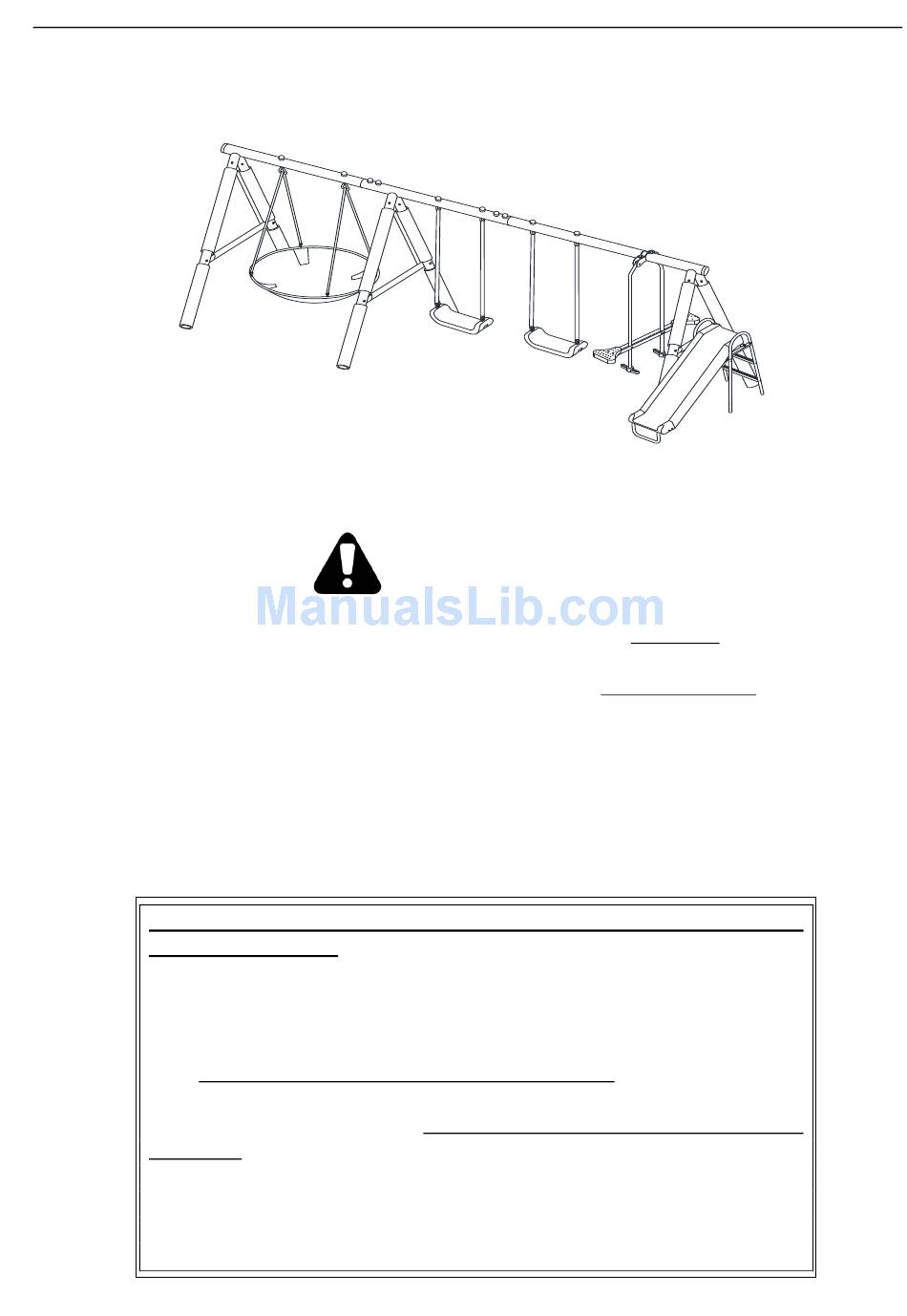

"Freedom Swing"/ "Camo Commander"
Assembled dimensions are 192" x 106" x 76" Allow 6 - 12 ft of clearance around the perimeter of the swing set area when fully
OWNER'S MANUAL, ASSEMBLY INSTRUCTIONS, CARE, MAINTENANCE AND USER'S
Please read this entire instruction and assembly manual completely before proceeding. You must follow all safety
instructions while using this equipment. The surface area where this swing set is set up must be level and free of all debris. This
set is designed to be anchored into the ground and is not to be set up on any hard surfaces such as concrete, hardened soil, or
asphalt. Proper surfacing under and surrounding the set adds to the safety level such as sand or mulch. Read all cautionary
statements on the following pages before using this equipment and save this instruction manual.
CHILDREN TO PLAY ON THIS GYM SET UNSUPERVISED! CONSTANT ADULT SUPERVISION IS REQUIRED.
Do not use when raining or during any inclement weather (i.e. rain, sleet, snow, ice, high winds, thunderstorms, or lightening).
DO NOT ALLOW CHILDREN TO JUMP ON OR CLIMB UP ON THIS SET'S TOP BAR.
For warranty details and registration see the back page of this manual.
FOLLOW ALL ASSEMBLY INSTRUCTIONS AS WRITTEN IN THIS MANUAL
Please retain sales receipt for warranty purposes. DO NOT RETURN THE
SET TO THE STORE
email at service@xdp-recreation.com or by calling 1-866-884-0535 between 8:00am and 5:00pm (Eastern Standard Time),
Monday - Friday. This gym is designed to be used safely by up to seven (7) children, ages 3 years to 8 years, with weight
capacity of 100 lbs per child or total combined weight limit of 700 lbs for all seven (7) children. This play gym is
designed for backyard use only and is NOT intended for playgrounds, schools, day care facilities, nurseries or other public
places. Follow all assembly instructions carefully and as directed in this manual. This gym conforms to all safety
requirements by ASTM for Home Playground equipment when properly assembled using the instructions enclosed.
Adult assembly is required. Contains small parts. For proper stability and safety this gym set should be installed with
ground anchors.
IF NEEDED, GROUND ANCHORS CAN BE BOUGHT FROM THE STORE YOU PURCHASED THIS SET AT
OR BY PURCHASING FROM XDP RECREATION'S WEBSITE AT www.xdp-recreation.com
CONTACT XDP FOR PARTS AND SUPPORT AT 1.866.884.0535 or service@xdp-recreation.com
XDP RECREATION LLC, 5910 SHILOH ROAD EAST, UNIT 108, ALPHARETTA, GEORGIA 30005
86150/86155
assembled.
GUIDE
WARNING!
. If replacement parts or customer service is needed please contact XDP Recreation by
DO NOT RETURN TO RETAILER WHERE PURCHASED.
DO NOT ALLOW
