Summary of Contents for Futech MULTICROSS 8 HIGH PRECISION RED

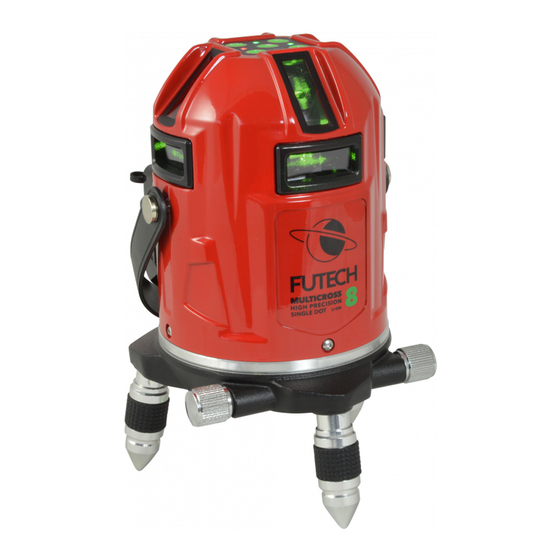

- Page 1 USER MANUAL EN ENGLISH 039.80R MULTICROSS 8 HIGH PRECISION RED Manual 039.80G MULTICROSS 8 HIGH PRECISION GREEN in your language? 040.08 MULTICROSS 8 HIGH PRECISION SINGLE DOT RED 040.08G MULTICROSS 8 HIGH PRECISION SINGLE DOT GREEN Check the back cover...
- Page 2 OVERVIEW HOUSING KEYPAD 01 Horizontal laser line Power button 02 Vertical laser line H-button for horizontal lines 03 Keypad V-button for vertical lines 04 Belt D Receiver buttons 05 5/8” Tripod thread / downpoint Slope button 06 Li-ion battery Indicator LED Y-axis 07 Fine adjustment G Indicator LED X-axis 08 Adjustable foot...
- Page 3 QUICK START GUIDE Power button Press Switch the device ON/OFF H-button for horizontal lines Press (AUTO LEVELLING MODE) (De)activate extra horizontal laser lines (SLOPE MODE) Change to Y-axis Hold (SLOPE MODE) Y-axis rises on the side pointed by the arrow of the Y-axis. V-button for vertical lines Press (AUTO LEVELLING MODE)
-
Page 4: First Time Usage
Indicator LED X-axis (AUTO LEVELLING MODE) Receiver mode inactive. No detection possible. (SLOPE MODE) X-axis is not selected Green, continuous (AUTO LEVELLING MODE) Receiver mode is active. Detection with laser receiver is possible Green, flashing (SLOPE MODE) X-axis is selected to set slope Slope indicator Auto levelling is active Red, continuous... - Page 5 To check the battery level, press the small power performs the necessary fine adjustments, with button on the battery to see the power indicators the help of electronic measuring sensors, one for (4 LEDS). each axis. · 4 LEDS lights: >...
- Page 6 If the workplace has a high brightness, for example when working outside in a sunny area, you will need a laser receiver to detect the laser beam. (see further) AUTO LEVELLING > 3,5° After turning on the device or when you turn off the slope mode, self levelling will automatically In case the laser is placed on a surface that place the laserlines 100% levelled.
- Page 7 NOTE When a tripod is used, the adjustable feet will have no effect. … SWITCHING ON/OFF LASER LINES · Press the V-button [C] a fi rst time to switch on When switching on the device, only two of the two of the four verical laser lines and the plumb four horizontal laser lines will be activated.
- Page 8 SLOPE FUNCTION · Press the receiver button [D] to activate the reveiver mode. The indicator LED X-axis [G] on When switching on the device, the self levellig the device will light green. mode is automatically actived. In case you need When the receiver mode is switched on, the laser to project sloped lines, you can switch off the line will pulsing extremely fast.
-
Page 9: Manual Slope
function was activated. When the manual slope mode is active, the slope indicator LED [H] becomes red and the indicator When activating the slope function, receiver LED Y-axis [F] starts flashing green to indicate the mode will automatically activated too. Y-axis can be set (see further, electronic slope). - Page 10 The indicator LED Y-axis [F] stops fl ashing, the in- dicator LED X-axis [G] starts fl ashing. This shows the device is ready to be set the slope in parallel with the X-axis. · Press or hold the V-button [C] to make the laser line rises on the side pointed by the arrow of the Y-axis.
-
Page 11: Specifications
040.08G DECLARATION OF CONFORMITY Visibility Precision 1mm / 10m Futech (Belgium) declares under its Range (with receiver) up to 2x 50m (with receiver) own responsibility that these devices: - 039.80R - MULTICROSS 8 HP Red Dust- and water proofness IP54 - 039.80G - MULTICROSS 8 HP Green... - Page 12 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
