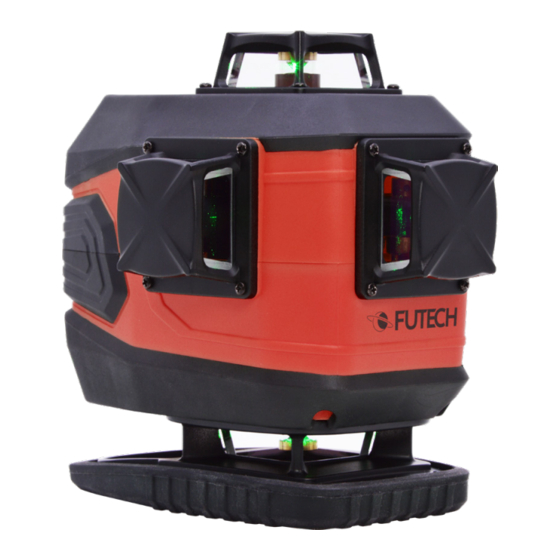

Futech MULTICROSS 4D ELECTRONIC User Manual

Hide thumbs Also See for MULTICROSS 4D ELECTRONIC:

Advertisement

Quick Links

Download this manual
USER
MANUAL
034.4DE MULTICROSS 4D ELECTRONIC
EN ENGLISH
Manual
in your language?
Check the back cover

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTICROSS 4D ELECTRONIC and is the answer not in the manual?

Questions and answers

Related Manuals for Futech MULTICROSS 4D ELECTRONIC

Summary of Contents for Futech MULTICROSS 4D ELECTRONIC

  • Page 1 USER MANUAL EN ENGLISH 034.4DE MULTICROSS 4D ELECTRONIC Manual in your language? Check the back cover...
  • Page 2 OVERVIEW...
  • Page 3 HOUSING KEYPAD REMOTE CONTROL 01 Upper horizontal laser line Power button Power button (H1) H-button for horizontal lines H-button for horizontal lines 02 Bottom horizontal laser line / Tilt-security button V-button for vertical lines (H2) V-button for vertical lines Receiver / Standby button 03 Side vertical laser line D Receiver button Slope / Tilt-security button...
  • Page 4 QUICK START GUIDE Power button Press Switch the device ON/OFF Power button Press Switch the remote control ON/OFF H-button Press Switch between horizontal lines (H2  H1  OFF  H2  ...) Hold 3 sec. (De-)activate TILT-security (ONLY ON DEVICE) V-button Press Switch between vertical lines (OFF ...
  • Page 5 LED Tilt indicator Tilt security OFF Green, flashing Preparing TILT security Green, continuous TILT security active J+K+L All 3 LED indicators Green, flashing TILT alarm LED Battery indicator 4x green >75% battery charge 3x green >50% battery charge 2x green >25% battery charge 1x green <25% battery charge...

  • Page 6: Automatic Functions

    SAFETY AUTOMATIC FUNCTIONS Please read the safety instructions provided as AUTO-LEVELLING separate booklet with the device. This 4D laser first levels itself automatically after LASER RADIATION – Class 2 Laser product. – Do turning on the device. The laser can level itself not stare into beam within an operating angle of approx.
  • Page 7 Tilt-security is the best choice if accuracy is the WHAT IF MY (NEW) REMOTE CONTROL DOES most important. NOT COMMUNICATE WITH MY DEVICE? In normal circumstances, the supplied remote control is paired with the device. In exceptional cases, or when you need to replace the remote Press the power button [A] to activate the device.
  • Page 8 The laser can level itself in a range of approx. 4° NOTE in every direction. This means the laser can show The choice of the tripod defines in a large way 100% horizontal or vertical lines when placed on the user-friendliness of the device. a sloped surface of appox.
  • Page 9 HORIZONTAL LASER LINES VERTICAL LASER LINES To change the projected horizontal laser lines, To change the projected vertical laser lines, you you can press the H-button for horizontal lines [B, can press the V-button for vertical lines [C, c]. The b].
  • Page 10 The laser lines will blink every 10 seconds to line(s) decreases slightly. remind you that the lines are not levelled. The Multicross 4D Electronic wil pulse with a frequency of 10KHz. That means your laser · Change back to automatic levelling (turn off receiver must support a frequency of 10KHz.
  • Page 11 · Use the X-axis UP button [f] and/or the X-axis DOWN button [g] to search the zero level of the The Multicross 4D Electronic has a build in slope receiver. function. This can be used for slopes within the 4°...
  • Page 12 When the tilt security is active and the sensors detect a small shock (e.g. a vibration, a gust of wind, ...) the tilt alarm activates (Receiver [J], Lev- elling [K] and Tilt indicator [L] as well as the active > 4° laserlines flashes simultaniously.
  • Page 13 BATTERY NOTE In order to avoid all risks, only use the charger PLACE OR REMOVE THE BATTERY and battery that are delivered together with the · Open the battery cover [06]. laser instrument. You can charge the battery during the usage of the instrument. ·...

  • Page 14: Specifications

    SPECIFICATIONS 034.4DE MULTICROSS 4D ELECTRONIC Visibility Precision 1mm / 10m Range (with receiver) up to 2x 60m (with receiver) Dust- and water proofness IP54 Battery 7.4V, 2600mAh Li-ion (art.nr.: H60028) Charger 5V, 2000mAh (art.nr.: H60033A) [+ USB-C cable] [USB-C cable: art.nr H60033B]...
  • Page 15 NOTES DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 034.4DE, MULTICROSS 4D ELECTRONIC is in conformity with the standards EN IEC 61326-1:2021, EN 61010-1:2010 + A1:2019, EN 60825-1:2014 + A11:2021, following the provisions of Directive(s) EMC Directive 2014/30/EU.
  • Page 16 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SL SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
