Summary of Contents for Futech MULTICROSS 3D

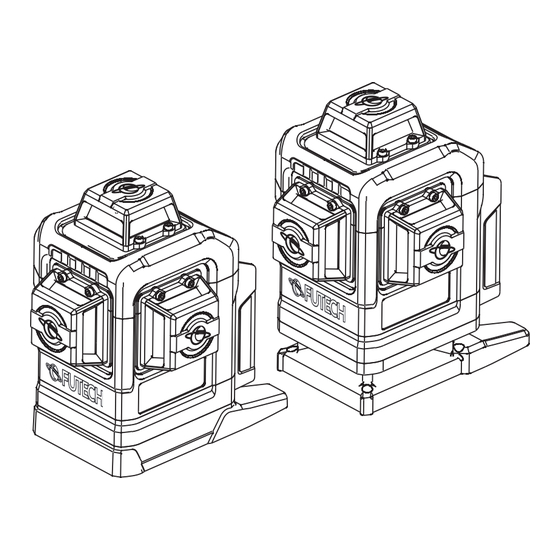

- Page 1 USER EN ENGLISH MANUAL 036.3DG MULTICROSS 3D 18V MAX GREEN Manual 036.4DG MULTICROSS 4D 18V MAX GREEN in your language? Check the back cover...
- Page 2 OVERVIEW...
- Page 3 CASE 01 USB Type-C charging port 02 Battery adapter 03 On/Off switch / Pendulum lock 04 Keypad 05 Fine adjustment wheel 06 Upper horizontal laser line 07 Bottom horizontal laser line 08 Front vertical laser line 09 Side vertical laser line 10 1/4”...
-
Page 4: First Time Usage
SAFETY Before connecting the 18V battery, please remove all dust and sand. Please read the safety instructions provided as · Place the right battery adapter [02] on the separate booklet with the device. device. The adapter is mounted correctly when LASER RADIATION –... - Page 5 MANUAL SLOPE MODE In manual slope mode, you can set slopes with the Multicross 3D/4D 18V MAX. This means the laser lines will be projected with the pendulum locked. This gives you the opportunity to project sloped lines under the angle you need.
- Page 6 If all laser lines are switched off, the warning triangle [H] will fl ash at a fast rate and the laser will beep every 10 seconds. When working in manual slope mode and a laser · Make sure the Pendulum lock [03] is in the line is activated the warning triangle [H] will fl...
-
Page 7: Fine Adjustment
· Press the receiver mode button [C] again to turn off the receiver mode. NOTE All Futech laser will use 10Khz as frequency in receiver mode. Only receivers that can detect laser lines at 10KHz are compatible. ... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS 036.3DG 036.4DG MC3D 18V MAX MC4D 18V MAX Visibility Accuracy ± 2mm / 10m ± 2mm / 10m Laser lines Horizontal: 1x 360° Horizontal: 2x 360° Vertical: 2x 360° Vertical: 2x 360° Range with receiver up to 70m up to 70m Levelling range ±... -
Page 9: Battery Adapters
BATTERY ADAPTERS Battery adapters are needed to use the laser with an 18V battery. Compatible with Bosch: Art. H036.BOS Art. H036.DEW Compatible with Dewalt: Campatible with Festool: Art. H036.FES Compatible with Hikoki: Art. H036.HIK Compatible with Makita: Art. H036.MAK Compatible with Metabo: Art. - Page 10 NOTES...
- Page 11 DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 036.3DR, MULTICROSS 3D 18V MAX - 036.4DR, MULTICROSS 3D 18V MAX is in conformity with the standards EMC DIRECTIVE 2014/30/EU: - EN IEC 61326-1: 2021 Lier, Belgium, April, 2024 Patrick Waûters...
- Page 12 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
