function was activated.
When activating the slope function, receiver
mode will automatically activated too.

MANUAL SLOPE

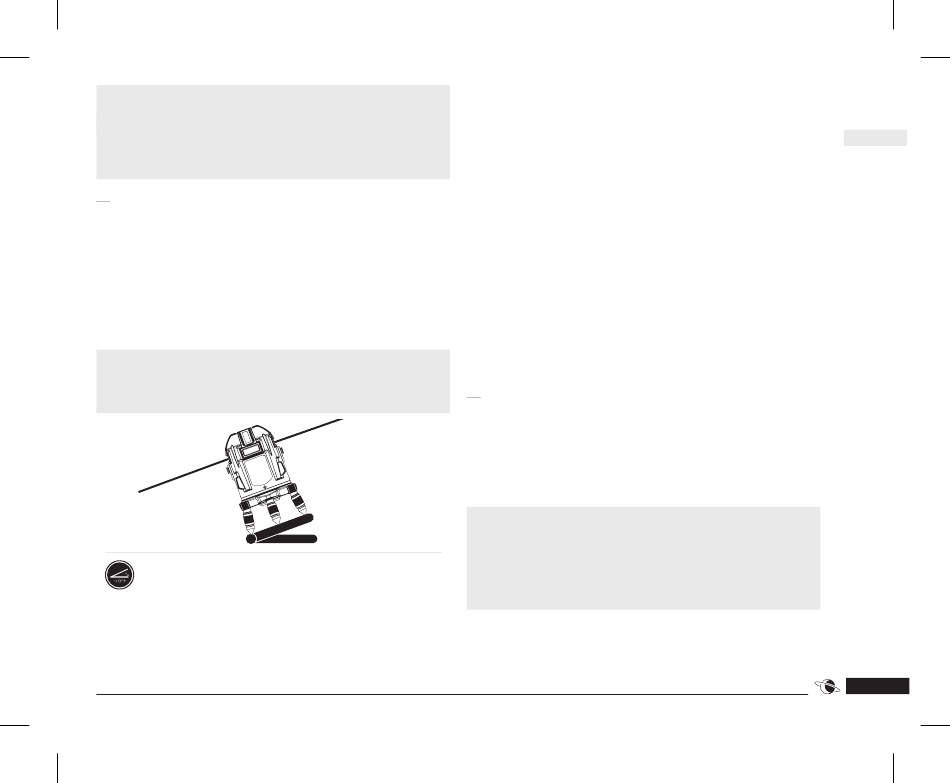

When using manual slope mode you can use the
adjustable feet [11] to gently position te device
at the desired slope. You can also physically
position the device at the desired slope by using
an inclined surface or a slope adapter (optional
accessory) in combination with a tripod adapter.
NOTE
Manual slope is the only way te set sloped lines
that exceed the levelling range of the device.
· Activate the manual slope mode by pressing
the slope button [E] in the center of the keypad
[03].
When the manual slope mode is active, the slope
indicator LED [H] becomes red and the indicator
LED Y-axis [F] starts flashing green to indicate the
Y-axis can be set (see further, electronic slope).
· Bring the laser in the desired slope using the
adjustable feet [11], a slope adapter (optional
accessory) in combination with a tripod adapter
or by place the laser on a sloping surface.
· To deactiviate the manual slope mode, press
the slope button [E] a second time.
Slope mode is now no longer active and your
device will start levelling (indicator LED Y-axis [F]
flashes green).
ELECTRONIC SLOPE
Electronic levelling works very similarly to manual
levelling. However, setting the slope is done by
the levelling motors within the levelling range of
3,5°.
NOTE
> 3,5°
We recommend the use of a laser receiver in
combination with a rod to set slopes. This will
make it easier to find the desired heights on
each corner of the sloped surface.
9
