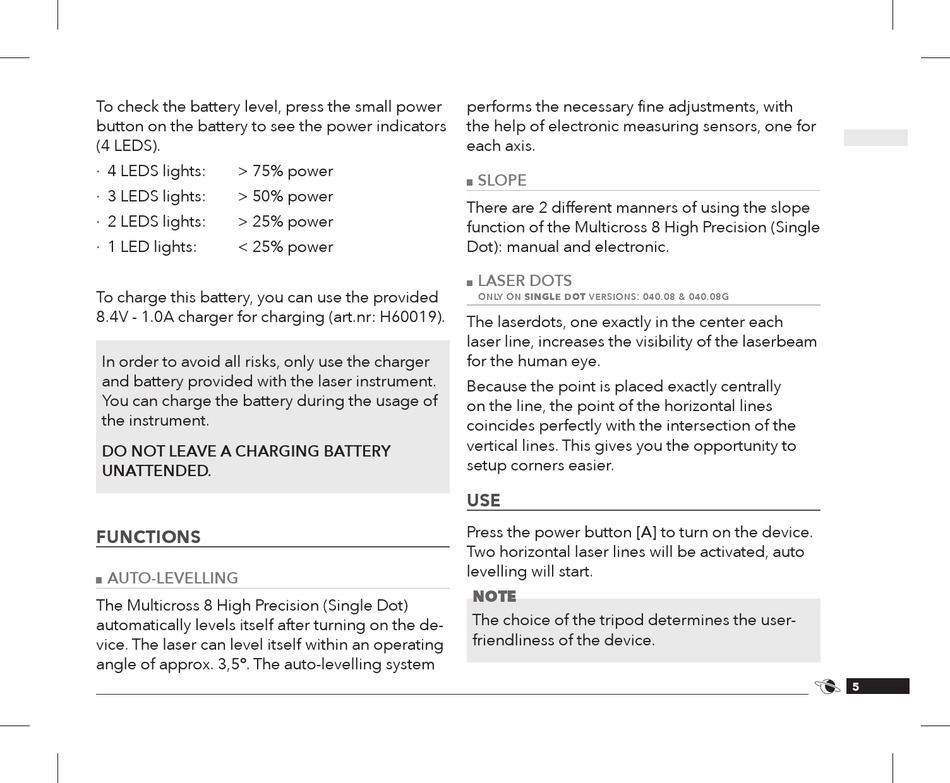

Futech MULTICROSS 8 HIGH PRECISION RED User Manual page 5

To check the battery level, press the small power
button on the battery to see the power indicators
(4 LEDS).
· 4 LEDS lights: > 75% power
· 3 LEDS lights: > 50% power
· 2 LEDS lights: > 25% power
· 1 LED lights: < 25% power
To charge this battery, you can use the provided
8.4V - 1.0A charger for charging (art.nr: H60019).
In order to avoid all risks, only use the charger
and battery provided with the laser instrument.
You can charge the battery during the usage of
the instrument.
DO NOT LEAVE A CHARGING BATTERY
UNATTENDED.
FUNCTIONS
AUTO-LEVELLING
The Multicross 8 High Precision (Single Dot)
automatically levels itself after turning on the de-
vice. The laser can level itself within an operating
angle of approx. 3,5°. The auto-levelling system
performs the necessary fine adjustments, with
the help of electronic measuring sensors, one for
each axis.
SLOPE
There are 2 different manners of using the slope
function of the Multicross 8 High Precision (Single
Dot): manual and electronic.
LASER DOTS
only on single dot versions: 040.08 & 040.08g
The laserdots, one exactly in the center each
laser line, increases the visibility of the laserbeam
for the human eye.
Because the point is placed exactly centrally
on the line, the point of the horizontal lines
coincides perfectly with the intersection of the
vertical lines. This gives you the opportunity to
setup corners easier.
USE
Press the power button [A] to turn on the device.
Two horizontal laser lines will be activated, auto
levelling will start.
NOTE
The choice of the tripod determines the user-
friendliness of the device.
