- Page 1 USER EN ENGLISH MANUAL 030.03D MC3D COMPACT RED Manual 040.03D MC3D COMPACT GREEN in your language? Check the back cover...

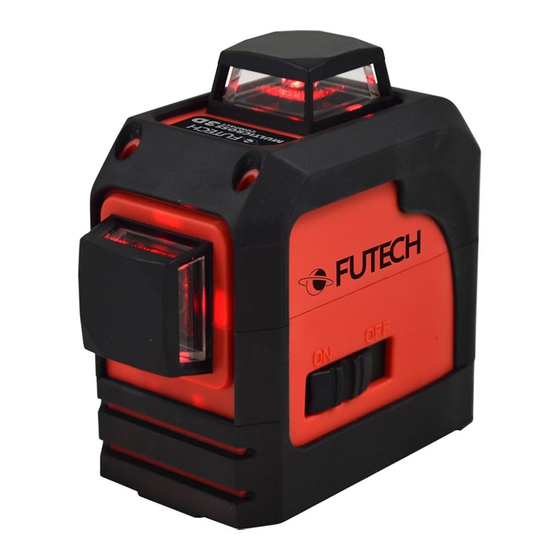

- Page 2 OVERVIEW CASE 01 Horizontal laserexit 02 Vertical laserexit (V1) 03 Vertical laserexit (V2) 04 Switch On/Off / Transportlock 05 Battery compartment 06 Tripod thread 1/4” 07 Tripod thread 5/8” 08 Power socket 09 Keypad KEYPAD Line selecion button / Slope button receiver button Slope indicator D Receiver indicator...
-
Page 3: First Time Usage
SAFETY Make sure that the instrument is not on too much of a slope (within 3°). If the slope of the Please read the safety instructions provided as instrument should exceed 3°, the laser lines will separate booklet with the device. flash or will go out automatically. - Page 4 POWER SOCKET / POWER ADAPTOR AND BATTERY SYSTEM HORIZONTAL AND VERTICAL ALIGNMENT The laser can be powered from main power directly when there is no battery inside the laser ON: H 1x: V1 or when the li-ion batterie runs flat. Use the 2x: V1 + V2 included power adapter to provide continuous 3x: H + V1 + V2...
-
Page 5: Receiver Mode
NOTE In order to use vertical lines, press the H/V button All Futech laser will use 10Khz as frequency in [A] to activate laser line V1 [02]. Press a second receiver mode. Only receivers that can detect time in order to activate laser lines V1 [02] and laser lines at 10KHz are compatible. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS 030.03D 040.03D MC3D COMPACT RED MC3D COMPACT GREEN Visibility Accuracy ± 3mm / 10m Range with receiver 2x 50m Levelling range ± 3° Levelling pendulum levelling Slope fucntion manual (via pendulum lock) Tripod thread 1/4” and 5/8” Laser wavelenght... - Page 7 NOTES DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 030.03D, MULTICROSS 3D COMPACT RED - 040.03D, MULTICROSS 3D COMPACT GREEN is in conformity with the standards EN 61000-6-3:2007+A1:2012, EN 61000-6-1:2008, EN 61010-1:2011, EN 60825-1:2015,...
- Page 8 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
