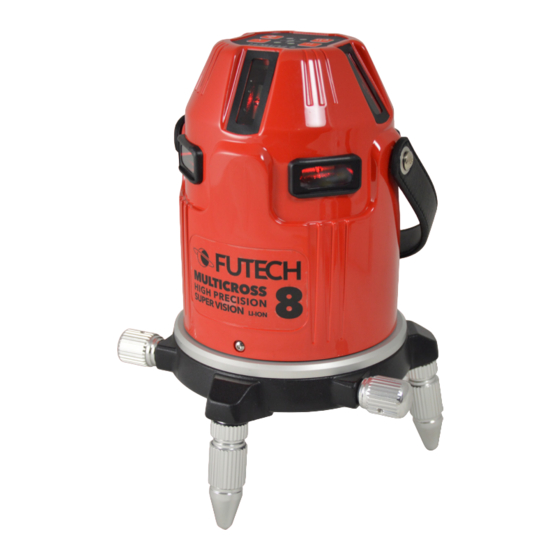

- Page 1 MULTICROSS 8 MANUAL 042.08 045.08...

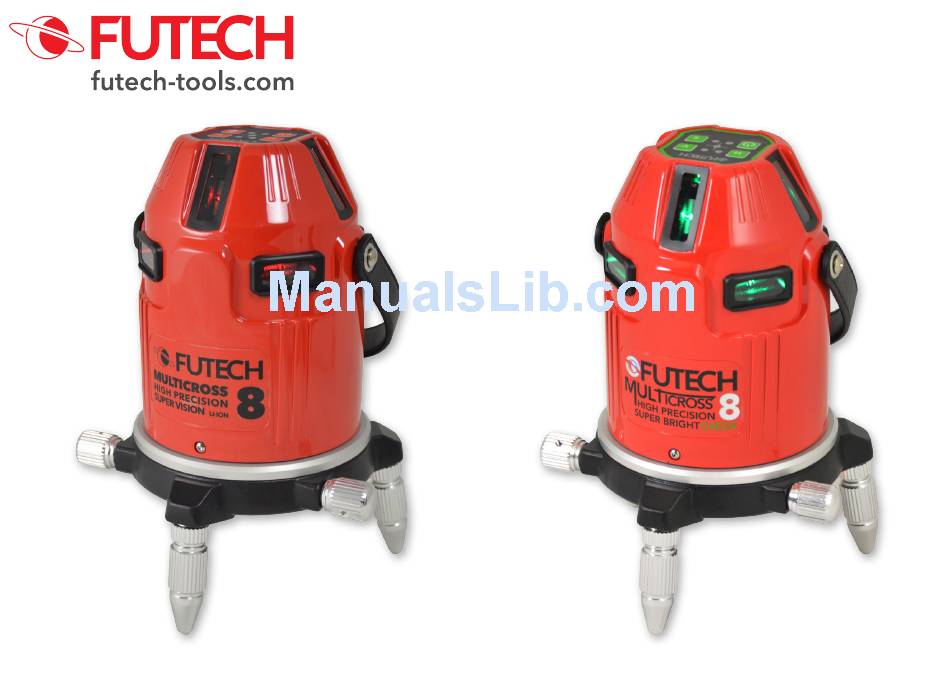

- Page 2 Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. MULTICROSS 8 HIGH PRECISION SUPER VISION RED MULTICROSS 8 HIGH PRECISION SUPER BRIGHT GREEN Professional cross-line laser with ultra visible laser beams due to the use of powerful laser diodes.
- Page 3 MULTICROSS 8 MANUAL Case Horizontal laserexit Vertical laserexit Control panel LI-ION battery Powerconnector Fine tuning Plumb beam (bottom) Thread 5/8” (bottom) Adjustable feets Control panel 10. Horizontal laserlines 11. Vertical laserlines 12. On/Off switch 13. receivermode (042.08) / S-button (045.08) 042.08...
- Page 4 Horizontal alignment Place the device on a stable, horizontal base. It is recommended to install the device on working heigt. This improves the comfort while working and will result in a higher quality. Usage of a cross line laser with a spindle or telescopic tripod is optimal. The choice of the appropriate tripod immediately impacts the user friendliness of the de- vice.
- Page 5 MULTICROSS 8 MANUAL Vertical alignment Position the device horizontally as explained (see Horizontal Alignment). Switch on the device and wait until the levelling motors have aligned the device. The device is completely aligned once the central LED light stops blinking and shows green per- manently.
- Page 6 Plumb beam Once one vertical line is switched on, the device also projects a plumb beam (7). The cross on the ceiling and the plumb beam form a perfect plumb line. The plumb beam can help you to position the vertical line in an easy way or to lay out right angles.
- Page 7 MULTICROSS 8 MANUAL Remark: ∙ Once the slope function is active, the device does not align anymore. ∙ Never lay out right corners with the slope function switched on. Once the slope function is switched on, the green lights next to the button “H” (10) and “V”...
-
Page 8: Limits Of Use
∙ Use of products with obviously recog- in hazardous areas, or in close proximity ∙ To inform FUTECH immediately if the nizable damages or defects. to electrical installations or similar sit- product and the application becomes ∙... - Page 9 MULTICROSS 8 MANUAL HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...
-
Page 10: Laser Classification
ACCURACY CONTROL environmental contamination. ∙ special warning signs in the laser By disposing of the product irrespon- working area Monitor horizontal levelling sibly you may enable unauthorized if used and operated as defined in this user ∙ Choose a room ±10 m long persons to use it in contravention of manual due to the low eye hazard level. -
Page 11: Technical Specifications
MULTICROSS 8 MANUAL TECHNICAL SPECIFICATIONS If your instrument does not reach the re- quired tolerance, it should be returned accuracy ± 1mm / 10m to your service centre or to your reseller range with receiver 2x 50m for service. Repairs carried out by unau- levelling range ±...
