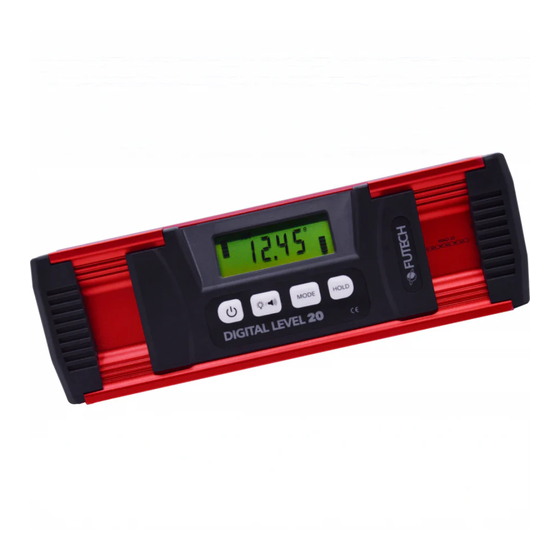

- Page 1 USER EN ENGLISH MANUAL 906D-20 DIGITAL LEVEL 20CM Manual in your language? Check the back cover...
- Page 2 OVERVIEW DEVICE SCREEN 01 Power button ON/OFF Incremental measurement (INC) 02 LIGHT/SOUND button Absolute measurement (ABS) 03 MODE button in/ft measuring unit 04 HOLD button D mm/m measuring unit 05 LCD display % measuring unit 06 Battery cover Retaining measurement G Degrees Battery indicator Backlight indicator...
-
Page 3: First Time Usage
SAFETY Please read the complete safety instructions in UNITS the booklet delivered with this device. This unit can display slope values in 3 different when the product won’t be used for a long time, units: degrees (°), millimeter per meter (mm/m) extract the batteries. -
Page 4: Levelling The Device
The value shown is the difference between the 0.05° ~ 1.00° current level and the calibrated horizontal value. (INC) 1.05° ~ 2.00° INCREMENTAL LEVEL MODE The device measures the slope relative to a zero-slope selected by the user. 2.05° ~ 3.00° The zero-slope is selected as follows: ·... -
Page 5: Sound & Notification
SOUND NOTIFICATION HOLD button [04] simultaneously. Sound notifications can be used for work in case · You hear a beep sound as confirmation and the you are not able to look at the LCD display. LCD display [05] shows “-1-”. This means the device entered the calibration mode. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS 906D-20 DIGITAL LEVEL 20CM Precision 0°: 0,5° / rest: 0,1° Protection IP67 Magnetic Resolution 1 mm/m – 0,05° Optional units ° - mm/m - % Measurement range 4 x 90° Batteries 3x AAA Battery life >100 hours (no backlight/sound) - Page 7 DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 906D-20 Digital level 20cm is in conformity with the standards -EN 61326-1:2013 -EN 61326-2-2:2013 following the provisions of Directive(s) 2014/30/EU Lier, Belgium, March 30, 2023 Patrick Waûters Potential misprints are reserved.
- Page 8 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
