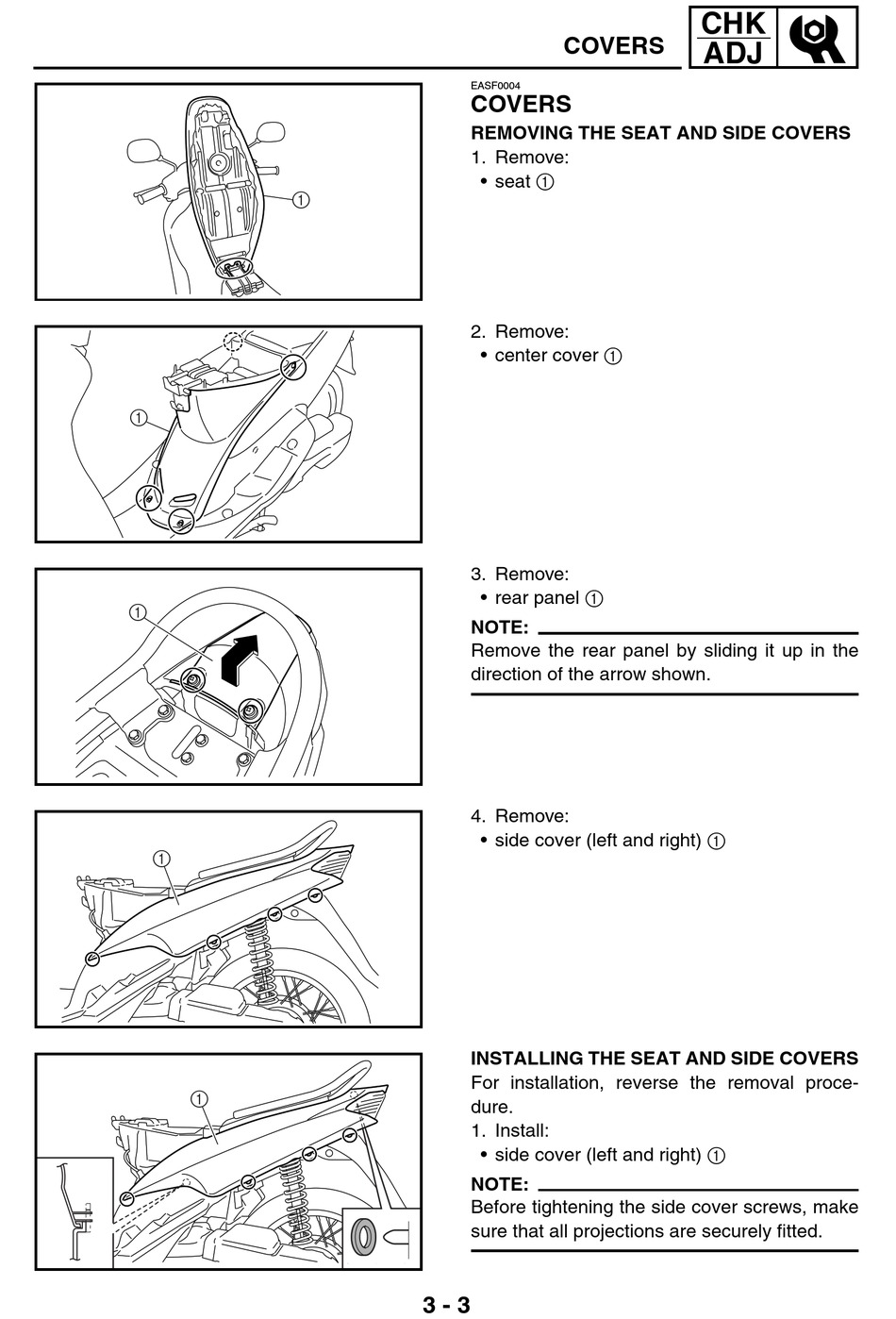

COVERS

EASF0004
COVERS

REMOVING THE SEAT AND SIDE COVERS

1. Remove:
• seat 1
2. Remove:
• center cover 1
3. Remove:
• rear panel 1
NOTE:
Remove the rear panel by sliding it up in the
direction of the arrow shown.
4. Remove:
• side cover (left and right) 1

INSTALLING THE SEAT AND SIDE COVERS

For installation, reverse the removal proce-
dure.
1. Install:
• side cover (left and right) 1
NOTE:
Before tightening the side cover screws, make
sure that all projections are securely fitted.
