UG-274

EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The EVAL-AD5252SDZ evaluation kit includes evaluation
board software provided on a CD. The software is compatible
with Windows® XP, Windows Vista, and Windows 7 (both 32
and 64 bits).
Install the software before connecting the
port of the PC to ensure that the SDP board is recognized when
it is connected to the PC.
1. Start the Windows operating system and insert the CD.
2. The installation software must open automatically. If it
does not, run the setup.exe file from the CD.
3. After installation is completed, power up the evaluation
board as described in the Power Supplies section.
4. Plug the EVAL-AD5252SDZ into the SDP board and the SDP
board into the PC using the USB cable included in the box.
5. When the software detects the evaluation board, follow the
instructions that appear to finalize the installation.
To uninstall the program, click Start > Control Panel > Add or
Remove Programs > AD5252 Eval Board.
SDP board to the USB

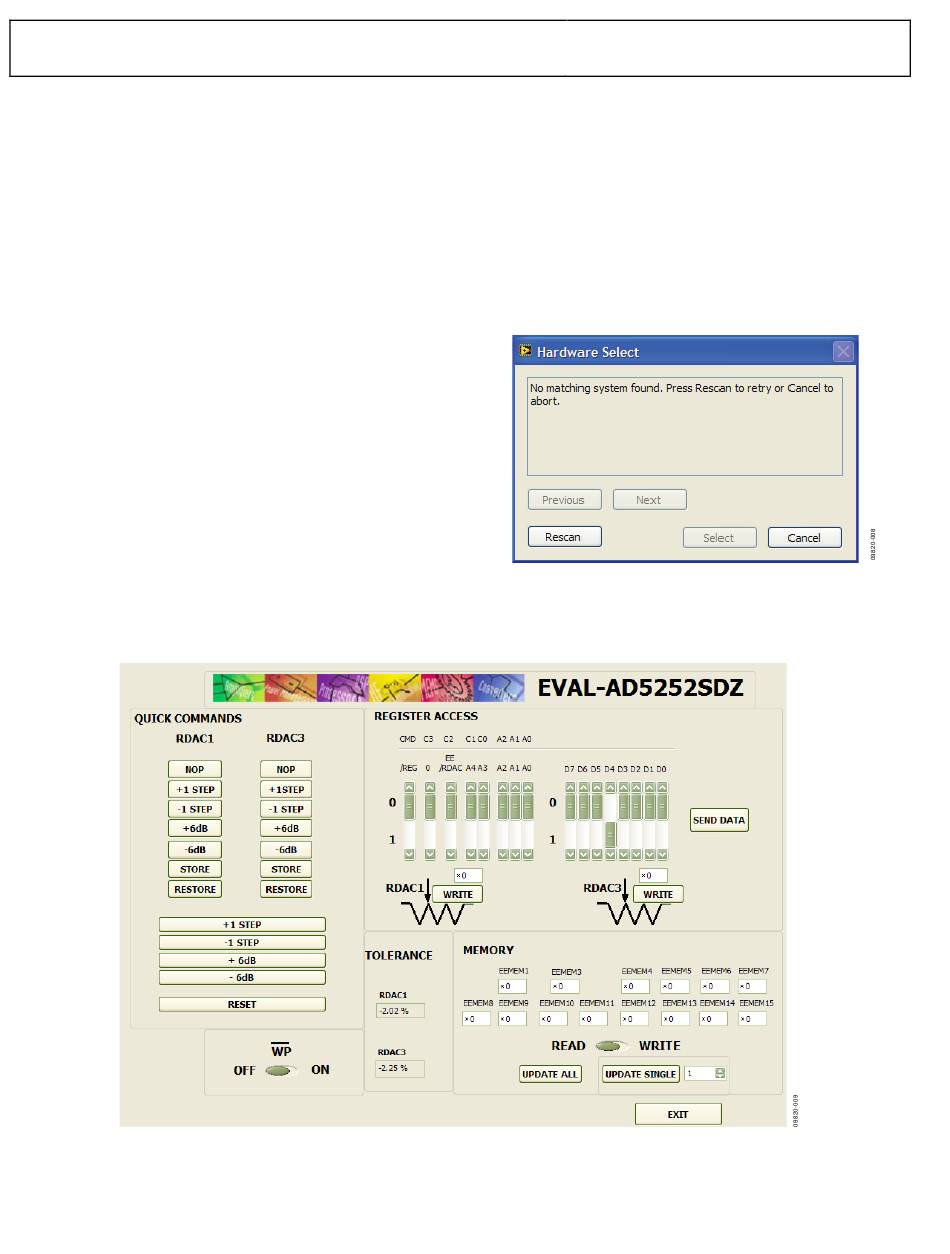

Figure 9. EVAL-AD5252SDZ Evaluation Board Software Main Window
Rev. 0 | Page 6 of 16
Evaluation Board User Guide

RUNNING THE SOFTWARE

To run the evaluation board software, do the following:
1. Click Start > All Programs > Analog Devices > AD5252
> AD5252 Eval Board.
2. If the SDP board is not connected to the USB port when
the software is launched, a connectivity error is displayed
(see Figure 8). Connect the evaluation board to the USB
port of the PC, wait a few seconds, click Rescan, and follow
the instructions.
Figure 8. Pop-Up Window Error
The main window of the EVAL-AD5252SDZ evaluation
software then opens, as shown in Figure 9.
