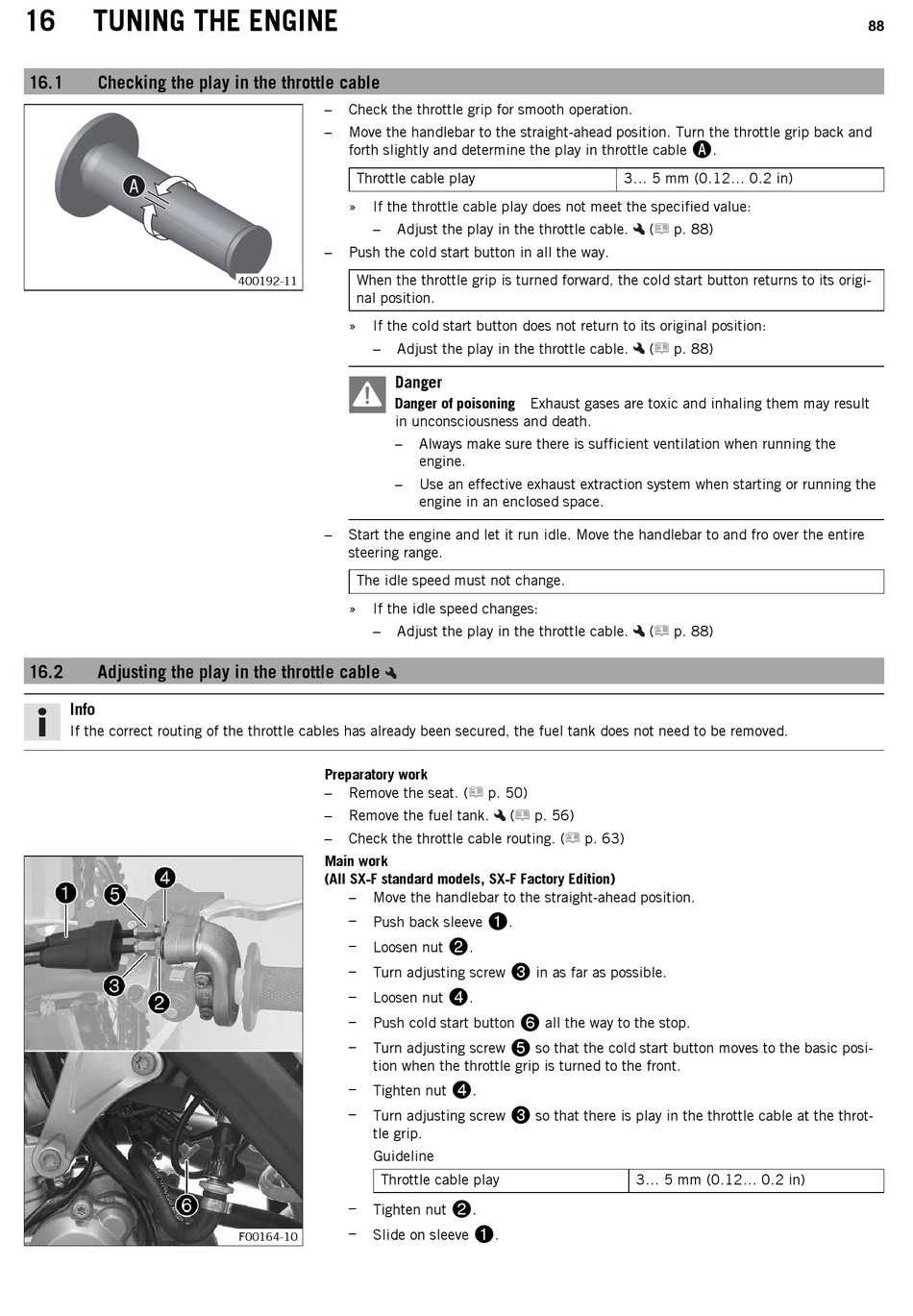

TUNING THE ENGINE

16.1

Checking the play in the throttle cable

16.2

Adjusting the play in the throttle cable

Info
If the correct routing of the throttle cables has already been secured, the fuel tank does not need to be removed.
–
Check the throttle grip for smooth operation.
–
Move the handlebar to the straight-ahead position. Turn the throttle grip back and
forth slightly and determine the play in throttle cable
Throttle cable play
» If the throttle cable play does not meet the specified value:
–
Adjust the play in the throttle cable.
–
Push the cold start button in all the way.
When the throttle grip is turned forward, the cold start button returns to its origi-
400192-11
nal position.
» If the cold start button does not return to its original position:
–
Adjust the play in the throttle cable.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result
in unconsciousness and death.
–
–
–
Start the engine and let it run idle. Move the handlebar to and fro over the entire
steering range.
The idle speed must not change.
» If the idle speed changes:
–
Adjust the play in the throttle cable.
Preparatory work
–
Remove the seat. (
–
Remove the fuel tank.
–
Check the throttle cable routing. (
Main work
(All SX‑F standard models, SX‑F Factory Edition)
–
Move the handlebar to the straight-ahead position.
–
Push back sleeve
–
Loosen nut
–
Turn adjusting screw
–
Loosen nut
–
Push cold start button
–
Turn adjusting screw
tion when the throttle grip is turned to the front.
–
Tighten nut
–
Turn adjusting screw
tle grip.
Guideline
Throttle cable play
–
Tighten nut
–
Slide on sleeve
F00164-10
Always make sure there is sufficient ventilation when running the
engine.
Use an effective exhaust extraction system when starting or running the
engine in an enclosed space.
p. 50)
( p. 56)
p. 63)
1
.
2
.
3
in as far as possible.
4
.
6
all the way to the stop.
5
so that the cold start button moves to the basic posi-
4
.
3
so that there is play in the throttle cable at the throt-
2
.
1
.
A
.
3... 5 mm (0.12... 0.2 in)
( p. 88)
( p. 88)
( p. 88)
3... 5 mm (0.12... 0.2 in)
