Flowmeter Proline 200
5.2
Connecting the measuring device
NOTICE
Limitation of electrical safety due to incorrect connection!
‣
Have electrical connection work carried out by appropriately trained specialists only.
‣
Observe applicable federal/national installation codes and regulations.
‣
Comply with local workplace safety regulations.
‣
Always connect the protective ground cable before connecting additional cables.
‣
For use in potentially explosive atmospheres, observe the information in the device-specific
Ex documentation.
5.2.1

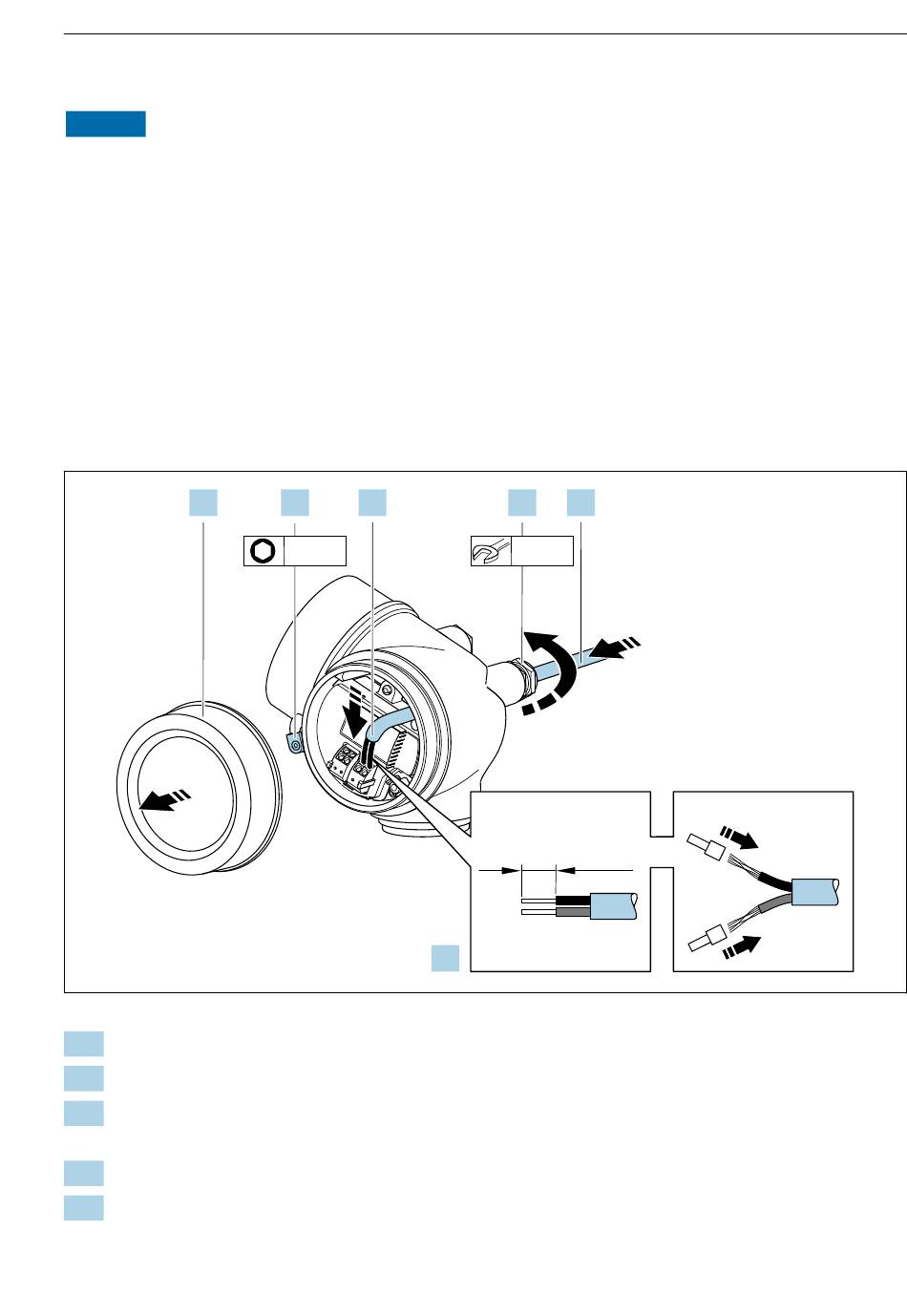

Connecting the compact version
Connecting the transmitter
Connection via terminals
2.
1.
Loosen the securing clamp of the connection compartment cover.
2.
Unscrew the connection compartment cover.
3.
Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4.
Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
5.
Connect cable in accordance with terminal assignment→ 15..
Endress+Hauser
1.
5.
3 mm
4.
6.
3.
20 mm
10 (0.4)
mm (in)
Electrical connection
A0032239
19
