Connecting the transmitter

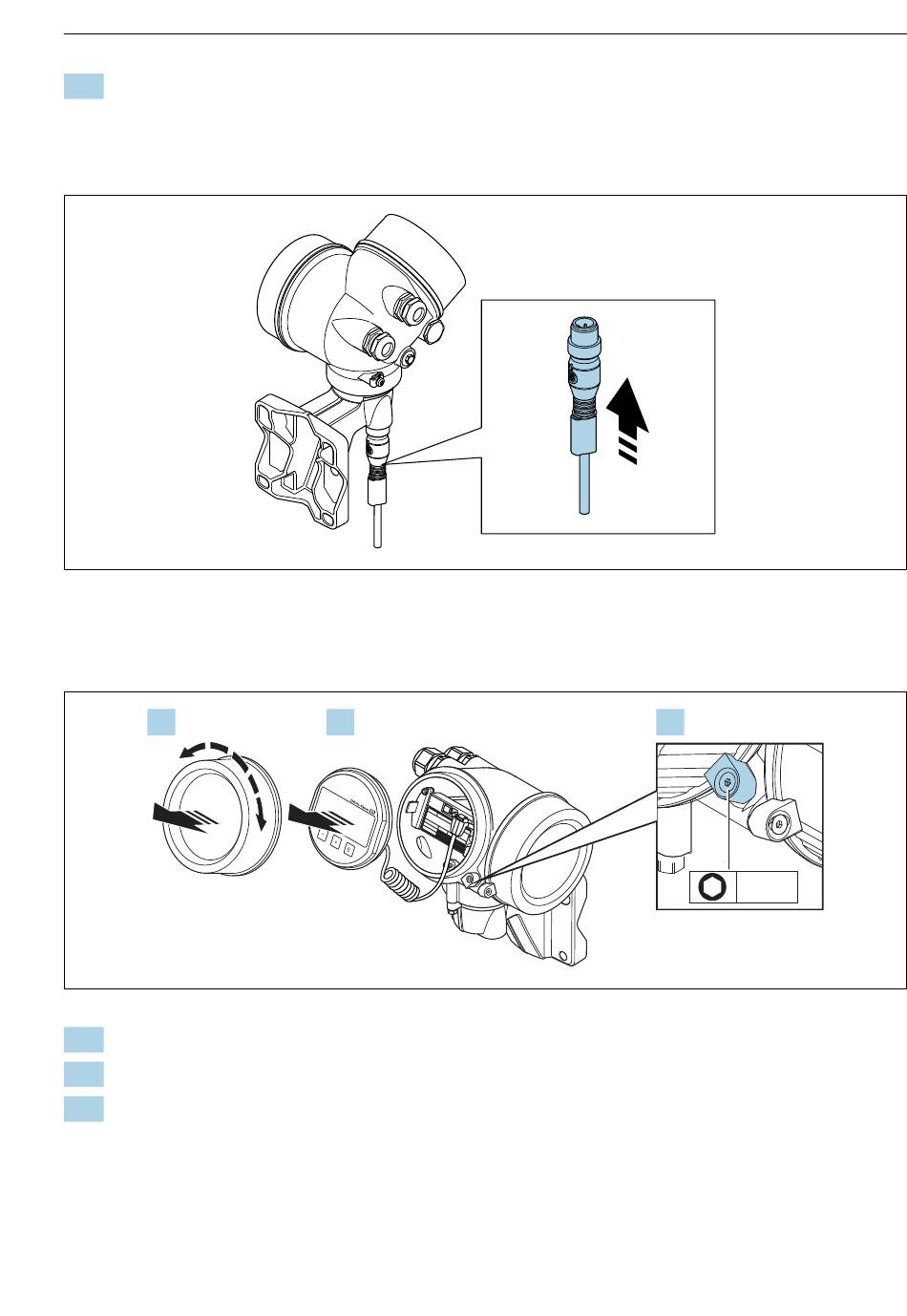

Connecting transmitter via plug
‣
Connect the plug.
Connecting transmitter via terminals
2.
1.
Loosen the securing clamp of the electronics compartment cover.
2.
Unscrew the electronics compartment cover.
3.
Pull out the display module with a gentle rotational movement. To make it easier to
access the lock switch, attach the display module to the edge of the electronics
compartment.
Endress+Hauser
3.
Electrical connection
1.
3 mm
A0034172
A0034173
23
