Flowmeter Proline 200
4.2

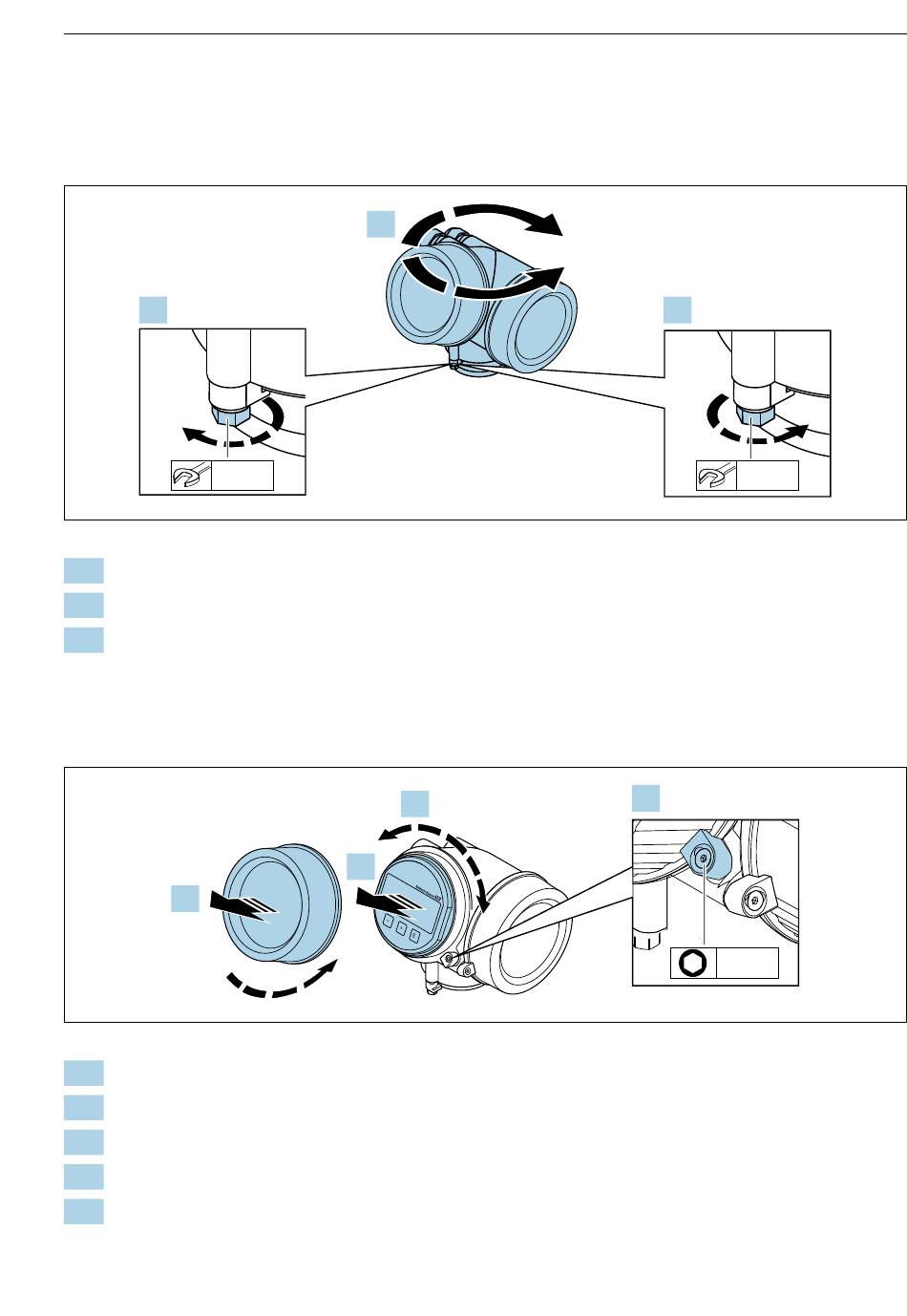

Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.
1.
8 mm
1.
Release the fixing screw.
2.
Turn the housing to the desired position.
3.
Firmly tighten the securing screw.
4.3
Turning the display module
The display module can be turned to optimize display readability and operability.
2.
1.
Loosen the securing clamp of the electronics compartment cover using an Allen key.
2.
Unscrew cover of the electronics compartment from the transmitter housing.
3.
Optional: pull out the display module with a gentle rotational movement.
4.
Turn the display module to the desired position: max. 8 × 45° in every direction.
5.
Without display module pulled out:
Allow display module to engage at desired position.
Endress+Hauser
2.
4.
3.
max. 350°
3.
1.
1
3 mm
Installation
8 mm
A0032242
A0032238
11
