Flowmeter Proline 200
1
8

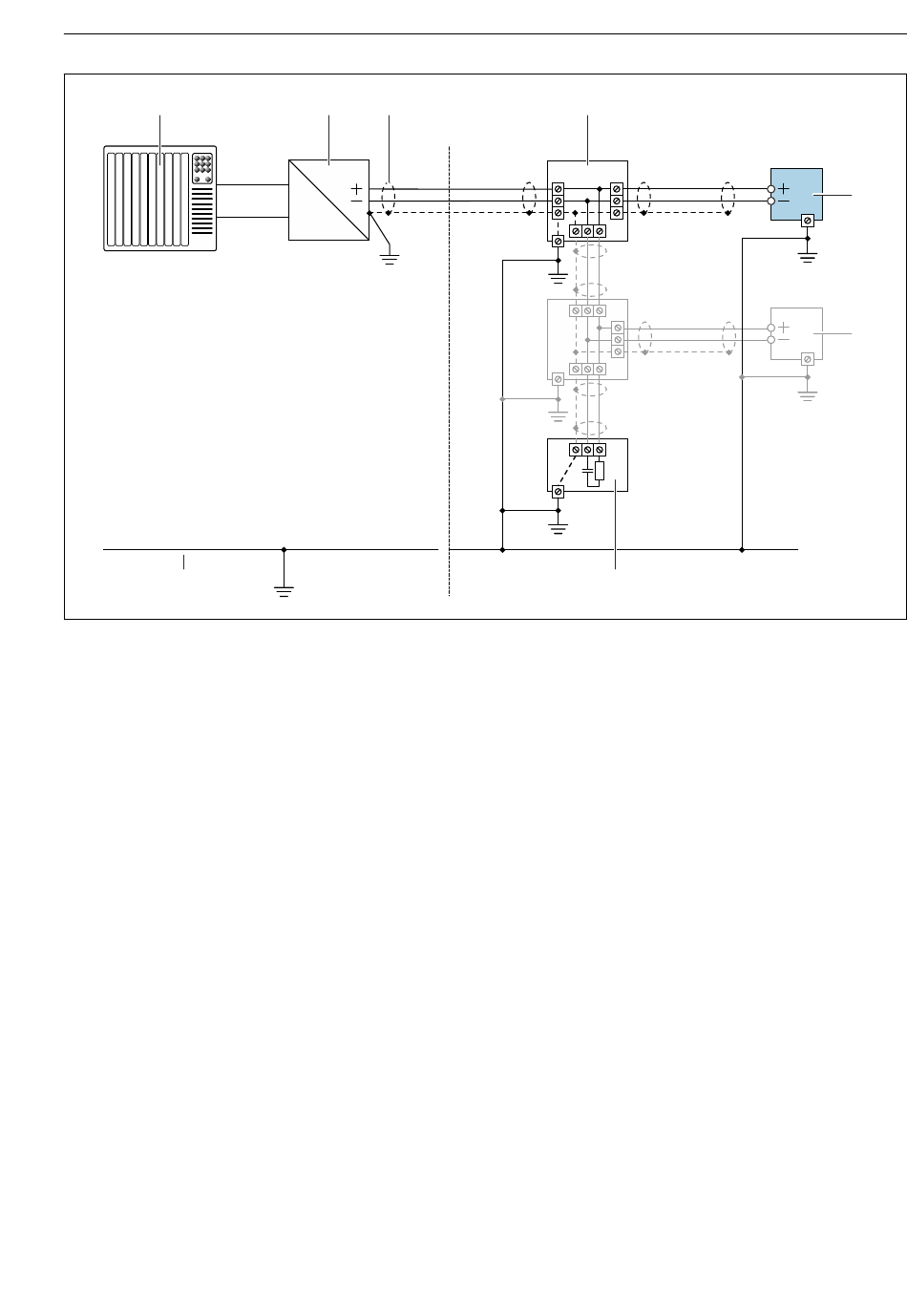

 3 Connection example for FOUNDATION Fieldbus
1 Control system (e.g. PLC)
2 Power conditioner (FOUNDATION Fieldbus)
3 Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;
observe cable specifications
4 T-box
5 Measuring device
6 Local grounding
7 Bus terminator
8 Potential equalization conductor
5.1.7 Requirements for the supply unit
Supply voltage
Transmitter
An external power supply is required for each output.
Endress+Hauser
2 3
6
4
6
6
6
7
Electrical connection
5
6
5
6
A0028768
