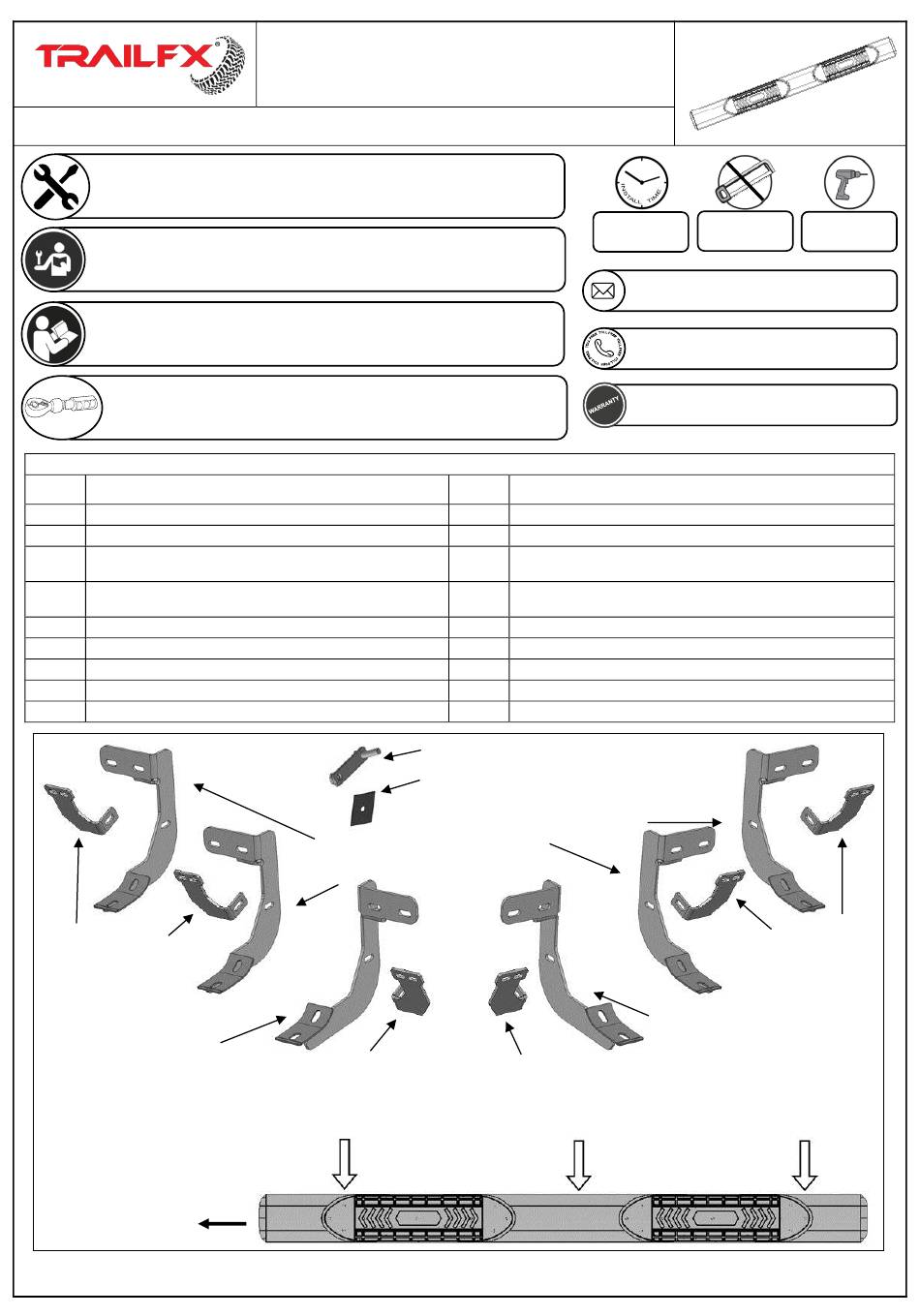

TrailFX A8243S/B Manual

6" oval nerf bar
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Fits:
2009-Current
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
Driver/left Front, Passenger Center and Rear
3
Mounting Brackets
Passenger/right Front, Driver Center and Rear
3
Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
18
8mm-1.25 x 30 Hex Bolts
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right Front
Bracket (same as driver
center and rear brackets)
Arrows indicate location of
threaded inserts in bottom
of Sidebars to help identify
front end of tube
Page 1 of 7
6" Oval Nerf Bar
Part No. A8243S /B
Dodge Ram 1500 Quad Cab
Part Description
Passenger/Right Rear and
Center Mounting Brackets
Passenger/Right Front
Support Bracket (same as
driver center and rear
brackets)
Front
PARTS LIST:
Qty
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front Support
Bracket (same as passenger
center and rear brackets)
30-23/64"
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Center and
Rear Support Brackets
Driver/Left Front Mounting
Bracket (same as passenger
center and rear brackets)
28-1/4"
www.TrailFX.com
Drilling May Be
Required
Rev 031418

Advertisement

loading
Need help?

Need help?

Do you have a question about the A8243S/B and is the answer not in the manual?

Questions and answers

Related Manuals for TrailFX A8243S/B

Summary of Contents for TrailFX A8243S/B

  • Page 1 6" Oval Nerf Bar Part No. A8243S /B Fits: 2009-Current Dodge Ram 1500 Quad Cab Cutting Not Drilling May Be 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
  • Page 2 INSTALLATION PROCEDURE: DRILLING MAY BE REQUIRED. Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1). Front (Fig 1) 2009-mid 2015 Driver/Left front mounting location (No factory holes...
  • Page 3 Select the driver side front Mounting Bracket, (Figure 6). NOTE: Driver side front Bracket is same as passenger side center and rear Brackets. Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Figure 7). Do not tighten at this time.
  • Page 4 Next, select the driver side front Support Bracket. Attach the Bracket to the front facing side of the front Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers and (1) 8mm Nylon Lock Nut, (Figure 11). Rotate the Support Bracket to the back of the pinch weld.
  • Page 5 Line up the slots on the Support Brackets with the back of the pinch weld. Mark the location of the slots onto the pinch weld. Drill (2) 1/4” holes through the pinch weld for each Support Bracket. IMPORTANT: Do not drill too close to the bottom edge of the pinch weld.
  • Page 6 Driver Side Installation Pictured 8mm Hex Bolt (2) 8mm Flat Washers 8mm Nylon Lock Nut Rear Rear (Fig 17) Driver/Left rear mounting location (Fig 18) Driver/Left rear Mounting Bracket assembly Front Front (2) 8mm Combo (2) 8mm Combo Hex Bolts...

  • Page 7: Product Care

    Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
