Fits:
2009-2018
Classic)
2010-Current
Diesel models)
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 7 TO 8.5 FOOT POUND FOR
AND 18 TO 20 FOOT POUND FOR M8.
Qty
1
Driver/Left T4 Sidebar
1
Passenger/Right T4 Sidebar
2
Driver/Left Front/ Passenger/Right Rear Bracket
2
Driver/Left Rear/ Passenger/Right Front Bracket
1
Driver/Left Center Bracket
1
Passenger/Right Center Bracket
6
Plastic Covers
12
Plastic Clips
6
8mm x 30mm Bolt Plates
12
8mm x 25mm Combo Bolts
12
8-1.25mm x 30 Hex Bolts
Passenger/right
Center Bracket
Front

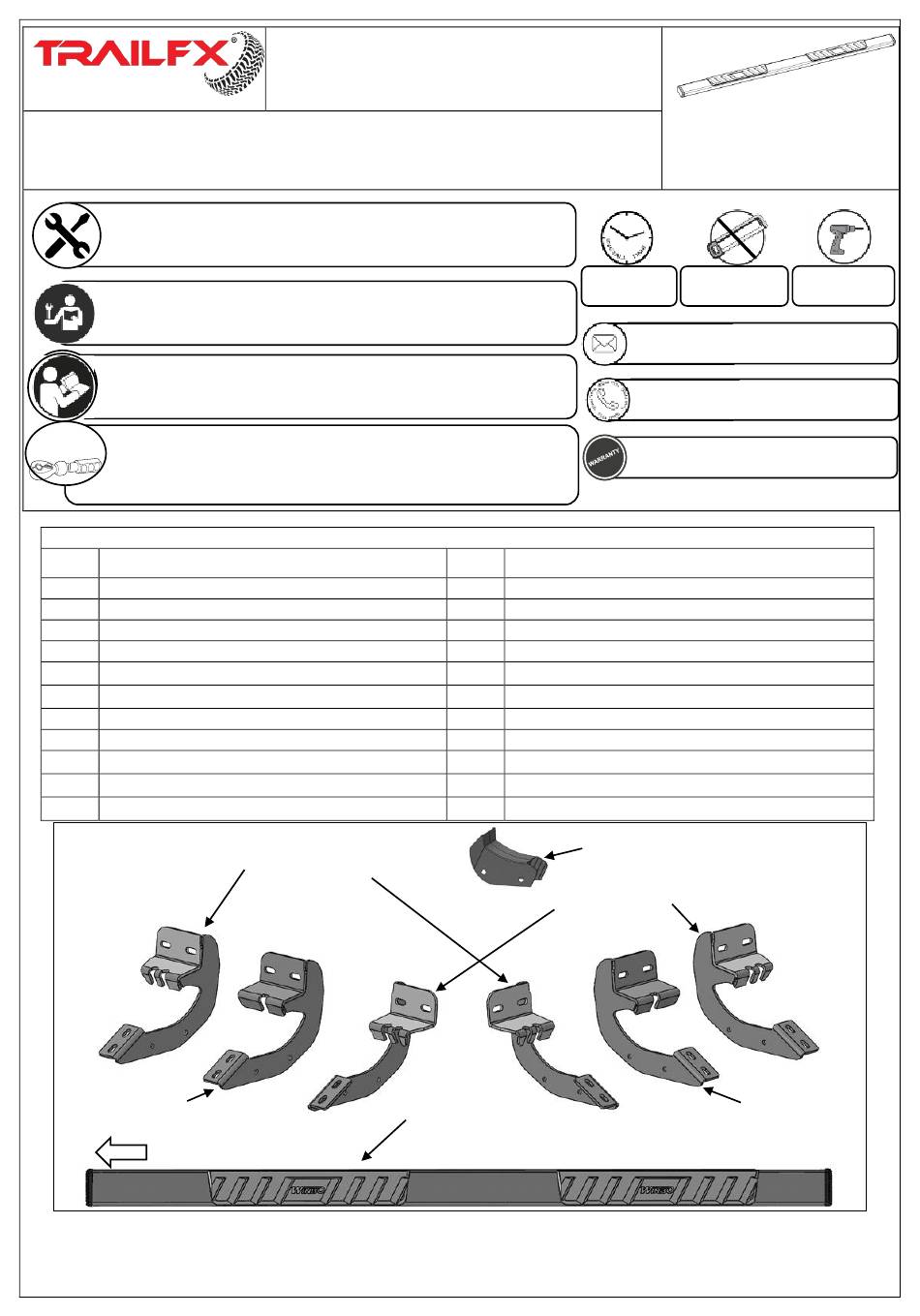

PROCEDURE:
Page 1 of 6
Part No. A4012S/B
Dodge Ram 1500 Crew Cab(Incl. 2019-Current Ram 1500
Dodge Ram 2500/3500 Crew Cab(Excl. Chassis Cab
Part Description
Driver Front &
Passenger Rear
Bracket

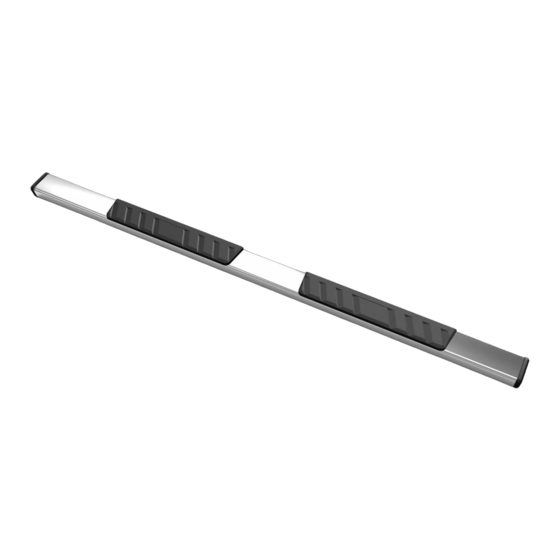

4" Side Bar
PARTS LIST:
Qty
12
8mm x 24mm OD x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Plastic Retainers
10
6mm x 25mm Button Head Bolts
20
6mm x 18mm OD x 1.6mm Flat Washers
10
6mm Flange Nuts
2
16mm x 34mm Spacer Plates
4
16mm x 60mm Spacer Plates
1
4mm Hex Wrench
Passenger Front
& Driver Rear
Bracket
Driver/left
T4 Sidebar
CUTTING NOT
60-180 min
REQUIRED
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
(6) Plastic Covers
Driver/left
Center Bracket
www.TrailFX.com
DRILLING May Be
REQUIRED
Rev R01 110920
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A4012S
Summary of Contents for TrailFX A4012S
- Page 1 4" Side Bar Part No. A4012S/B Fits: 2009-2018 Dodge Ram 1500 Crew Cab(Incl. 2019-Current Ram 1500 Classic) 2010-Current Dodge Ram 2500/3500 Crew Cab(Excl. Chassis Cab Diesel models) CUTTING NOT DRILLING May Be 60-180 min REQUIRED REQUIRED REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 2 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING MAY BE REQUIRED. 2. Starting at the driver front side of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1).
- Page 3 Driver/left Side Installation Pictured (Fig 3) Thread (1) 8mm Hex Bolt into the nut on the plate. Stop when bolt reaches end of nut as pictured (Fig 4) Use the loose Hex Bolt as a handle. Insert the Bolt Plate into the oval hole and feed the threaded end out either factory hex shaped hole.
- Page 4 Driver/left Side Installation Pictured IMPORTANT: 2009-2012 models without holes in pinch weld will require drilling 1/4” holes through pinch weld to attach the bracket. Do complete installation of Sidebars first, level Sidebar before drilling holes for bracket. (2) 8mm Hex Bolts...
- Page 5 Driver/left Side Installation Pictured IMPORTANT: 2009-2012 models without holes in pinch weld will require drilling 1/4” holes through pinch weld to attach the bracket. Do complete installation of Sidebars first, level Sidebar before drilling holes for bracket. Front (Fig 12) Driver/left side center location...
- Page 6 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
