Fits: 2009-Current Dodge Ram 1500 Quad Cab
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver Front Mounting Bracket
1
Passenger Front Mounting Bracket
2
Driver Center/Rear Mounting Brackets
2
Passenger Center/Rear Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right
Front Bracket
Driver/left Side Step
illustrated. Note front step
pad is slightly further away
from front end of tube

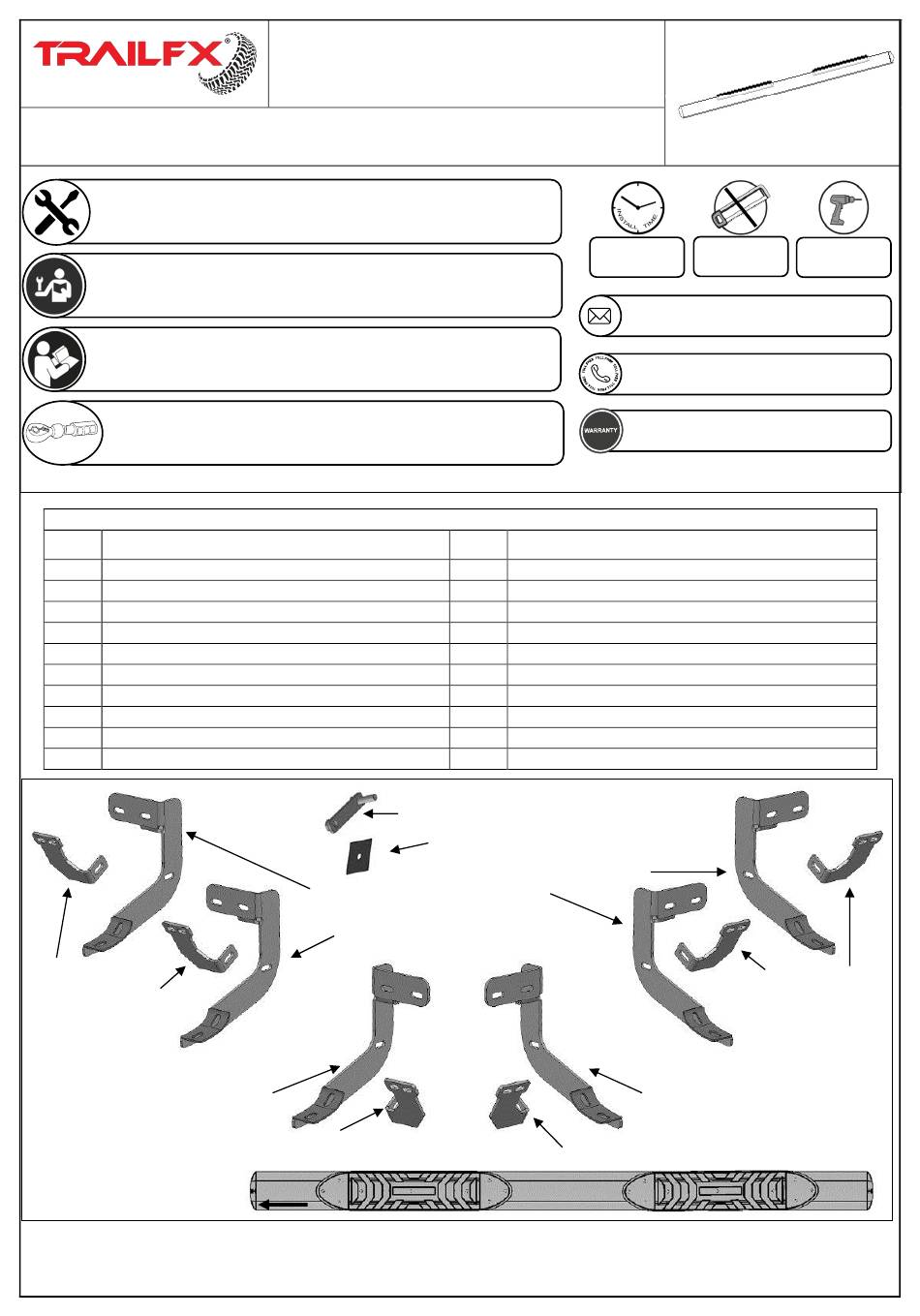

Page 1 of 7

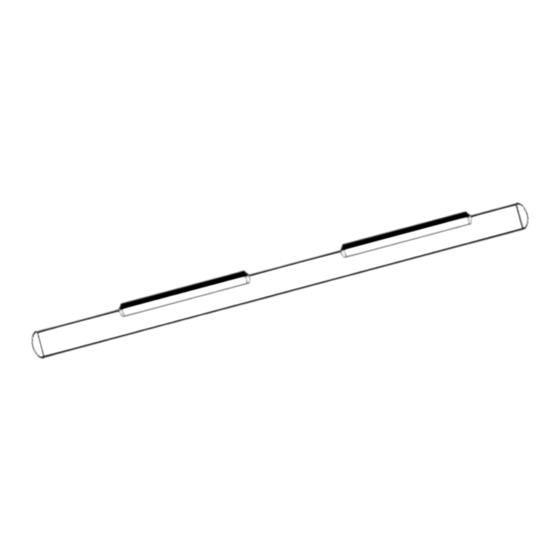

5" Oval Nerf Bar
Part No. A7055S/B
Part Description
Passenger/Right Rear and
Center Mounting Brackets
Passenger/Right Front
Support Bracket
Front
PARTS LIST:
Qty
18
8mm-1.25 x 30 Hex Bolts
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front
Support Bracket
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Center and
Rear Support Brackets
Driver/Left Front
Mounting Bracket
www.TrailFX.com
Drilling
Required
Rev 022418
Advertisement
Related Manuals for TrailFX A7055S
Summary of Contents for TrailFX A7055S
- Page 1 5" Oval Nerf Bar Part No. A7055S/B Fits: 2009-Current Dodge Ram 1500 Quad Cab ASSISTANCE IS RECOMMENDED. Cutting Not Drilling 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE: Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1). Front (Fig 1) 2009-mid 2015 Driver/Left front mounting location (No factory holes...
- Page 3 Select the driver side front Mounting Bracket, (Figure 6). Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Figure 7). Do not tighten at this time.
- Page 4 Next, select the driver side front Support Bracket. Attach the Bracket to the front facing side of the front Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers and (1) 8mm Nylon Lock Nut, (Figure 11). Rotate the Support Bracket to the back of the pinch weld.
- Page 5 Drill the holes toward the outside of the marked slots. Attach each Support Bracket to the pinch weld with (2) 6mm Hex Bolts, (4) 6mm Flat Washers and (2) 6mm Nylon Lock Nuts, (Figures 12, 13, 18—20). Check the Sidebar for level then fully tighten all hardware.
- Page 6 (2) 8mm Combo Hex Bolts Front (Fig 19) Driver/Left front Mounting Brackets Rear (Fig 20) Driver/left center Bracket assembly Installation Complete Page 6 of 7 Rev 022418...
- Page 7 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
